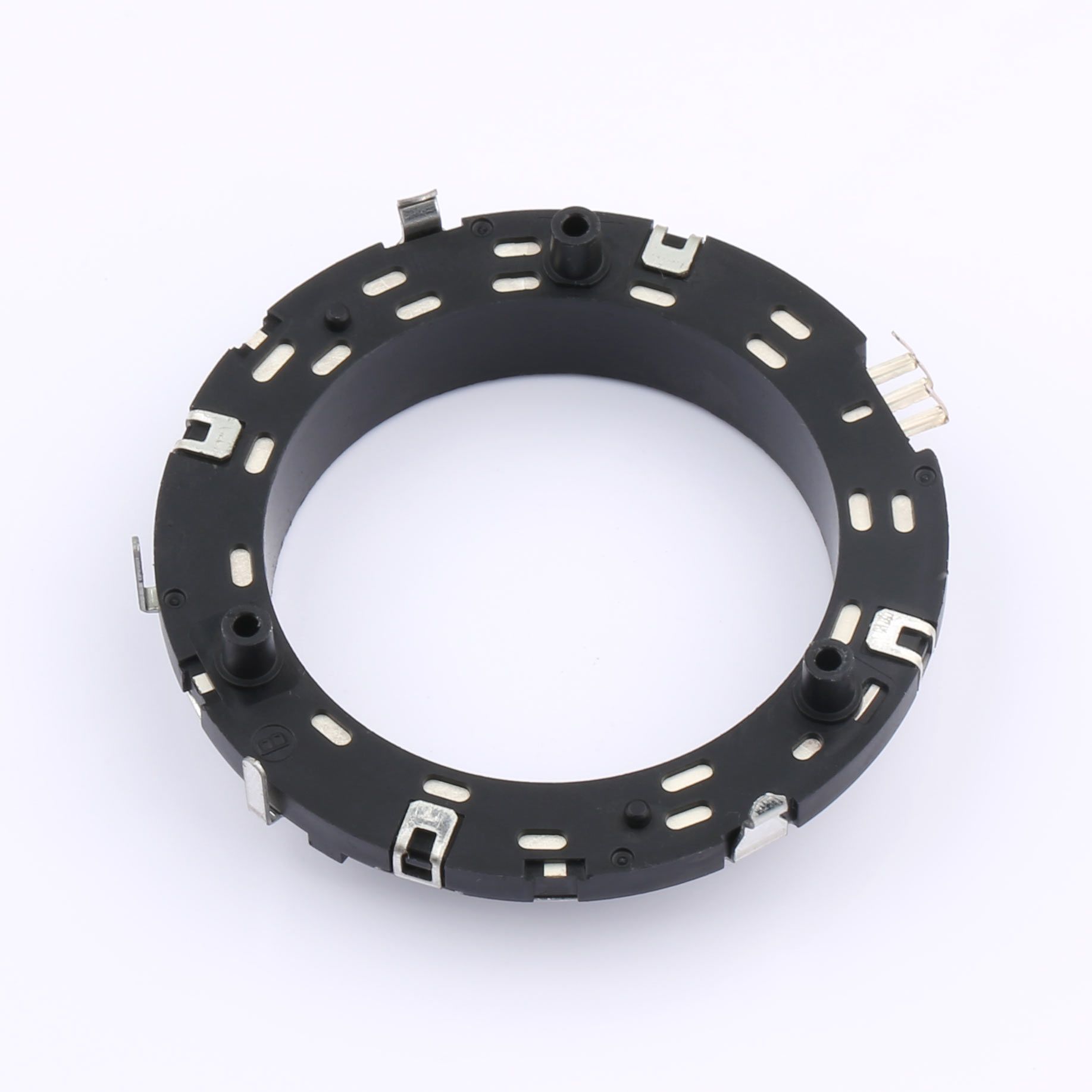

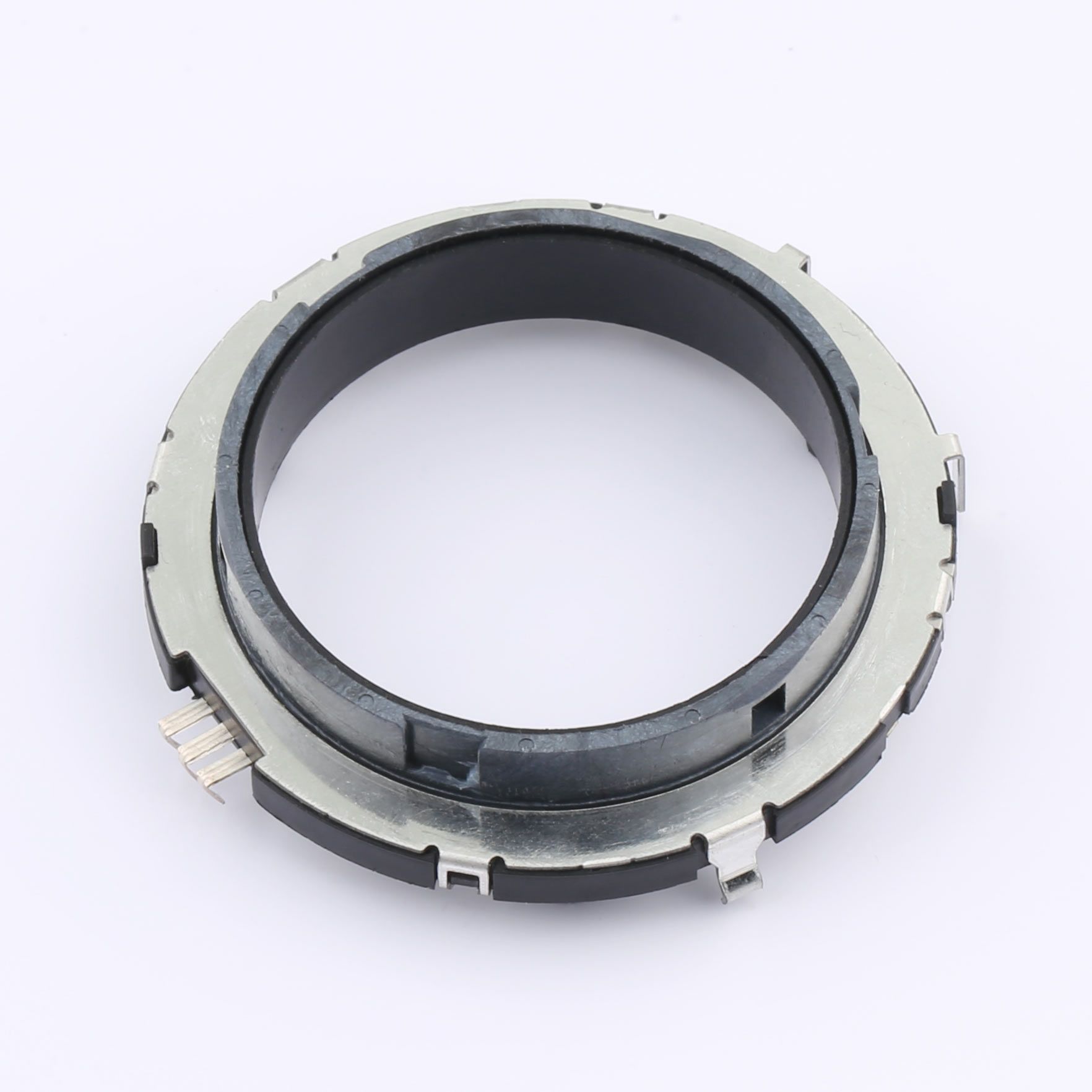

KH-EC561V10T302
Brand: Kinghelm
Model: KH-EC561V10T302
Package Type: SMD
Packaging: Bag
Features
• 56mm Large Size Rotary Encoder
• Thin Low-Profile Design
• SMD Package with Through-Hole Mounting
• Rated Load: 5VDC / 10mA
• Insulation Resistance: ≥100MΩ
• Operating Temperature: -20°C to +80°C
Advantages
• Stable and Robust Structure
• Excellent Insulation Performance
• High Current Carrying Capability
• Space-Saving Low-Profile Design
• Reliable Performance and Long Service Life
Applications
• Industrial Equipment
• Control Panels
• Audio Devices
• Instrumentation
• Large Electronic Systems
• Human-Machine Interface (HMI) Controls
