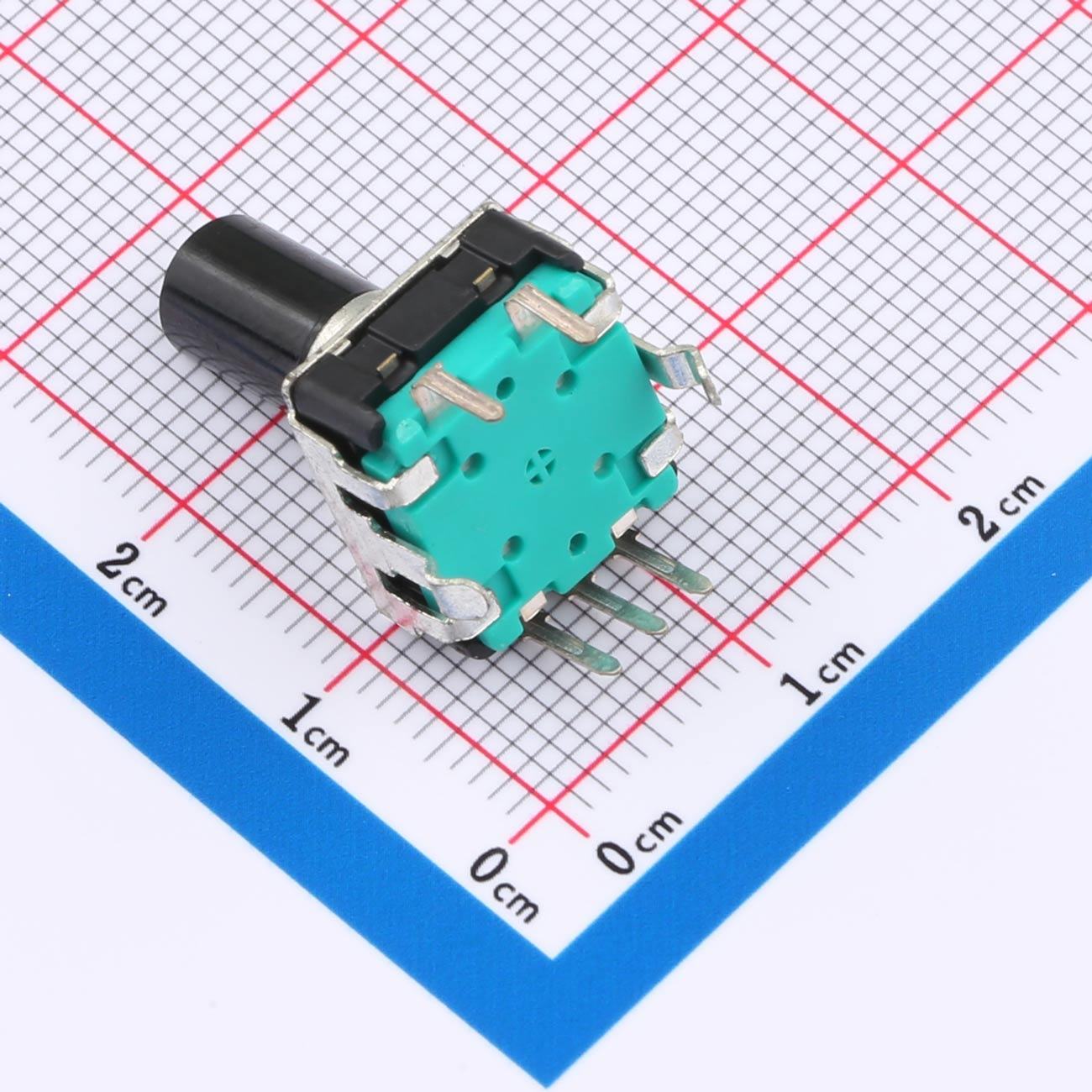

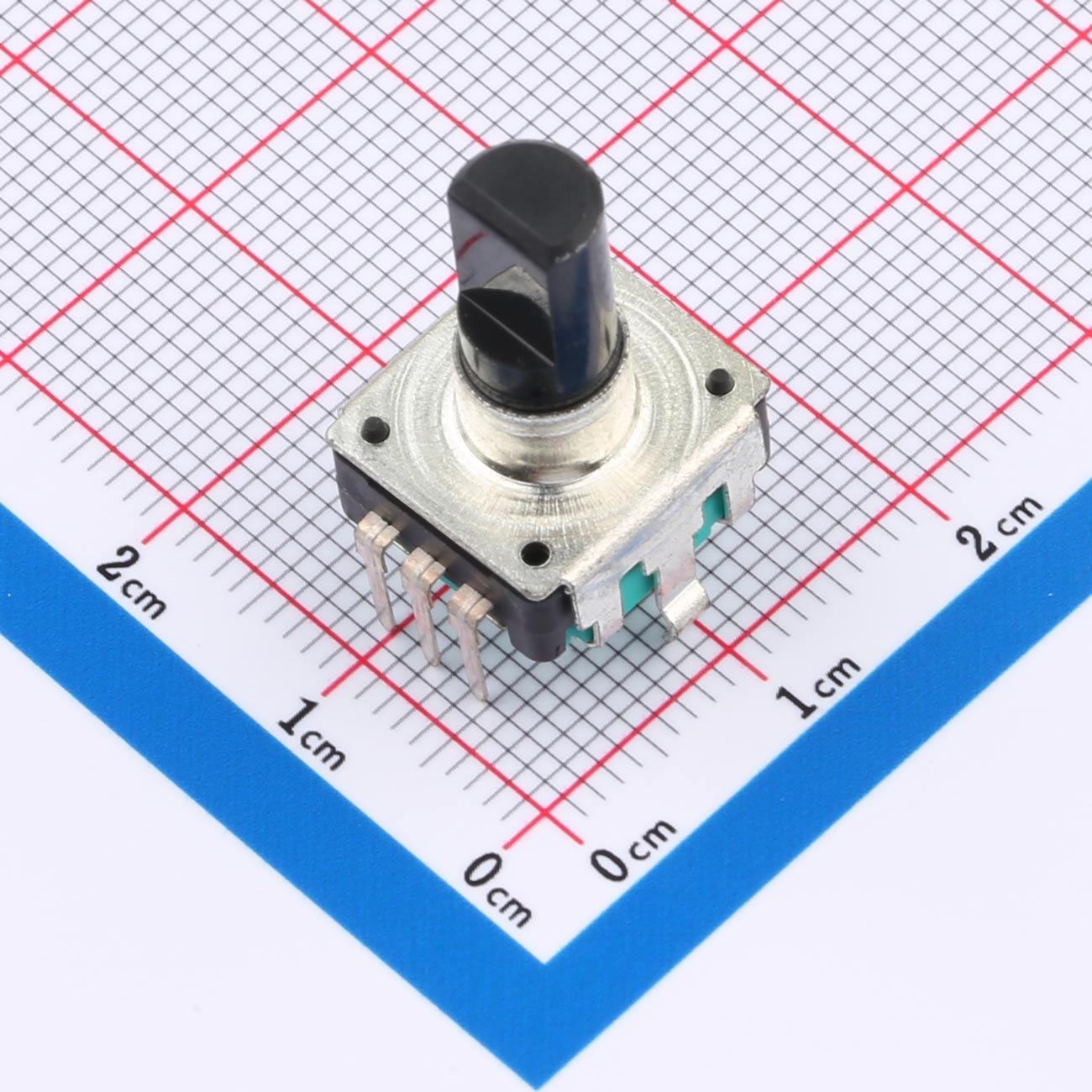

KH-EC122S1V20F241000
Brand: Kinghelm
Model: KH-EC122S1V20F241000
Package Type: SMD
Packaging: Bag
Features
• 12mm Low-Profile Incremental Rotary Encoder
• Thin Compact Design
• SMD Package with Through-Hole Mounting
• Rated Load: 5VDC / 0.5mA
• Contact Resistance: ≤100mΩ
• Insulation Resistance: ≥10MΩ
• Operating Temperature: -10°C to +70°C
Advantages
• Ultra-Thin Space-Saving Structure
• Precise Signal Encoding Performance
• Stable Electrical Parameters
• Reliable Low-Current Operation
• Easy Integration into Compact Devices
Applications
• Slim Electronic Devices
• Temperature Controllers
• Consumer Electronics
• Control Interfaces
• Precision Adjustment Equipment
• Signal Encoding Systems
