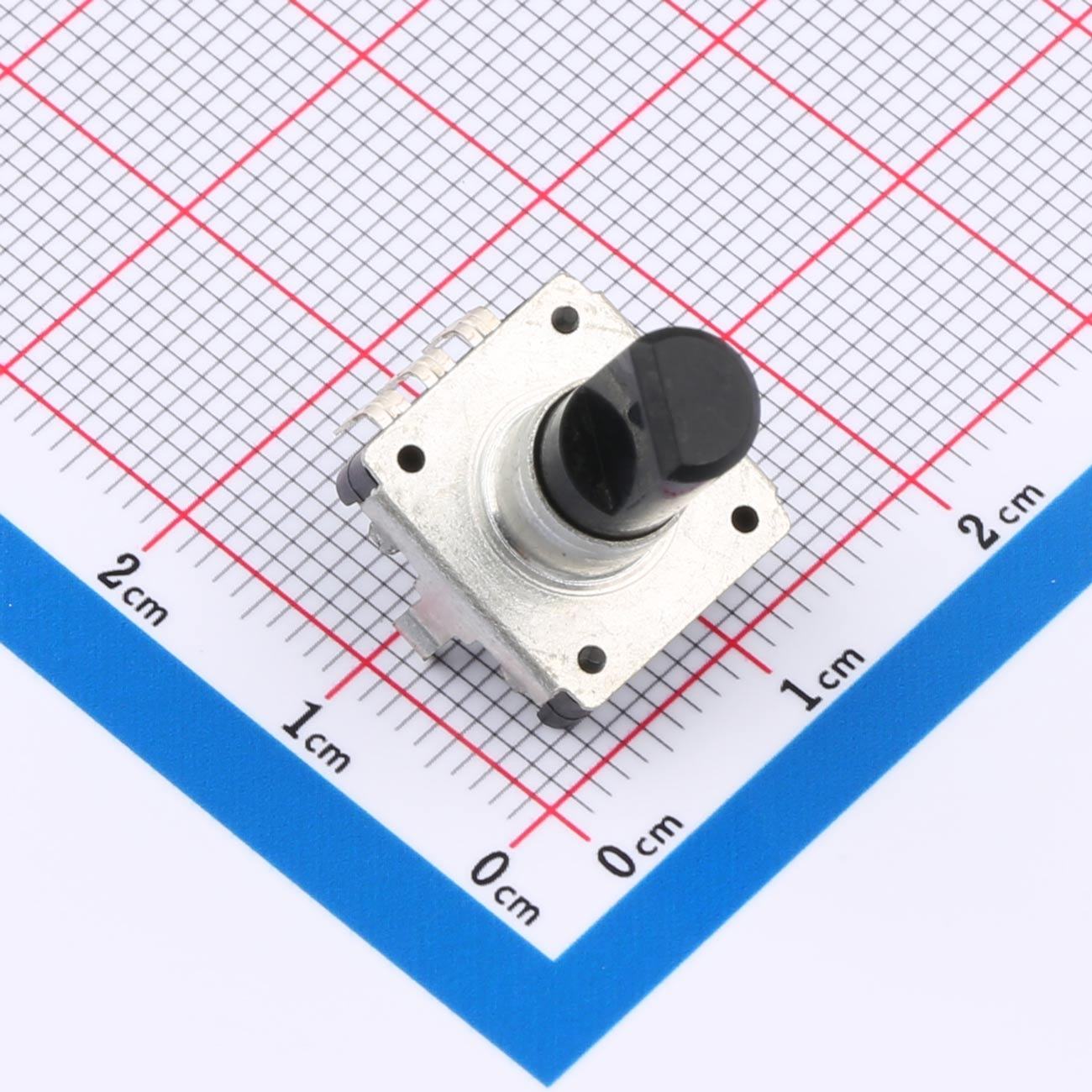

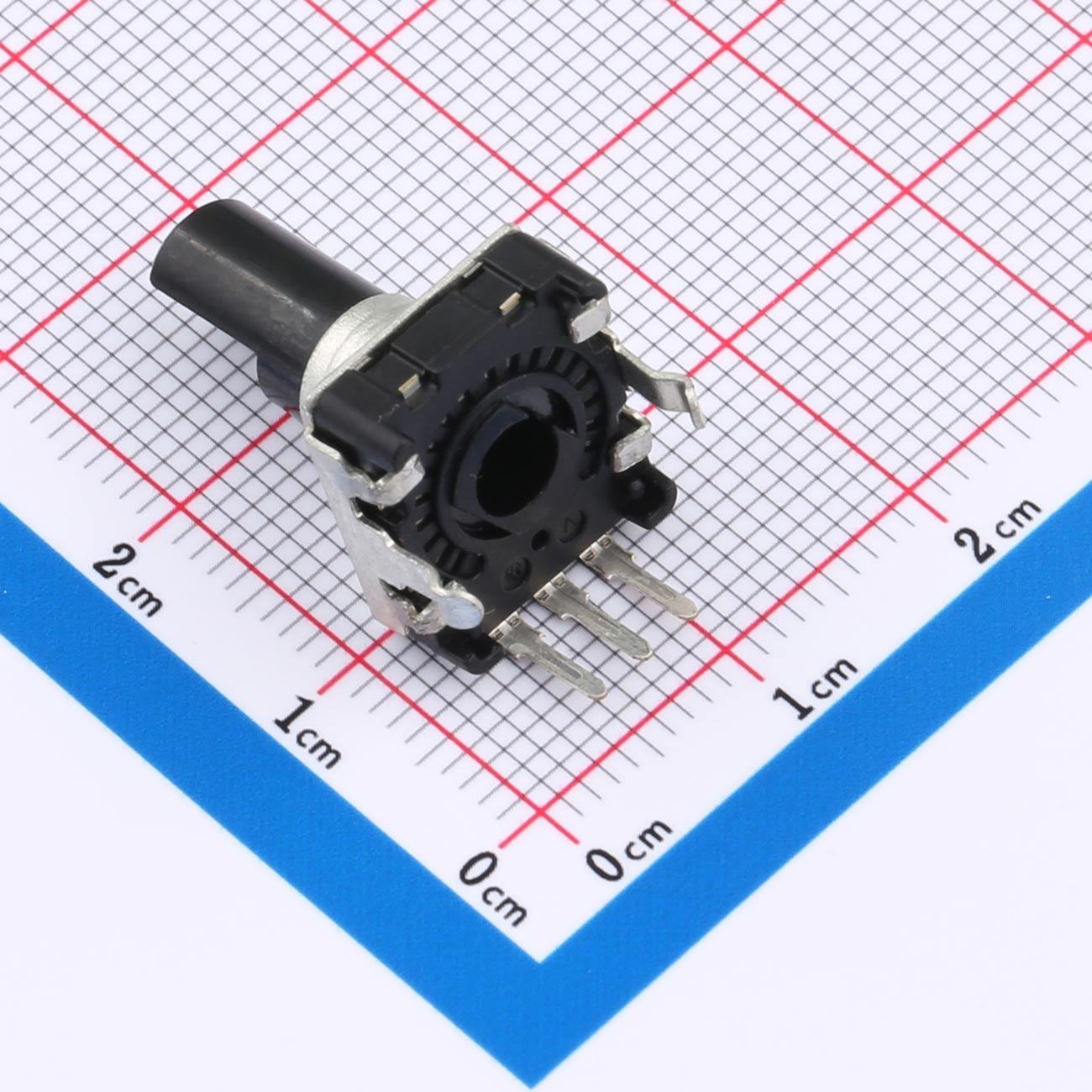

KH-EC1221V20F241000
Brand: Kinghelm
Model: KH-EC1221V20F241000
Package Type: SMD
Packaging: Bag
Features
• 12mm Low-Profile Incremental Rotary Encoder
• Thin and Compact Design
• SMD Package with Through-Hole Mounting
• Rated Load: 5VDC / 0.5mA
• Insulation Resistance: ≥10MΩ
• Operating Temperature: -30°C to +70°C
Advantages
• Space-Saving Structure
• Stable Electrical Performance
• Precise Signal Encoding
• Reliable Low-Current Operation
• Suitable for Compact Devices
Applications
• Slim Electronic Devices
• Control Interfaces
• Consumer Electronics
• Precision Adjustment Equipment
• Signal Encoding Applications
• Small Electronic Systems
