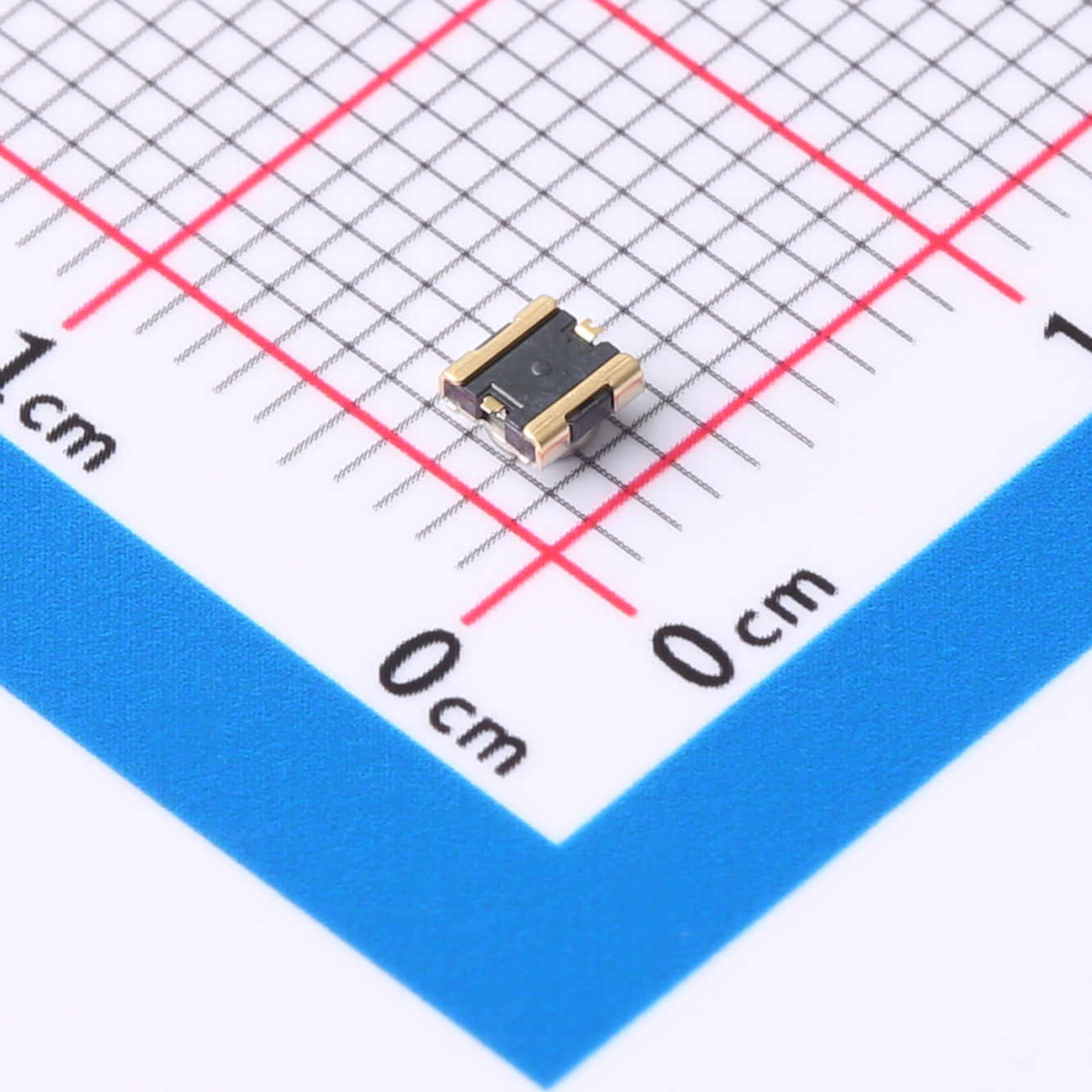

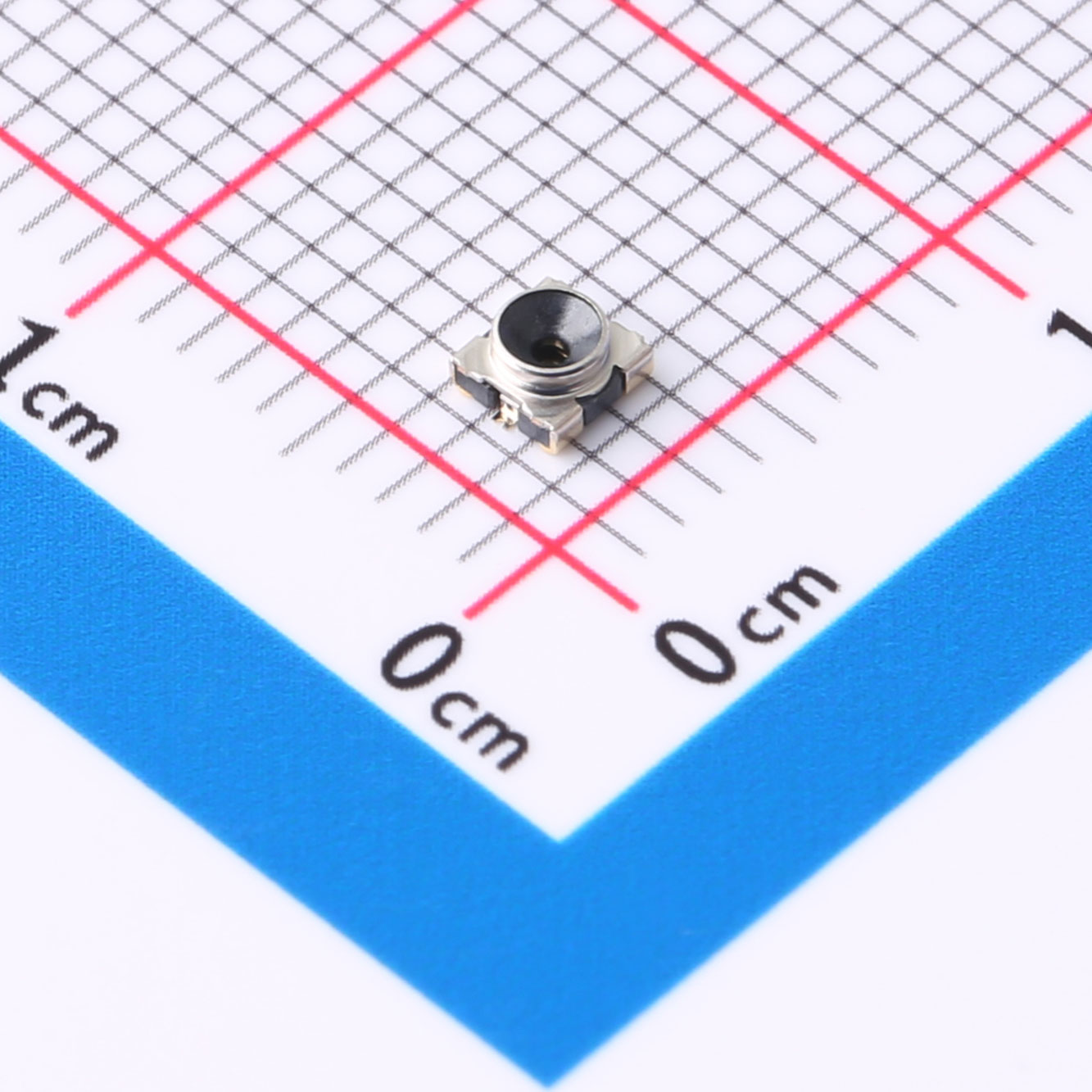

KH-252515-G2.2, RF Coaxial Connector 2 Generation Test Stand
Brand: kinghelm
Manufacturer： KH-252515-G2.2
Package: - Gross Weight: 0.0897
Gross weight of goods: 0.0897 grams (g)
Packing: Taping
Features
- RF coaxial test connector with 252515 package design and 2.2mm pitch
- Designed for high-density and reliable circuit connections
- Operating Frequency Range: DC to 11GHz
- Rated Power: 2W
- Rated Voltage: 250V AC
- Operating Temperature: -40℃ to +85℃
- Low contact resistance with stable electrical performance
- Compact structure with precise pin arrangement for accurate connection
Advantages
- High-frequency performance: Supports DC–11GHz frequency range for reliable RF signal transmission and testing applications.
- Compact design: The 2.2mm pitch package saves PCB space and enables high-density circuit layouts.
- Stable and reliable connection: Low contact resistance and excellent mechanical durability ensure long-term performance.
- Reduced signal interference: Optimized structure helps minimize signal loss, interference, and crosstalk.
- Wide operating capability: Maintains stable performance under a wide temperature range from -40℃ to +85℃.
Applications
- RF module testing and measurement
- Wireless communication equipment
- Antenna system testing
- High-frequency circuit debugging
- 5G communication and RF applications
- Compact electronic devices requiring reliable RF connections
