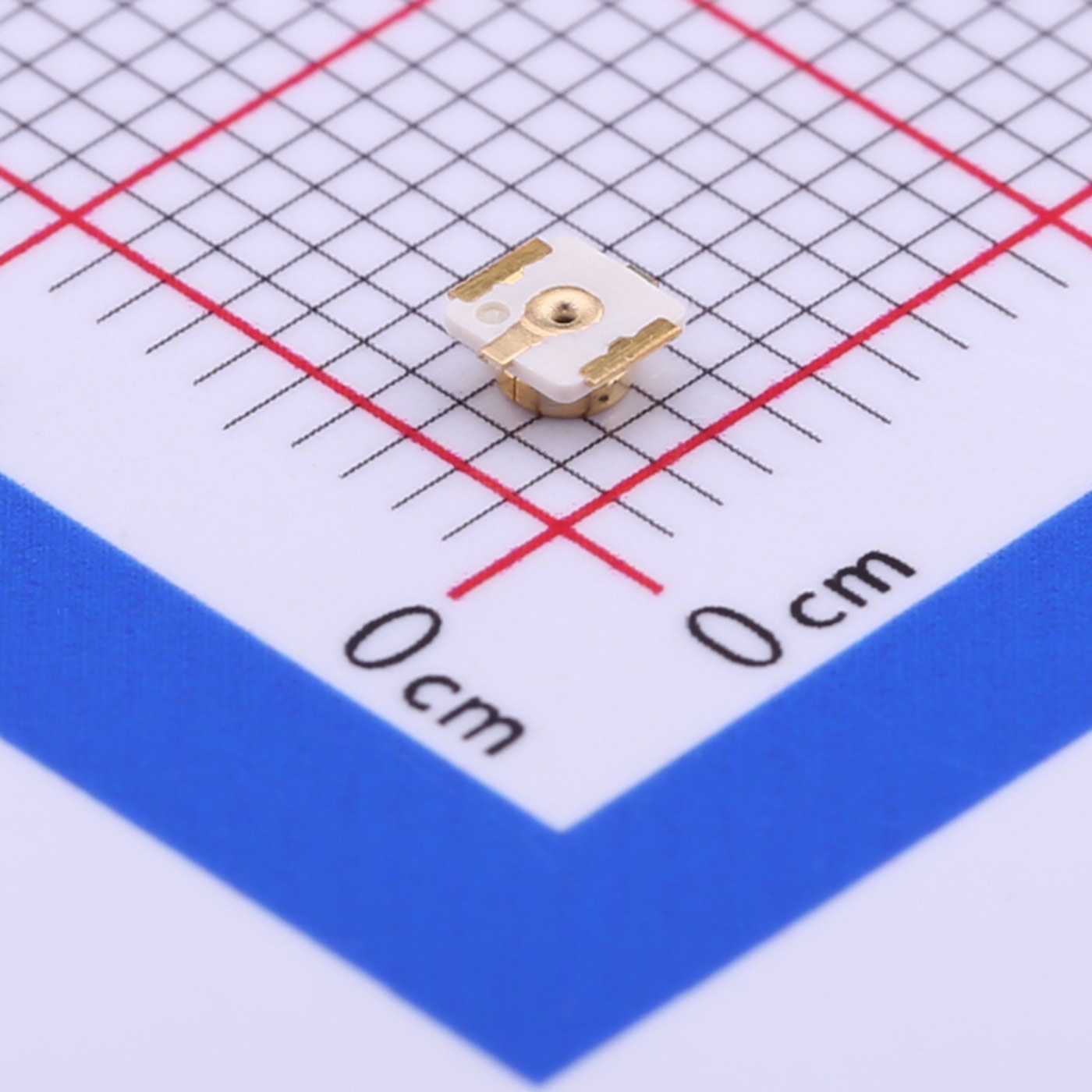

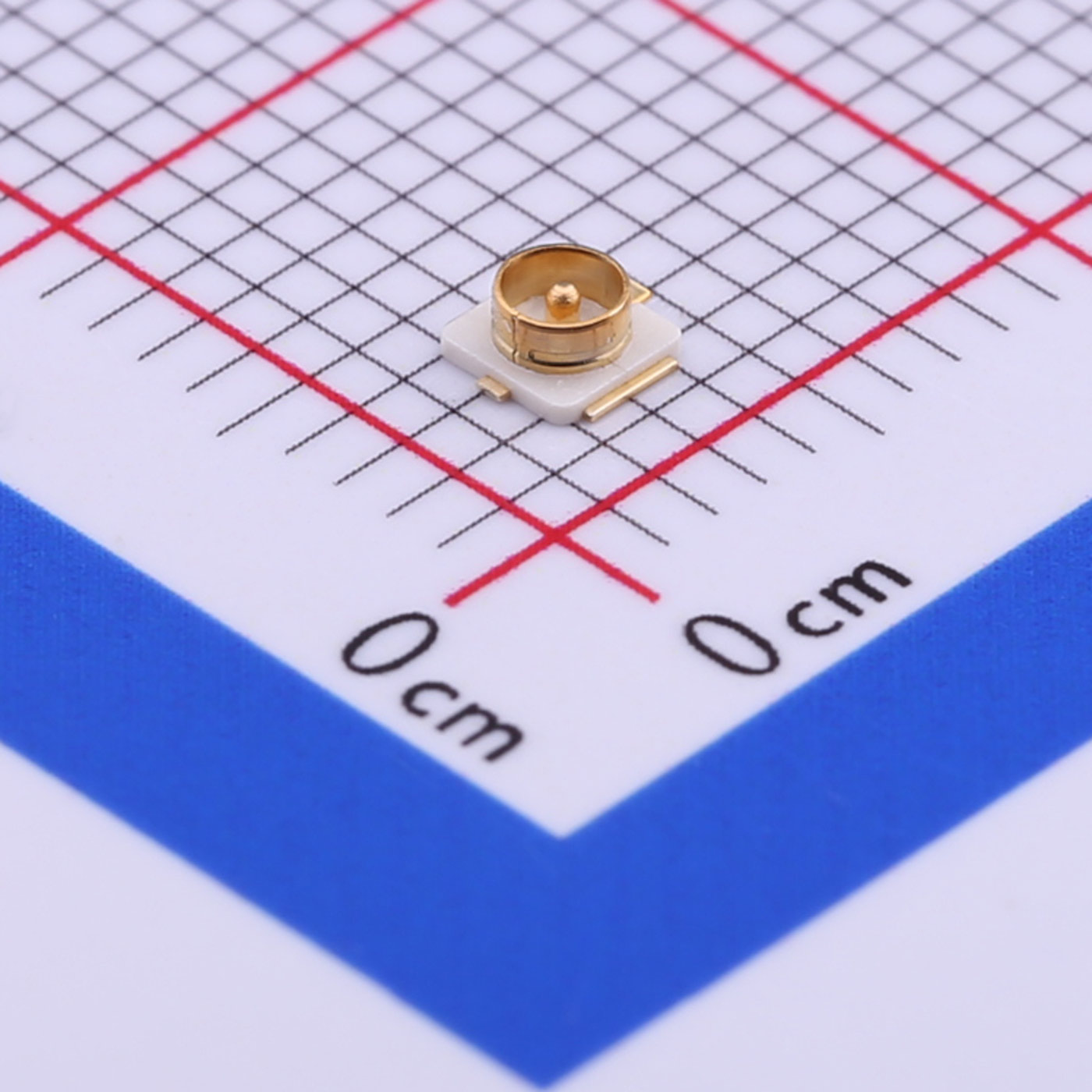

KH-IPEX-K501-29, Kinghelm IPEX Board-End SMD Mount
Operating Temperature Range: -40℃~+90℃
Frequency-Max: 3GHz
Impedance: 50Ω
Interface Diameter: 2mm
Interface Length/Height: 1.25mm
Features
●Diameter:2mm
●Height: 1.25mm
●RoHS & Reach Compliant
Benefit
●Compact Design
●High Performance
●Durability
●Compatibility
●Ease of Assembly
●Signal Integrity
●Versatility
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Related Products
KH-1818085-4, IPEX RF Connector, Board-Mount, 1.2mm Female Interface
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX IV Dimensions： 1.8×1.8×0.85mm Interface Diameter： 1.2mm
KH-20210-3, Mini RF Switch Connector
Brand： kinghelm， IPEX Type： IPEX III Dimensions： 2.1×2.0×0.9mm Interface Diameter： 1.35mm
KH-252515-G2.1, Mini IPEX RF Switch Connector
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX II Dimensions： 2.5×2.5×1.5mm Interface Diameter： 2.1mm
KH-252515-G2.2, RF Coaxial Connector 2 Generation Test Stand
Brand： kinghelm， Frequency： DC~11 GHz Impedance： 50Ω IPEX Type： IPEX II Dimensions： 2.5×2.5×1.5mm Interface Diameter： 2.1mm
KH-252515-Y2.1, Mini RF Switch Connector
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX II Dimensions： 2.5×2.5×1.5mm Interface Diameter： 2.1mm
KH-272716-2.2, RF IPEX Connector
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX II Dimensions： 2.7×2.7×1.6mm Interface Diameter： 2mm
KH-3030175-G1, IPEX RF Switch Connector
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX I Dimensions： 3.0×3.0×1.75mm Interface Diameter： 2.1mm
KH-3030175-Y1, IPEX Connector, 3.0×3.0×1.75mm, 50Ω Impedance
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX I Dimensions： 3.0×3.0×1.75mm Interface Diameter： 2.1mm
KH-IPEX3-2020, IPEX RF Connector, 3rd Generation, Board-Mount
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX III Interface Diameter： 1.4mm
KH-IPEX4-2020, Kinghelm IPEX Connector Receptacle
Brand： kinghelm， Frequency： DC~6 GHz Impedance： 50Ω IPEX Type： IPEX IV Interface Diameter： 1.5mm
