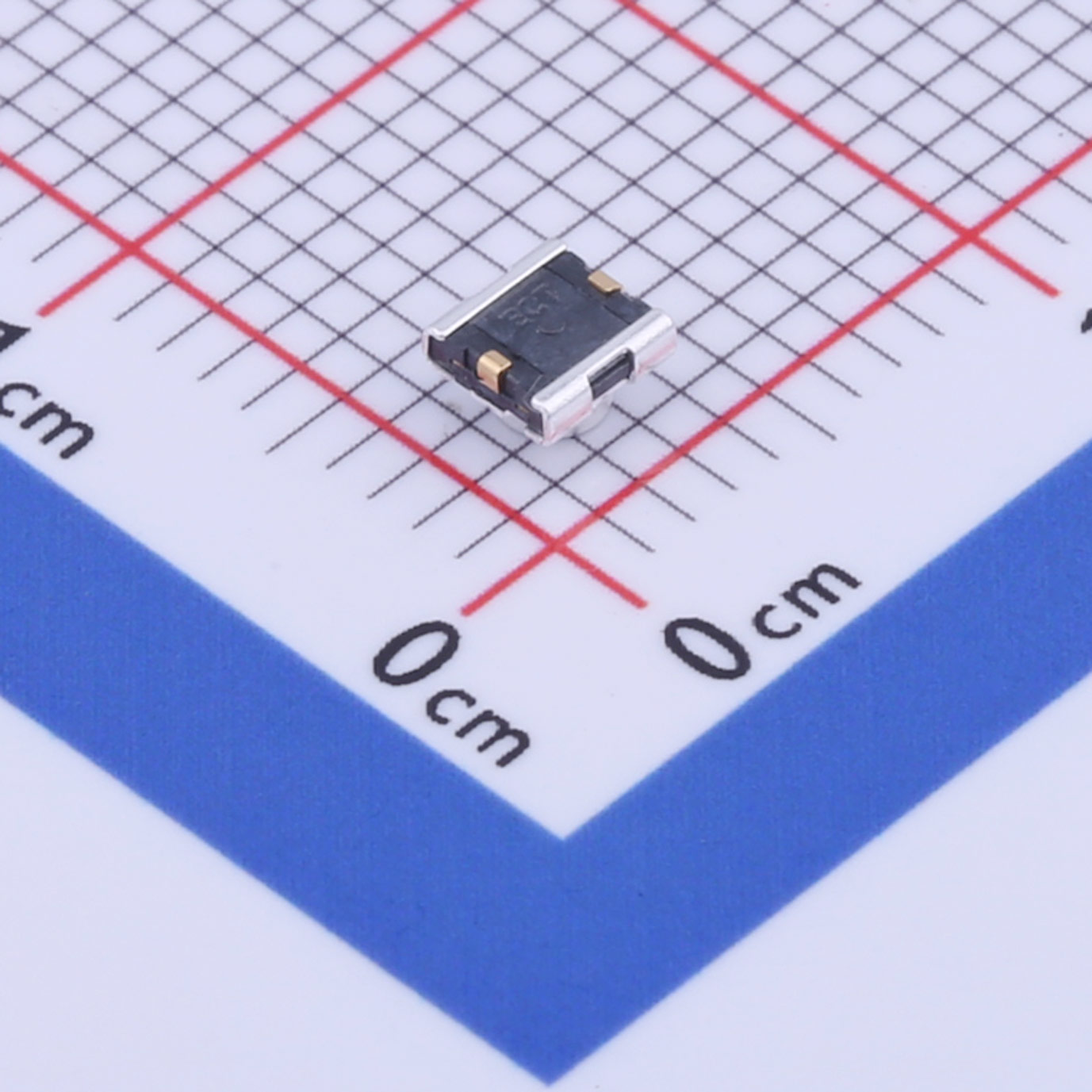

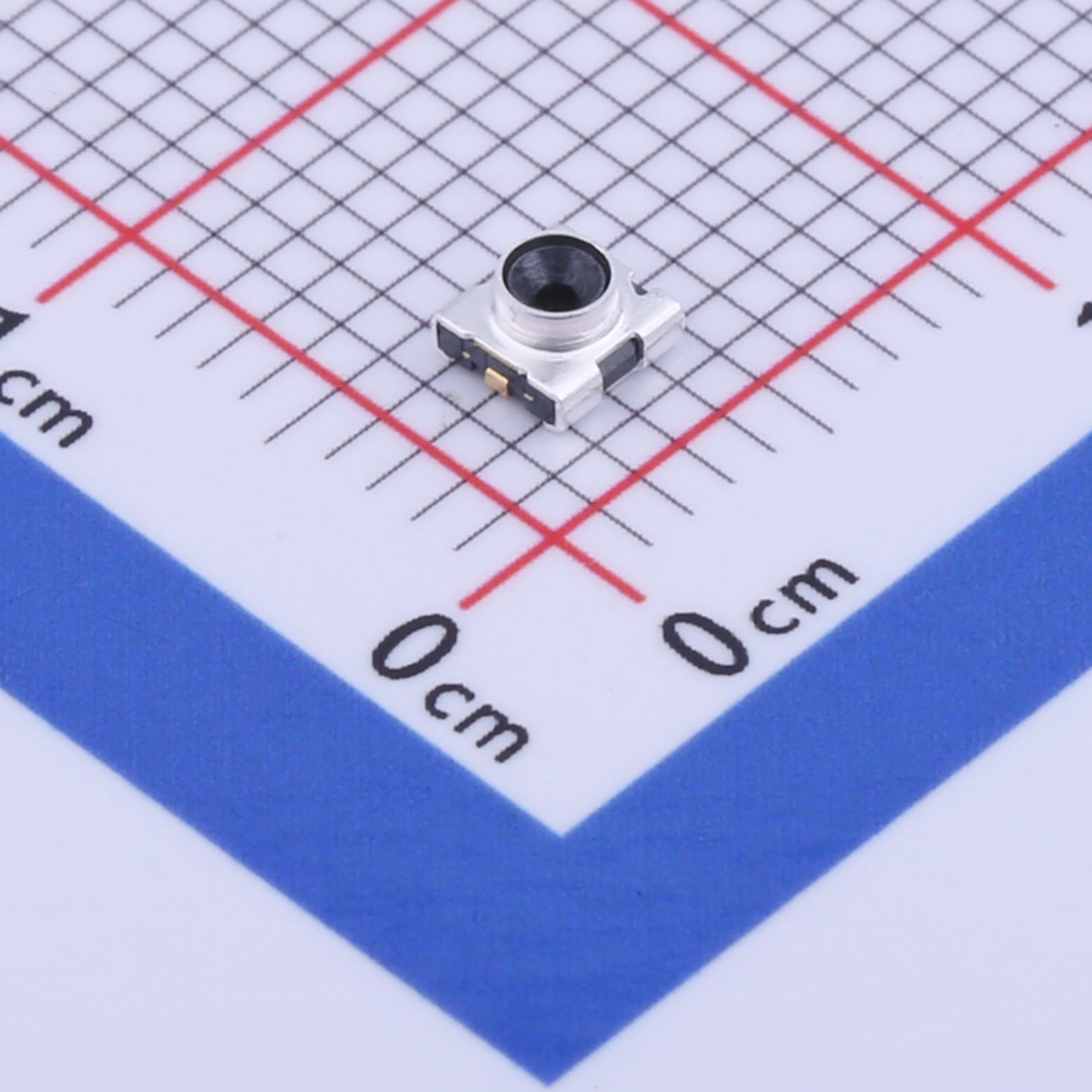

KH-3030175-Y1, IPEX Connector, 3.0×3.0×1.75mm, 50Ω Impedance
Frequency-Max: 6GHz
Impedance: 50Ω
Interface Diameter: 2.1mm
Operating Temperature: -40℃~+85℃
Connector Type: Board Edge
Interface Type: Inner bore
Product Features
●Capable of handling high-frequency signals with exceptional clarity
●Ensures optimal signal integrity and minimal signal loss
●Designed for precise connectivity in compact spaces
●Reliable performance across a wide range of temperatures
●Ideal for applications requiring direct attachment to a circuit board
●Provides a secure and stable connection
●First generation, 3.03.01.75mm, silver-plated — Ensures durability and high performance
Product Advantages
●With a maximum frequency of 6GHz, this connector supports high-speed data transmission and high-frequency applications
●The 50Ω impedance ensures consistent signal quality and minimizes losses, which is critical for high-performance electronics
●Operates reliably in extreme temperatures from -40℃ to +85℃, making it suitable for various environmental conditions
●The 2.1mm interface diameter allows for precise fitting and space-efficient designs
●The silver-plated IPEX connector provides enhanced durability and long-lasting performance
●The board edge connector type ensures a stable and secure attachment to the circuit board, reducing the risk of disconnections or signal interference
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
