4G/5G frequency bands and frequency band divisions of the four major operators

2021-12-28 408

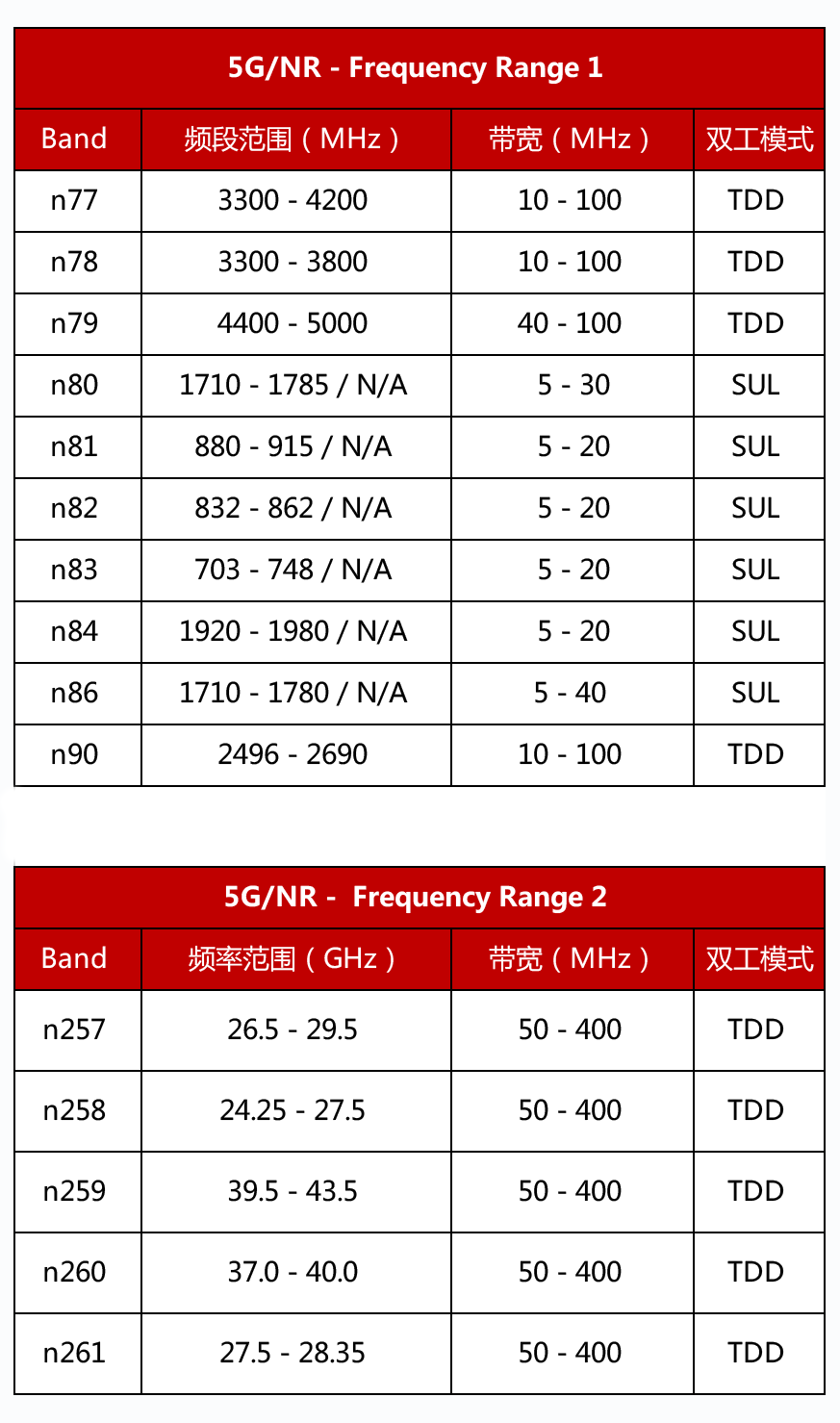

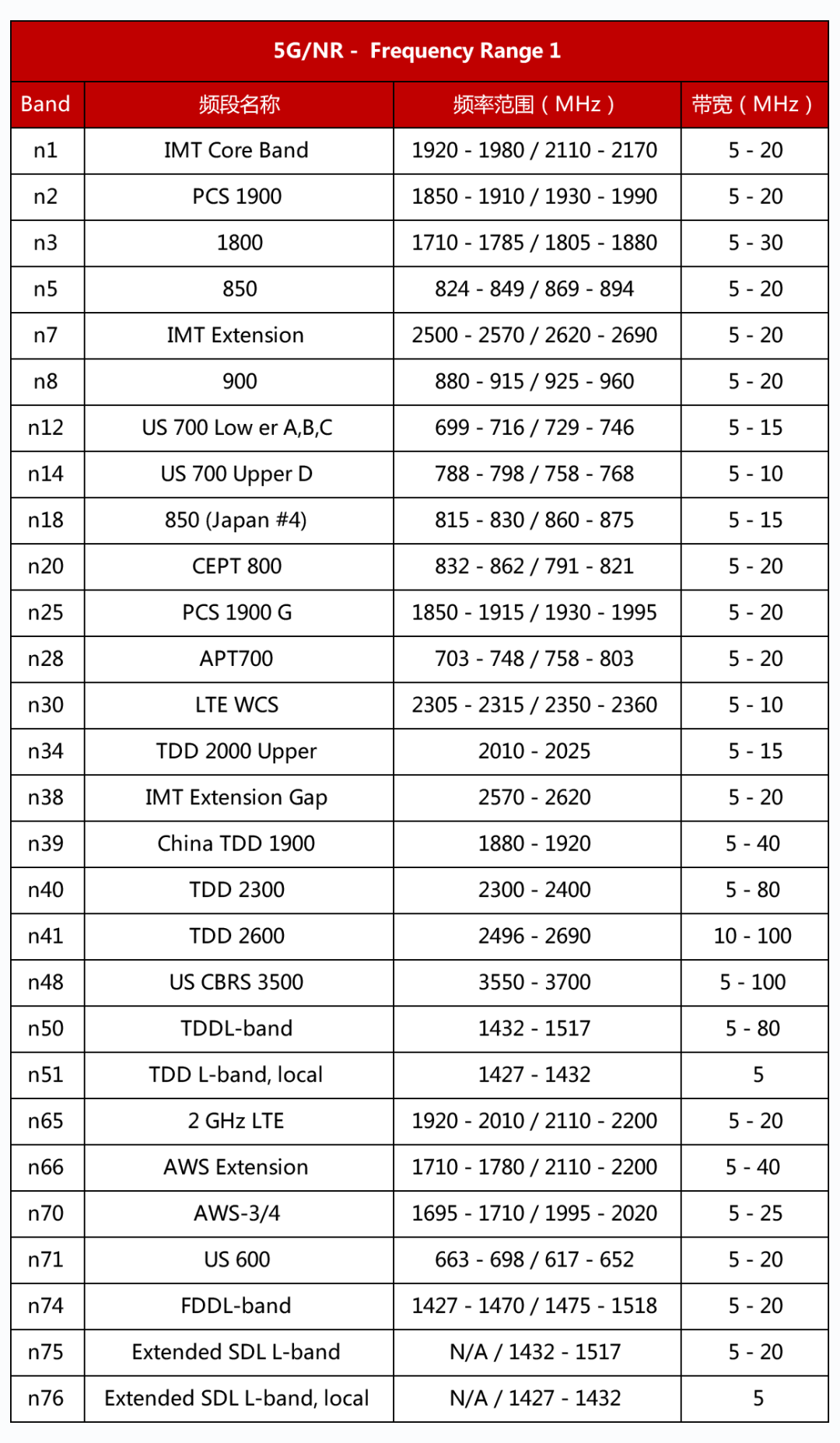

5G NR

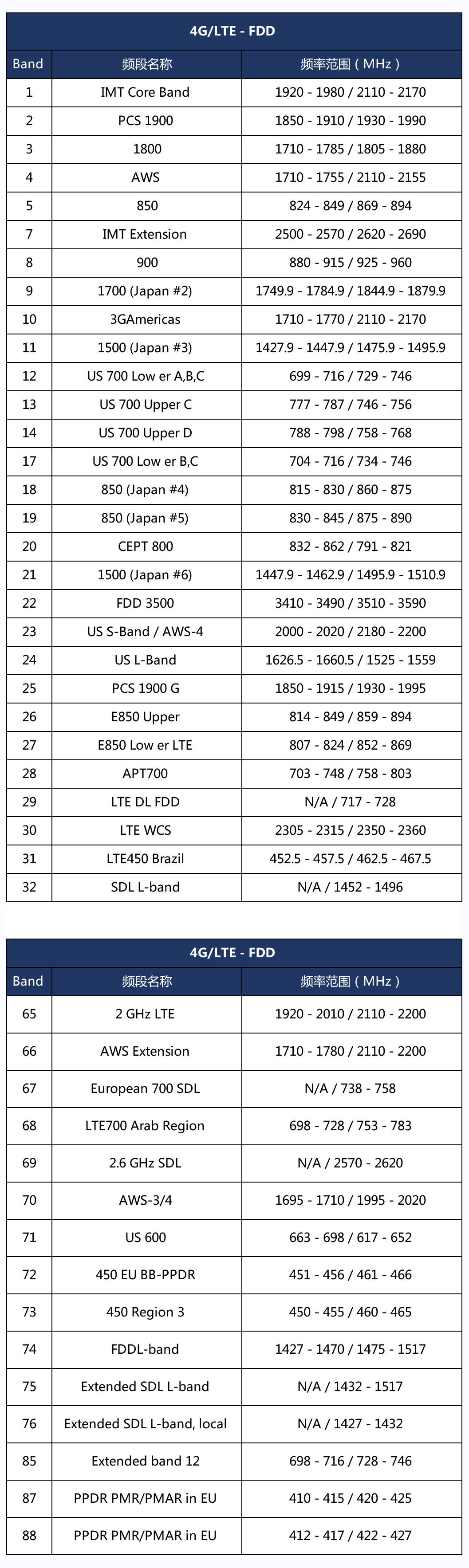

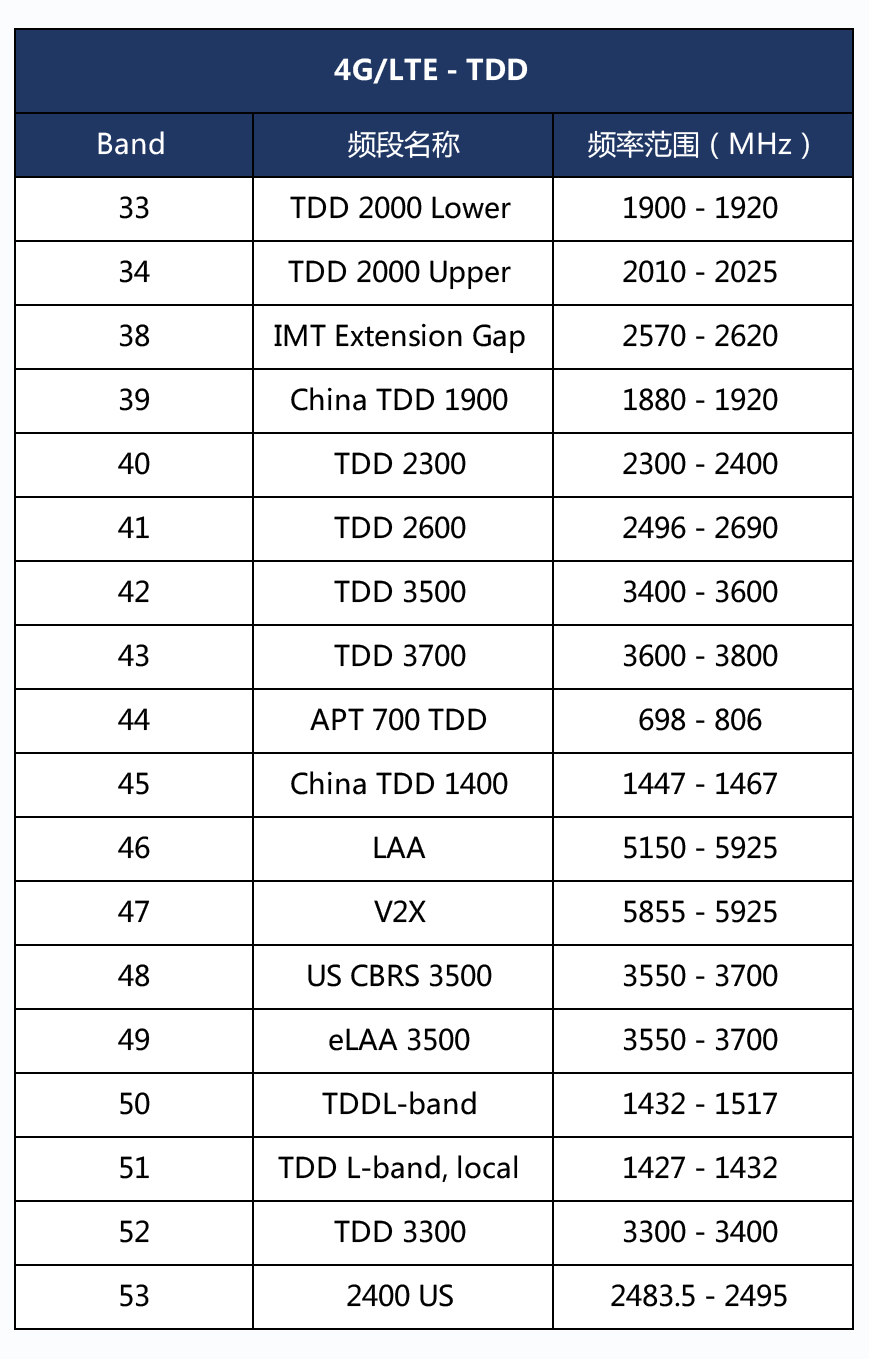

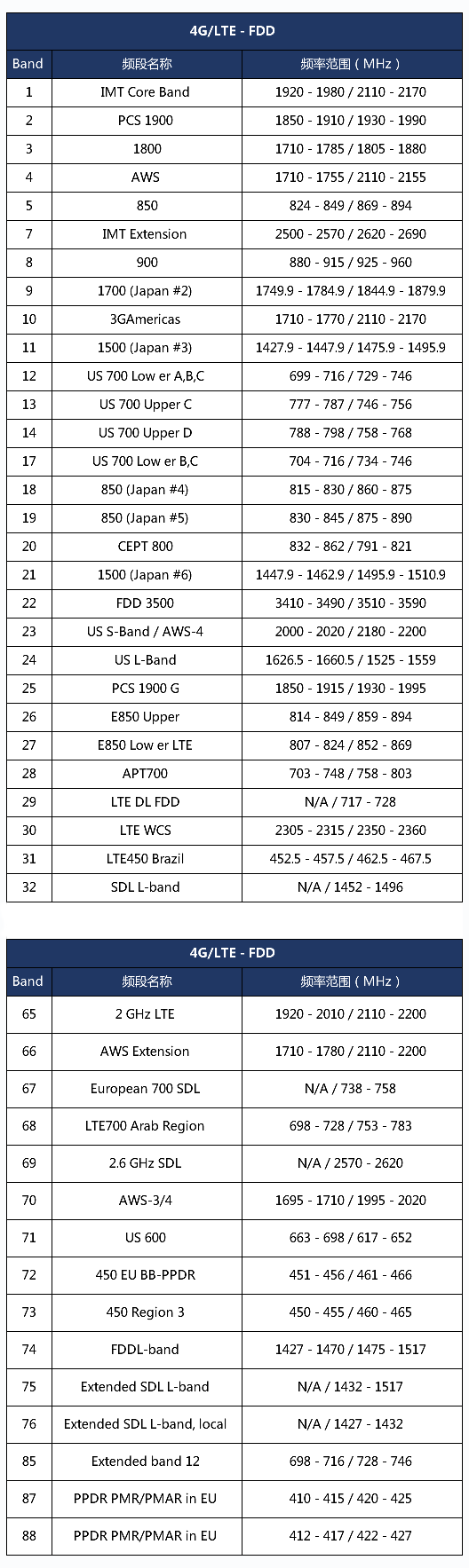

4G LTE


FDD



TDD

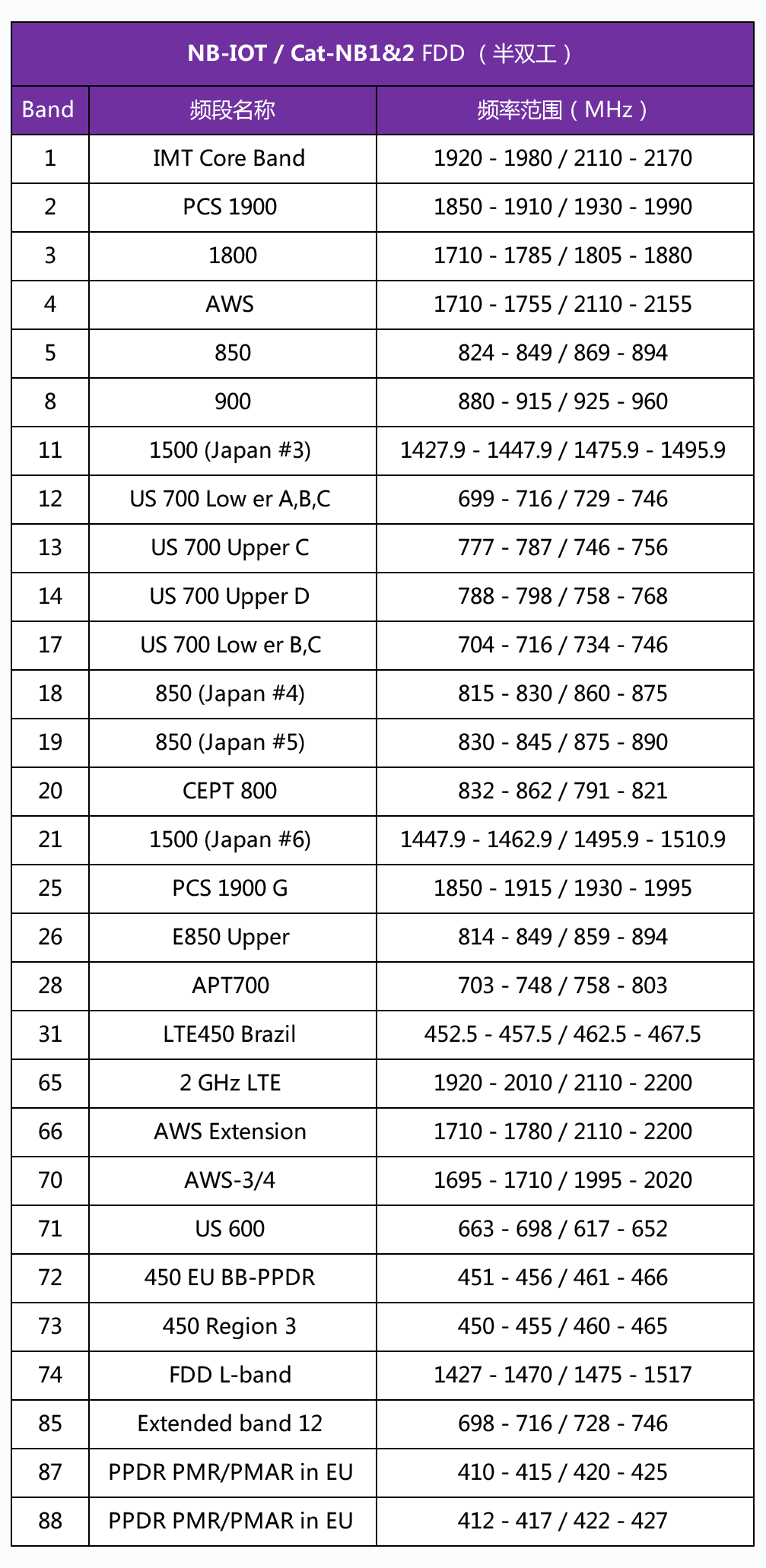

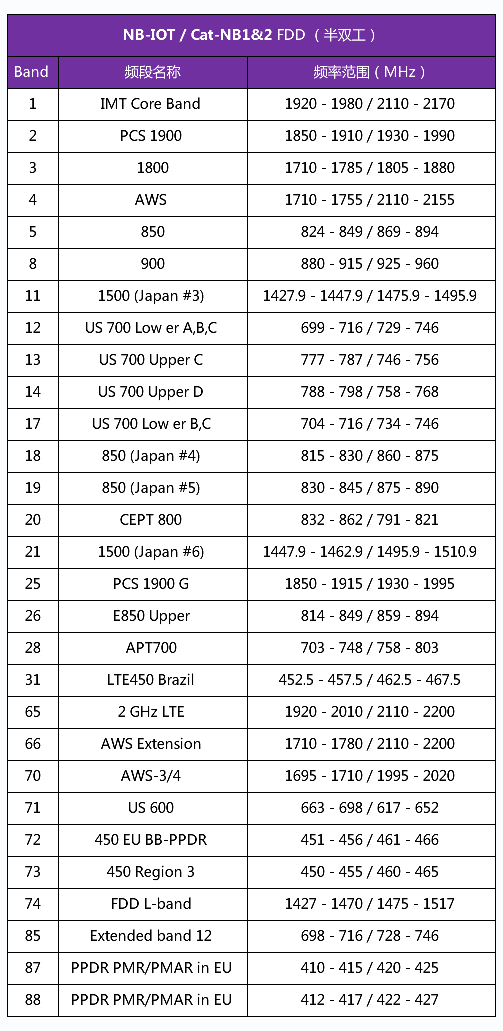

NB-IOT

FDD



TDD

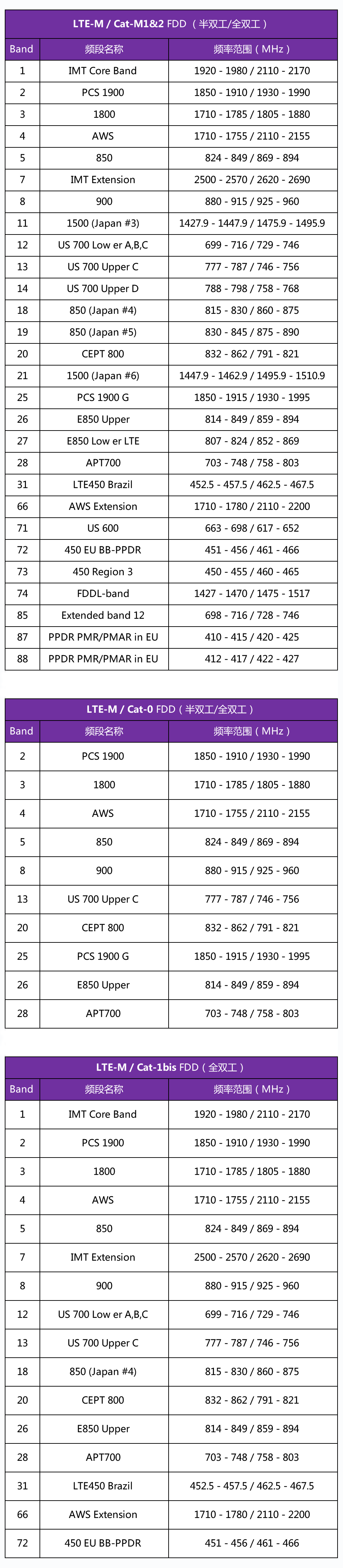

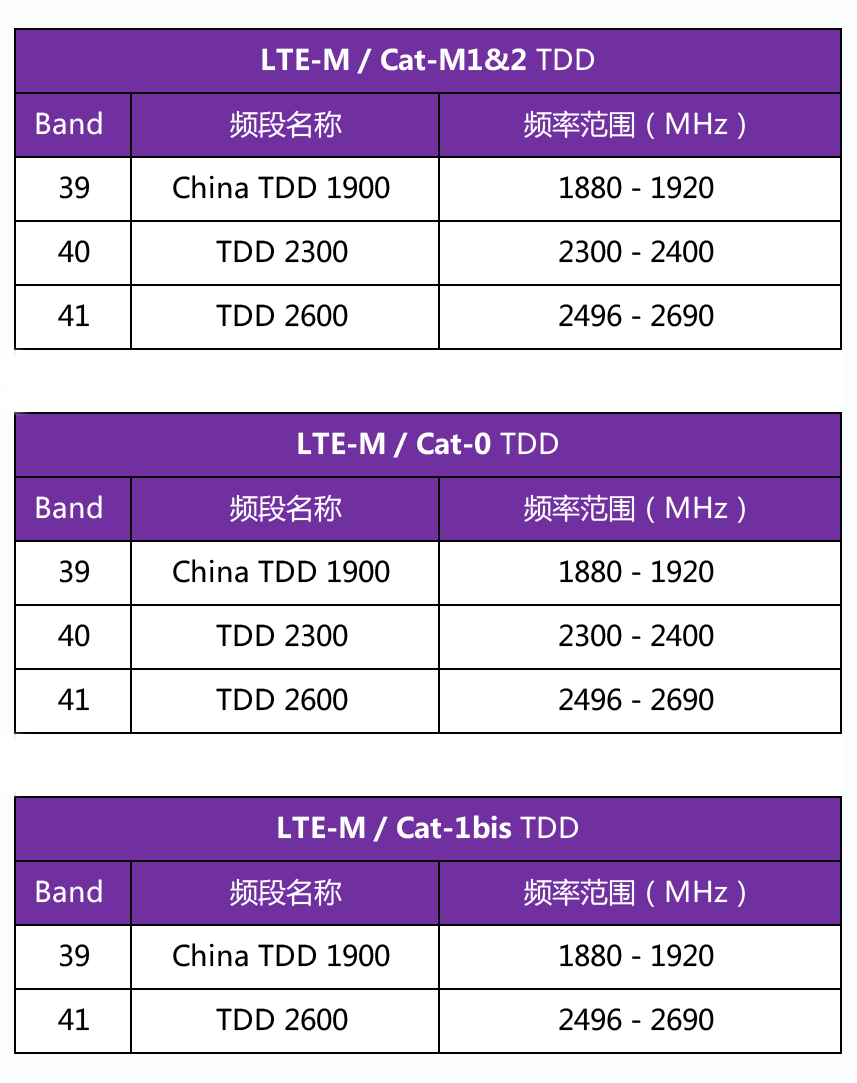

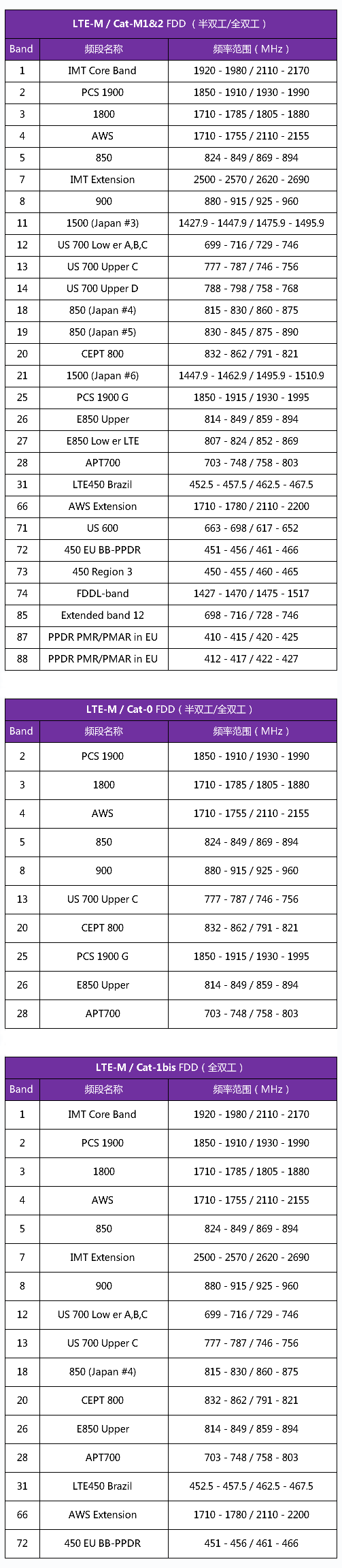

LTE-M


FDD



TDD

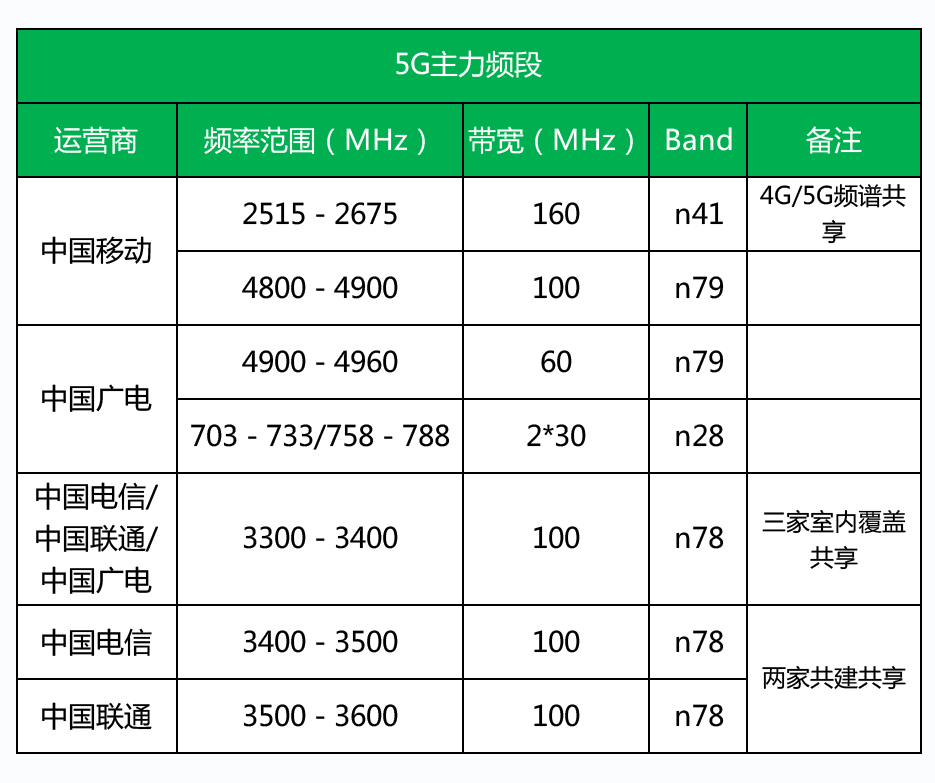

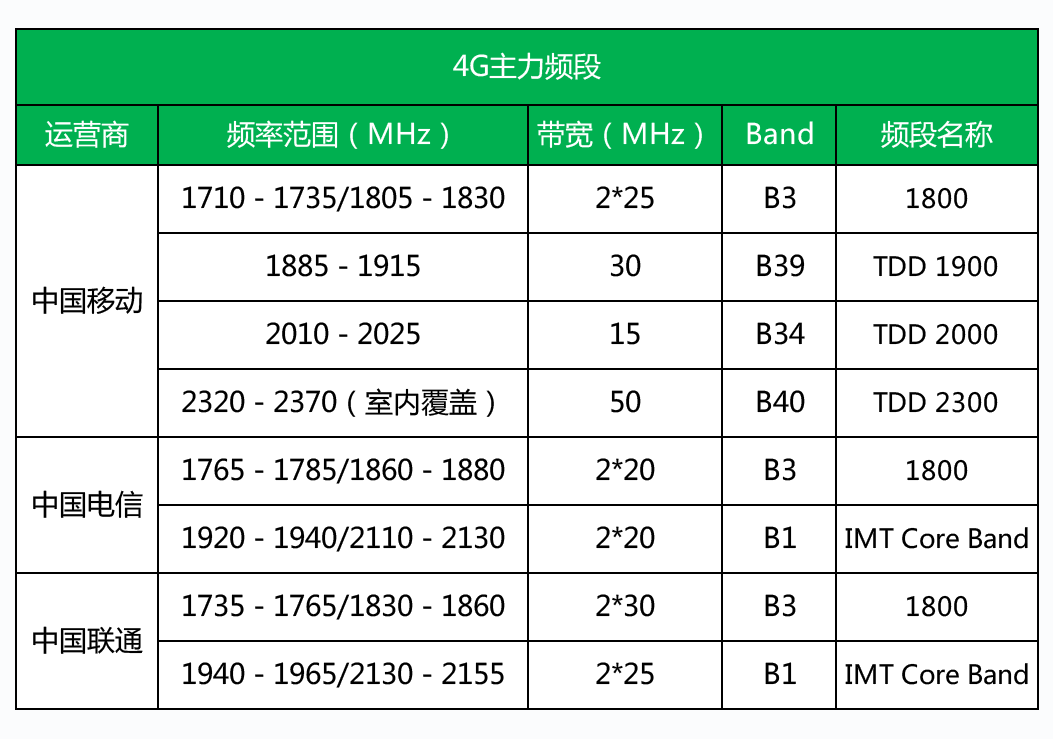

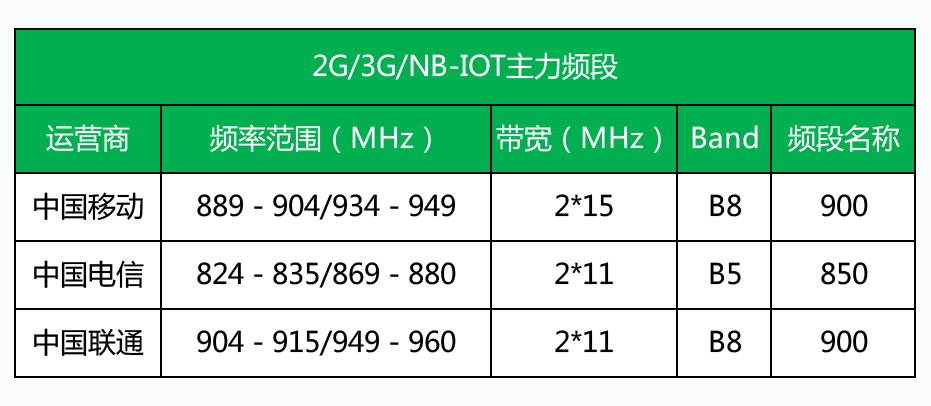

Frequency band division of my country's four major operators






This article is reprinted from "ittbank", which supports the protection of intellectual property rights. Please indicate the original source and author when reprinting. If there is any infringement, please contact us to delete it.
