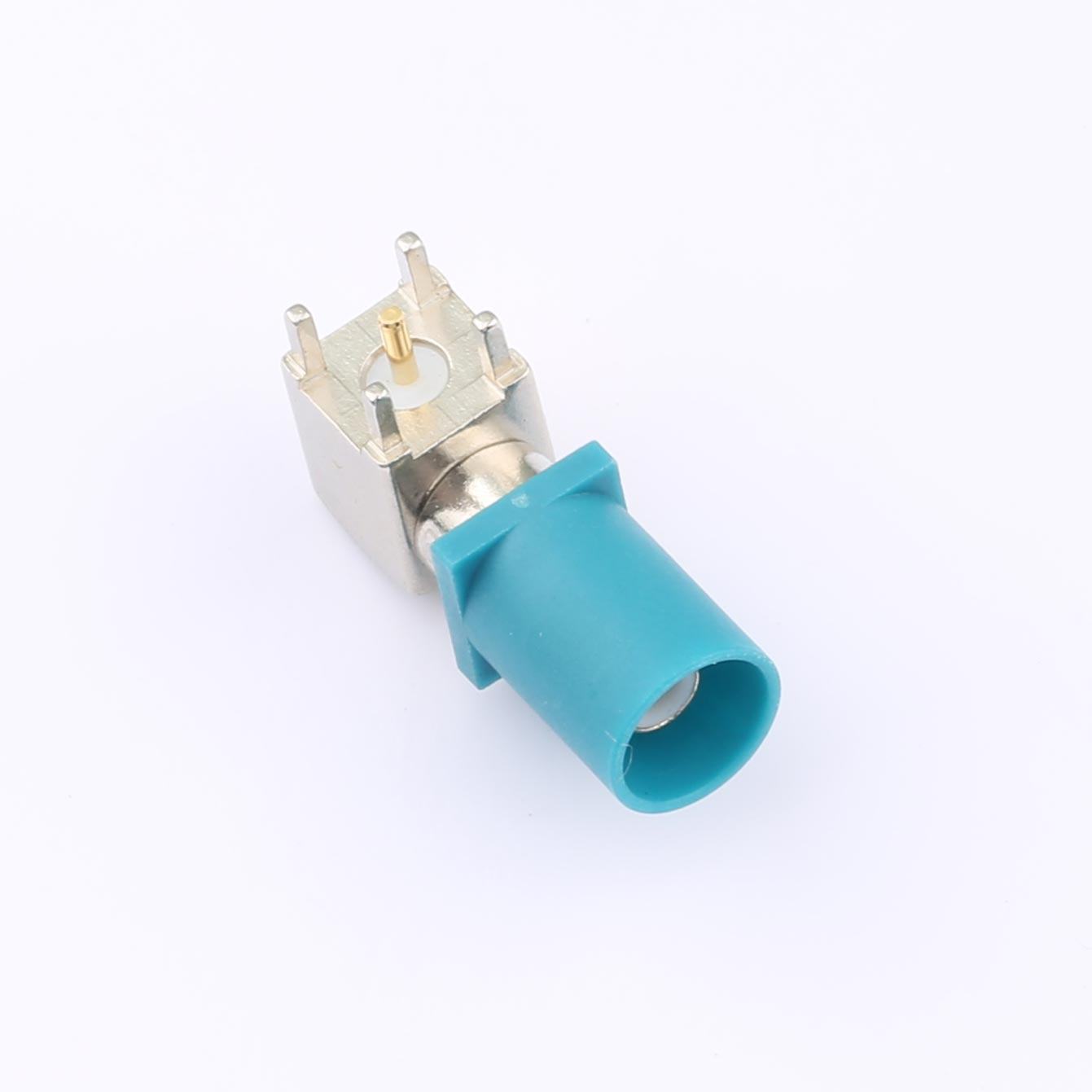

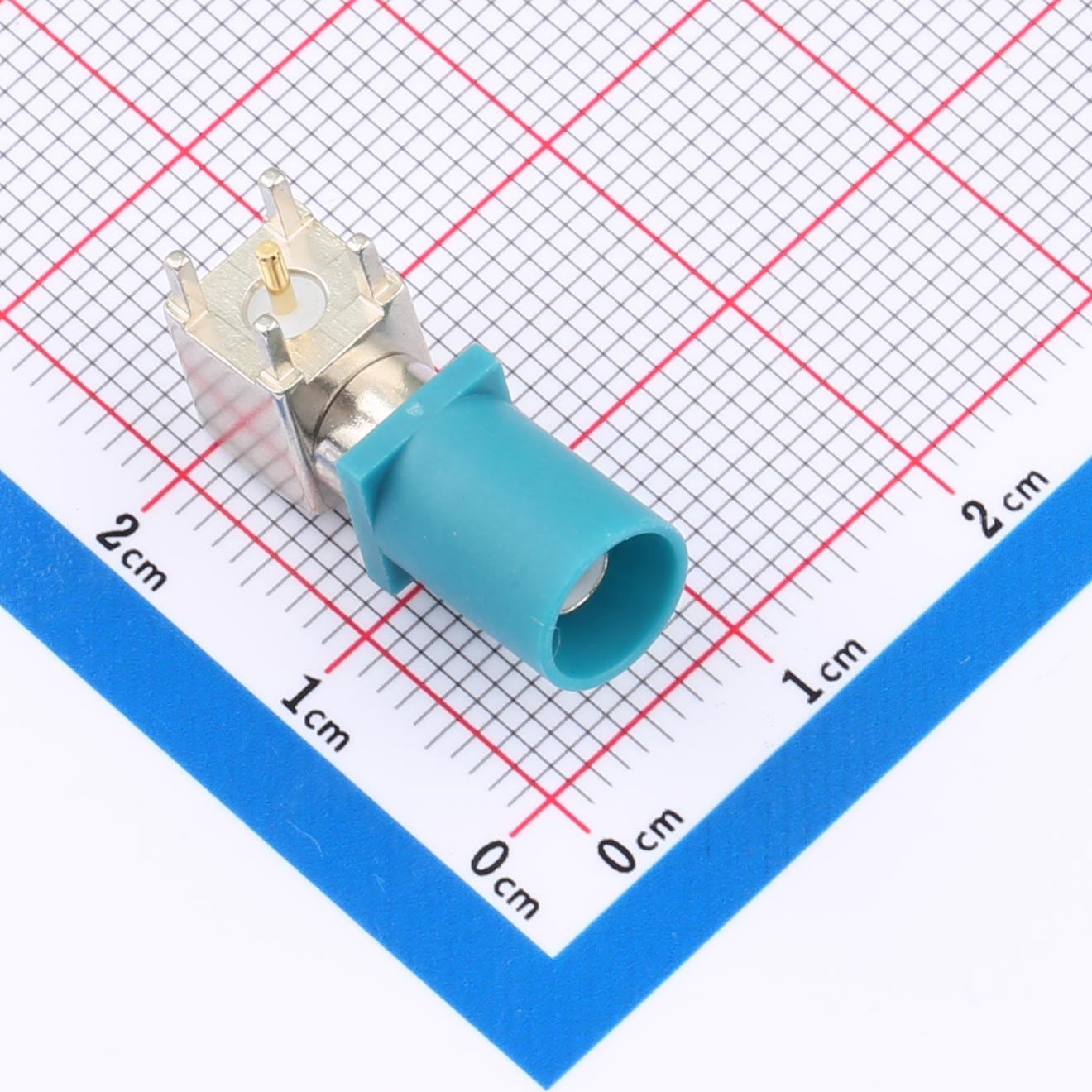

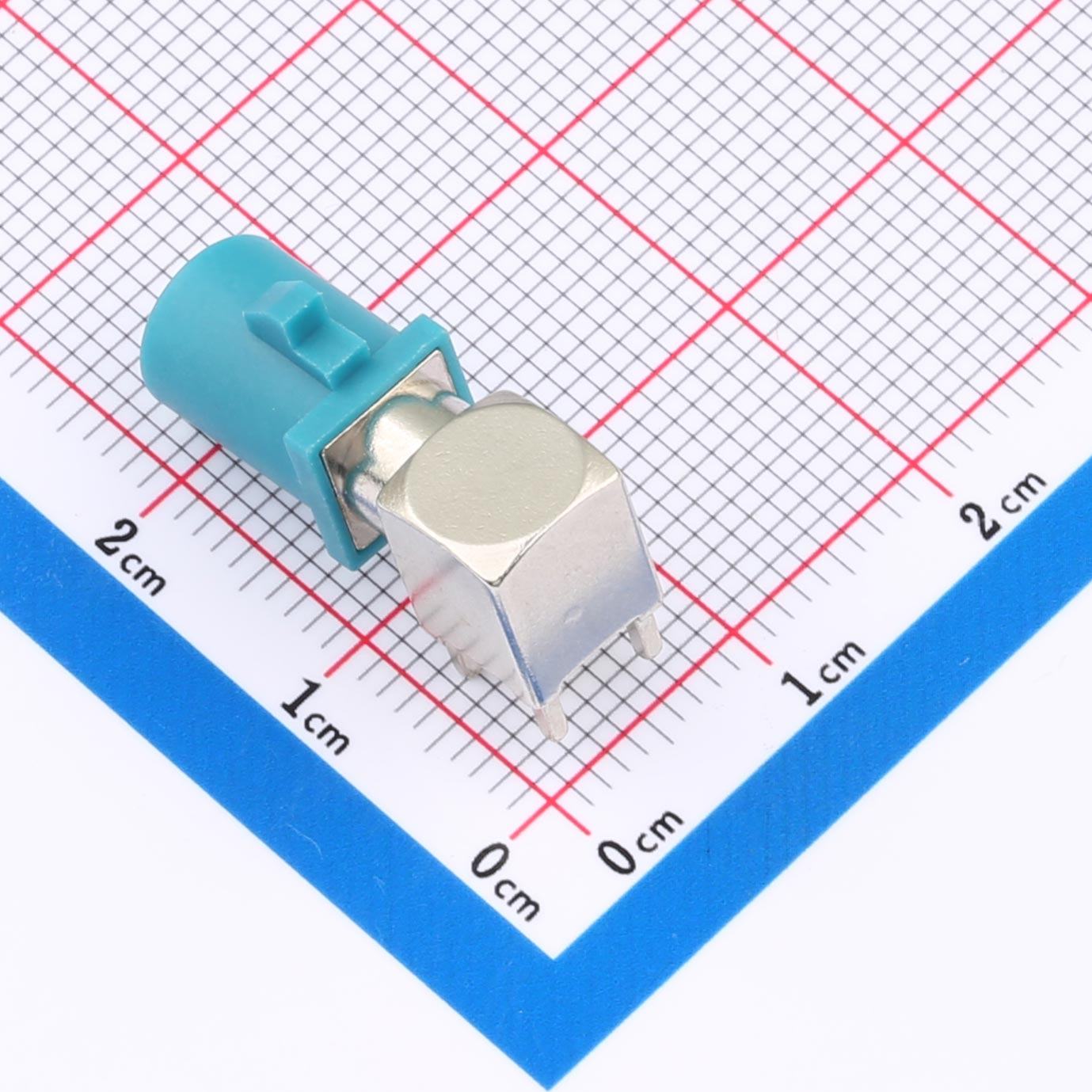

KH-FKRM-1007-04Z
Product Mounting: Through Hole
Packaging Method: Bag Packaging
Frequency Range: DC to 6 GHz
Characteristic Impedance: 50 Ω
Operating Temperature: -40°C to +105°C
Features
- Frequency Range: DC–6 GHz
- Characteristic Impedance: 50 Ω
- Connector Type: 90° Right-Angle Male FAKRA PCB Connector
- Color: Light Blue
- Mounting Type: Through-Hole
- Operating Temperature: -40°C to +105°C
- Package: Bag
Advantages
- Wide Frequency Range: Supports frequencies from DC to 6 GHz, suitable for a wide range of RF applications.
- Stable RF Performance: 50 Ω characteristic impedance helps ensure reliable signal transmission and impedance matching.
- Compact Right-Angle Design: The 90° configuration saves PCB space and facilitates flexible cable routing.
- Reliable Connection: FAKRA interface provides secure and stable RF connectivity.
- Wide Operating Temperature Range: Designed for reliable operation from -40°C to +105°C.
Applications
- Automotive RF Systems
- GPS / GNSS Navigation Systems
- Automotive Telematics
- Vehicle Communication Systems
- Infotainment Systems
- Wireless Communication Equipment
- RF Signal Transmission
- Antennas and RF Modules
