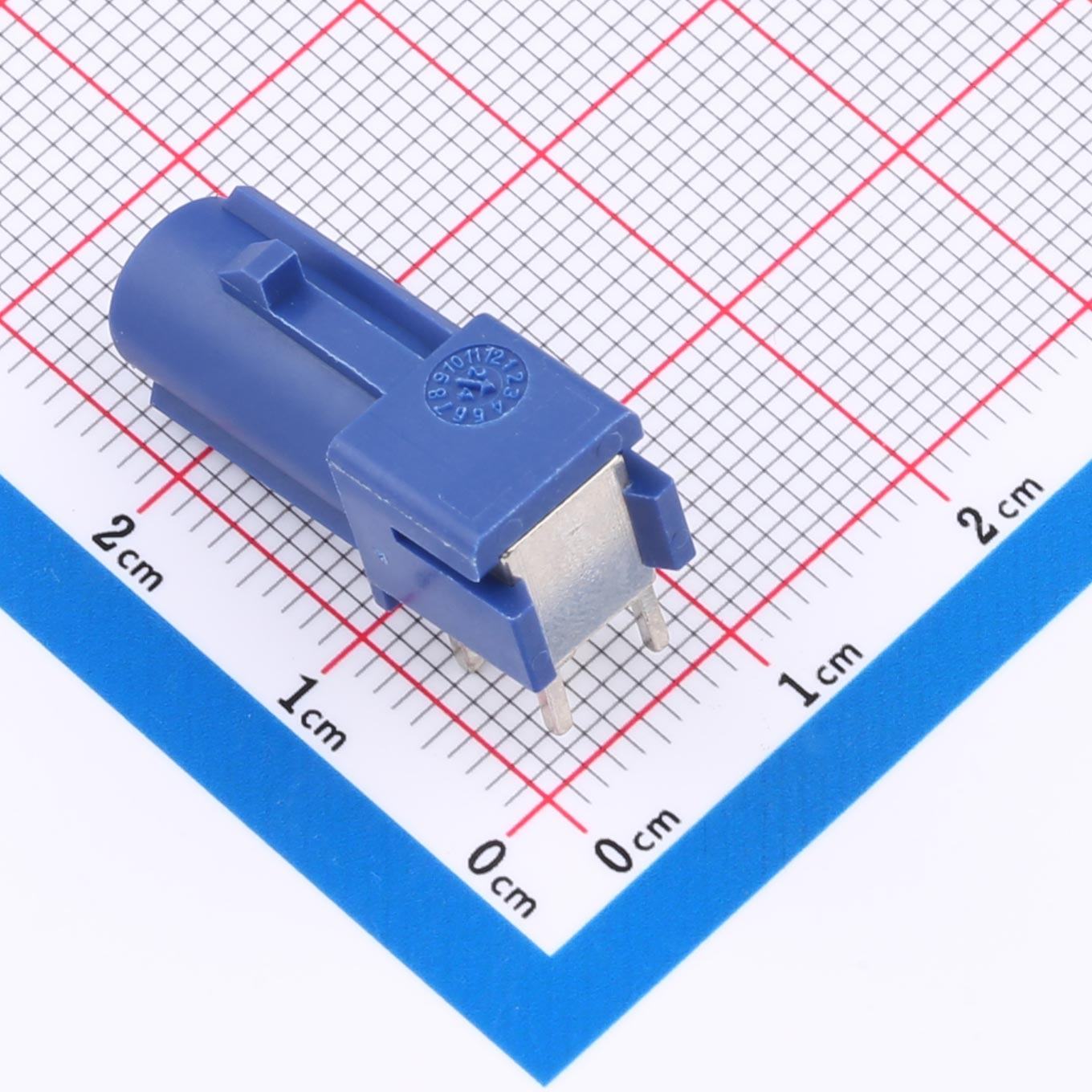

KH-FKRM-1003-03C
Product Mounting: Through Hole
Packaging Method: Bag Packaging
Frequency Range: DC to 6 GHz
Characteristic Impedance: 50 Ω
Operating Temperature: -40°C to +105°C
Features
- Frequency Range: DC–6 GHz
- Characteristic Impedance: 50 Ω

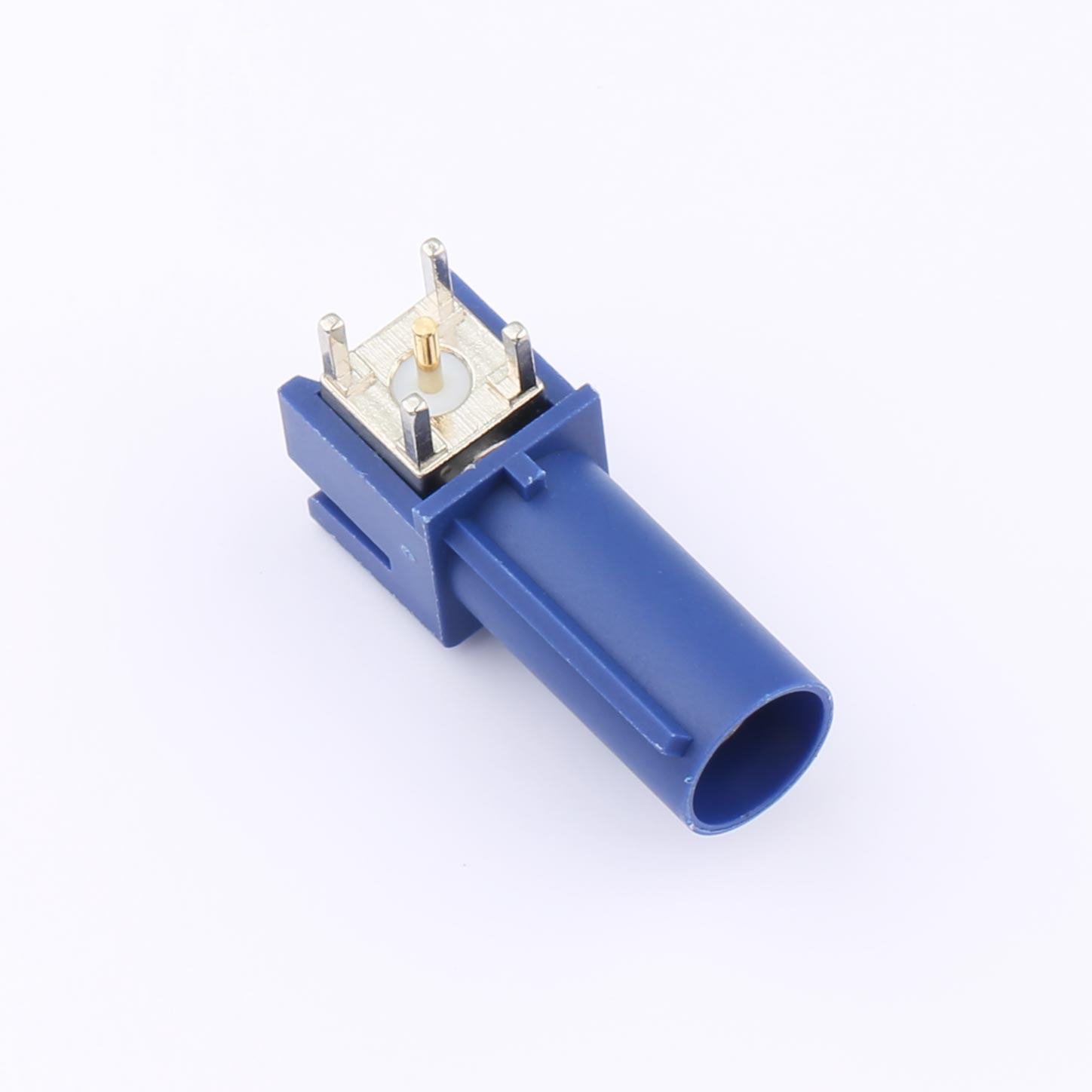

- Connector Type: 90° Right-Angle Male FAKRA PCB Connector
- Color: Blue
- Mounting Type: Through-Hole
- Operating Temperature: -40°C to +105°C
- Package: Bag
Advantages
- Wide Frequency Range: Supports frequencies from DC to 6 GHz, suitable for various RF applications.
- Stable RF Performance: 50 Ω characteristic impedance provides reliable signal transmission and impedance matching.
- Space-Saving Design: The 90° right-angle configuration helps optimize PCB space and enables flexible cable routing.
- Reliable Connection: FAKRA interface ensures secure and stable RF connections.
- Wide Operating Temperature Range: Supports reliable operation from -40°C to +105°C.
Applications
- Automotive RF Systems
- GPS / GNSS Navigation Systems
- Automotive Telematics
- Vehicle Communication Systems
- Automotive Infotainment Systems
- Wireless Communication Equipment
- RF Signal Transmission
- Antenna and RF Modules
