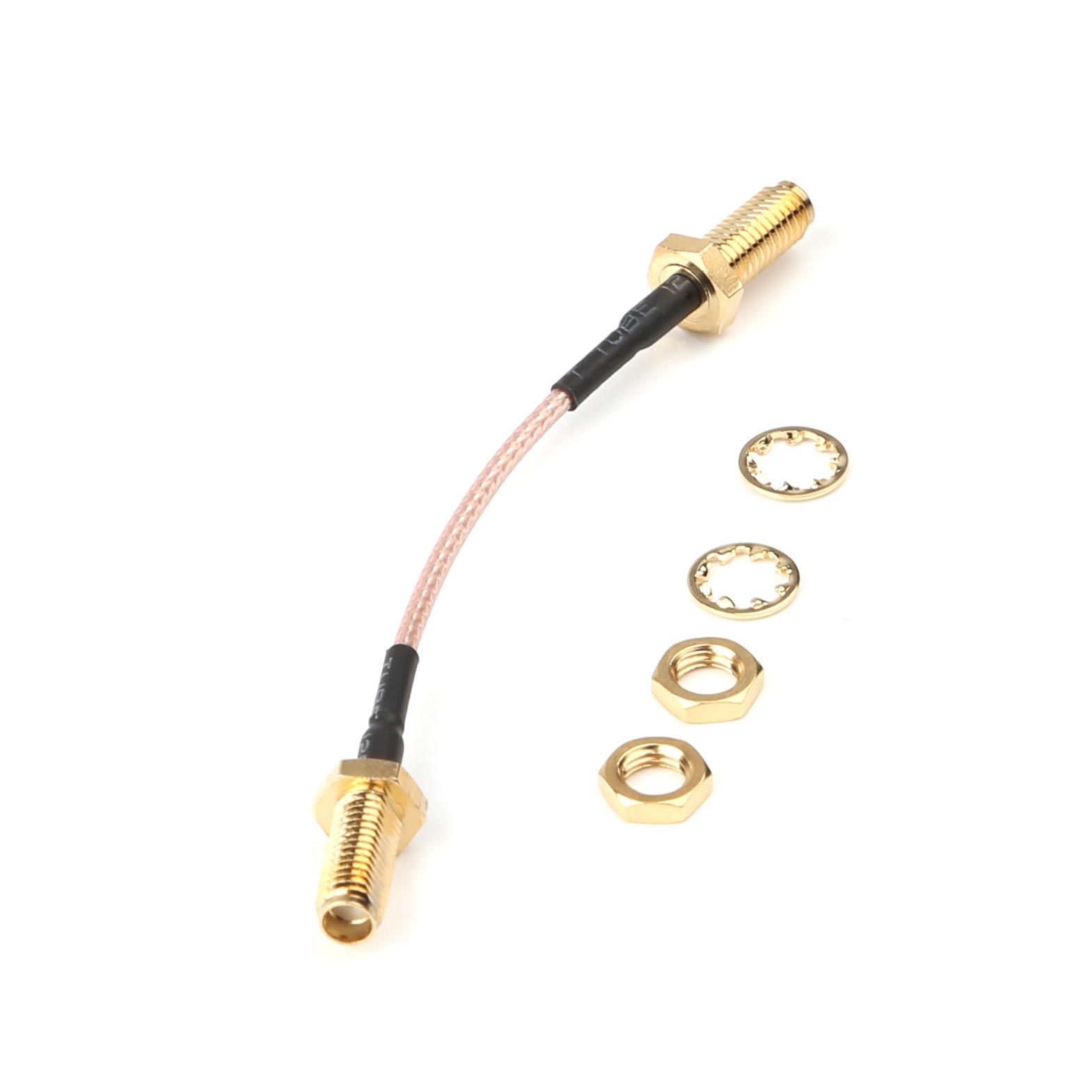

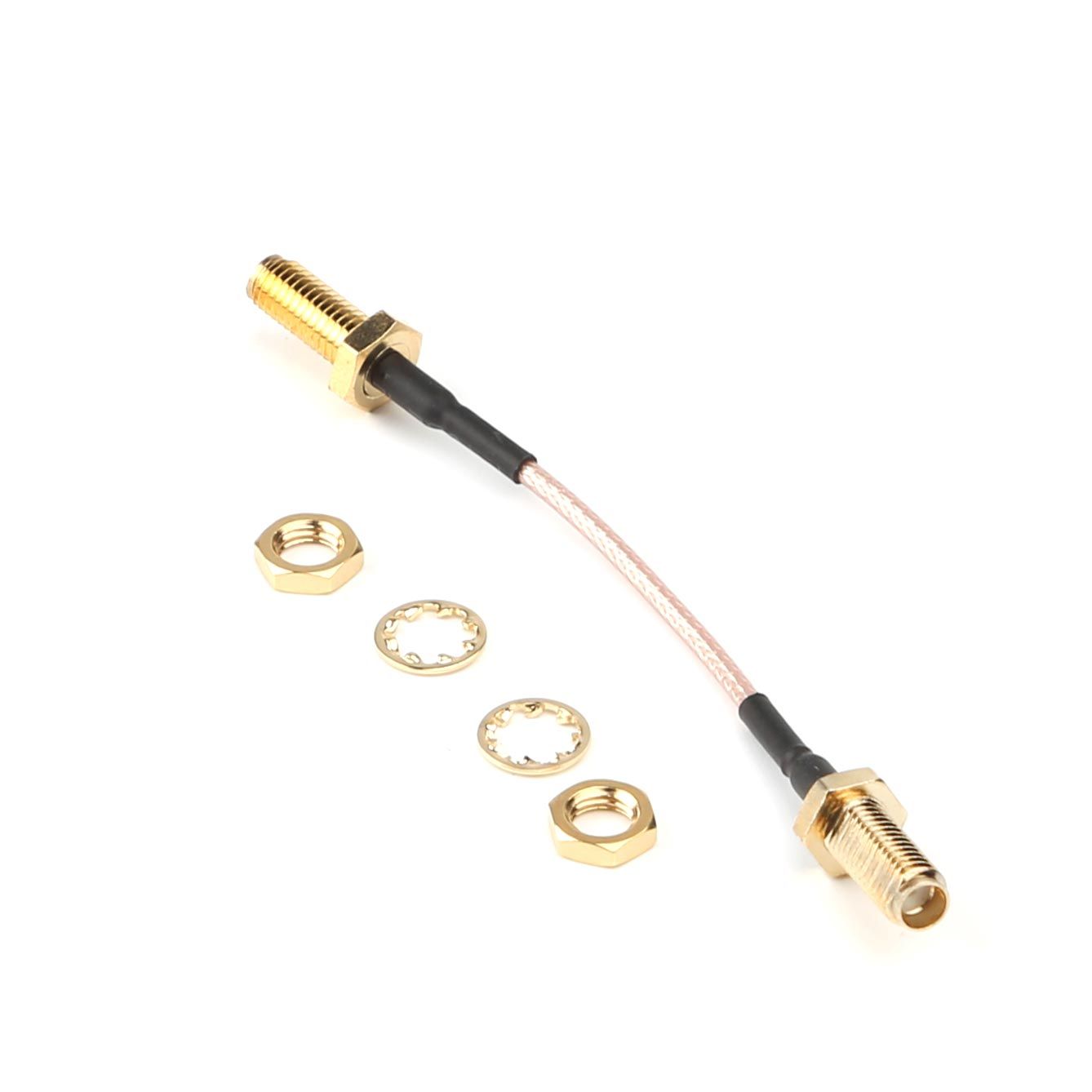

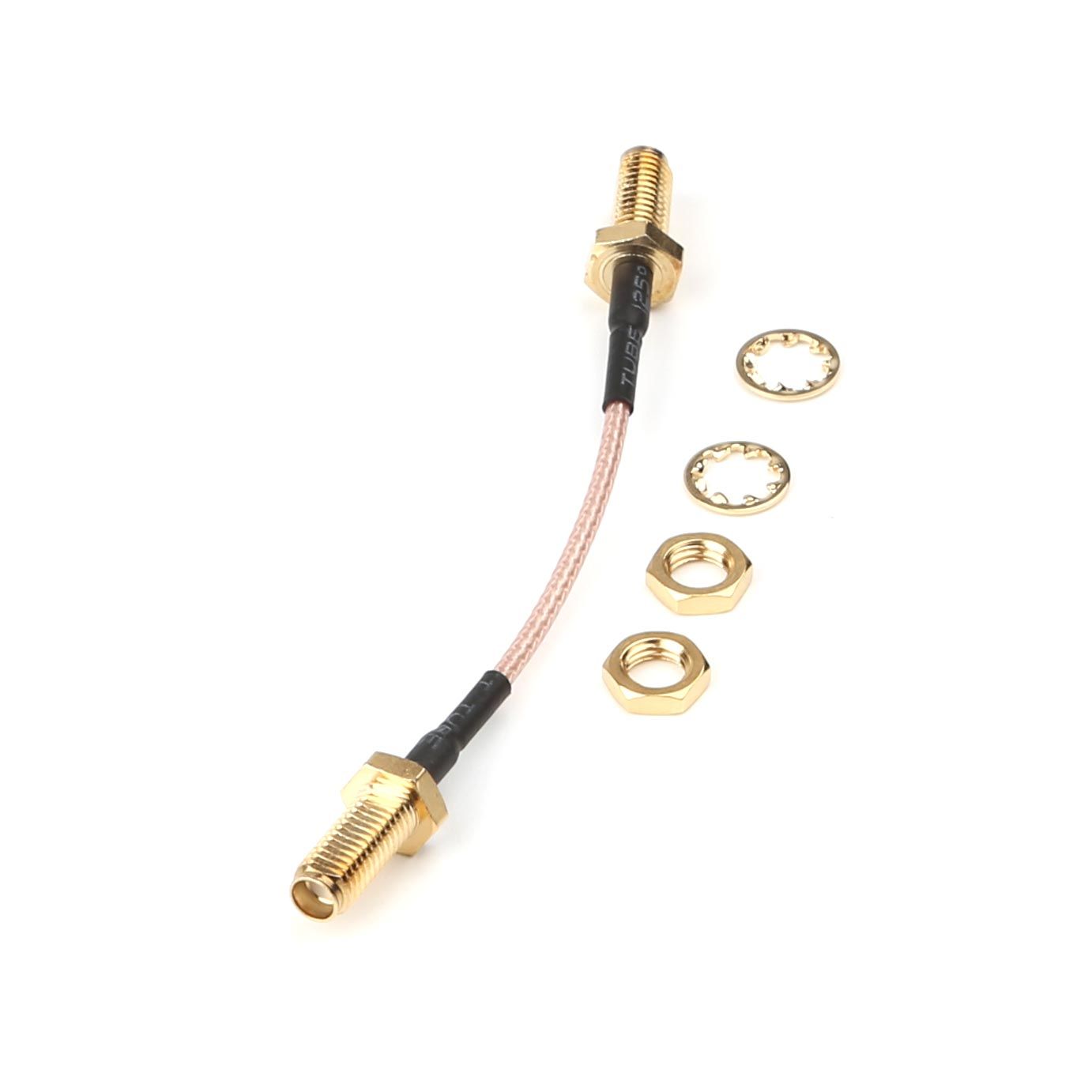

KH-SSMAK-SSMAK-RG178-60MM
Brand: Kinghelm
Product Type: SSMA Female to SSMA Female RF Adapter Cable
Cable Length: 60mm
Cable Type: RG178
Rated Voltage: 300V
Features
- Dual SSMA Female Connectors：Both ends adopt standard SSMA female interfaces, with universal docking specifications for seamless compatibility with matching male connectors.
- RG178 Ultra-fine Coaxial Cable：Equipped with lightweight RG178 flexible coaxial wire, featuring an ultra-compact outer diameter of only 1.83mm for minimal space occupation .
- Standard 60mm Fixed Length：Strictly controlled 60mm cable length ensures consistent dimensions across batches, eliminating assembly tolerance discrepancies.
- 300V Rated Withstand Voltage：Supports 300V nominal working voltage, meeting basic electrical safety requirements for general RF scenarios .
- High Flexibility Cable Body：The RG178 wire has excellent bending performance, allowing multi-angle routing without damaging the internal structure .
- Reliable Crimped Interface：The SSMA female connector is securely crimped to the cable, ensuring stable electrical contact after long-term use.
- Standard Bag Packaging：Shipped in independent sealed bags to prevent dust contamination and physical damage during transportation.
Advantages
- Ultra-small Footprint：The slim RG178 cable and compact SSMA interface greatly reduce the space required for wiring, making it ideal for highly integrated device interiors.
- Stable Signal Transmission：Maintains 50Ω characteristic impedance consistency, minimizing signal reflection and insertion loss during short-distance RF signal transmission .
- Strong Wiring Adaptability：The highly flexible cable can be bent at will in narrow equipment gaps, easily adapting to complex 3D routing layouts.
- Durable Mechanical Performance：The crimped connection structure effectively avoids loose interfaces caused by vibration or frequent handling, ensuring long-term reliable contact.
- Cost-effective Standardization：The unified 60mm length and mass-produced bag packaging reduce procurement costs while ensuring consistent product quality.
Applications
- Miniature Wireless Communication Devices：Internal interconnection of compact RF modules such as Bluetooth beacons, Wi-Fi 6E modules, and IoT sensor nodes.
- GNSS Positioning Equipment：Signal jumper for high-precision positioning boards, connecting SSMA interfaces between antenna modules and mainboards.
- Space-constrained Test Fixtures：Short-distance signal interconnection in miniaturized RF test jigs, adapting to high-density layout requirements of test points.
- Portable Medical Electronic Devices：Internal RF signal transmission in compact medical instruments that require strict space control.
- Millimeter-wave Front-end Modules：Short-distance signal bridging between miniaturized RF components in 5G/6G small base station units.
- High-density PCB Assembly：On-board RF signal jumpers between adjacent SSMA interfaces on densely laid-out printed circuit boards.
