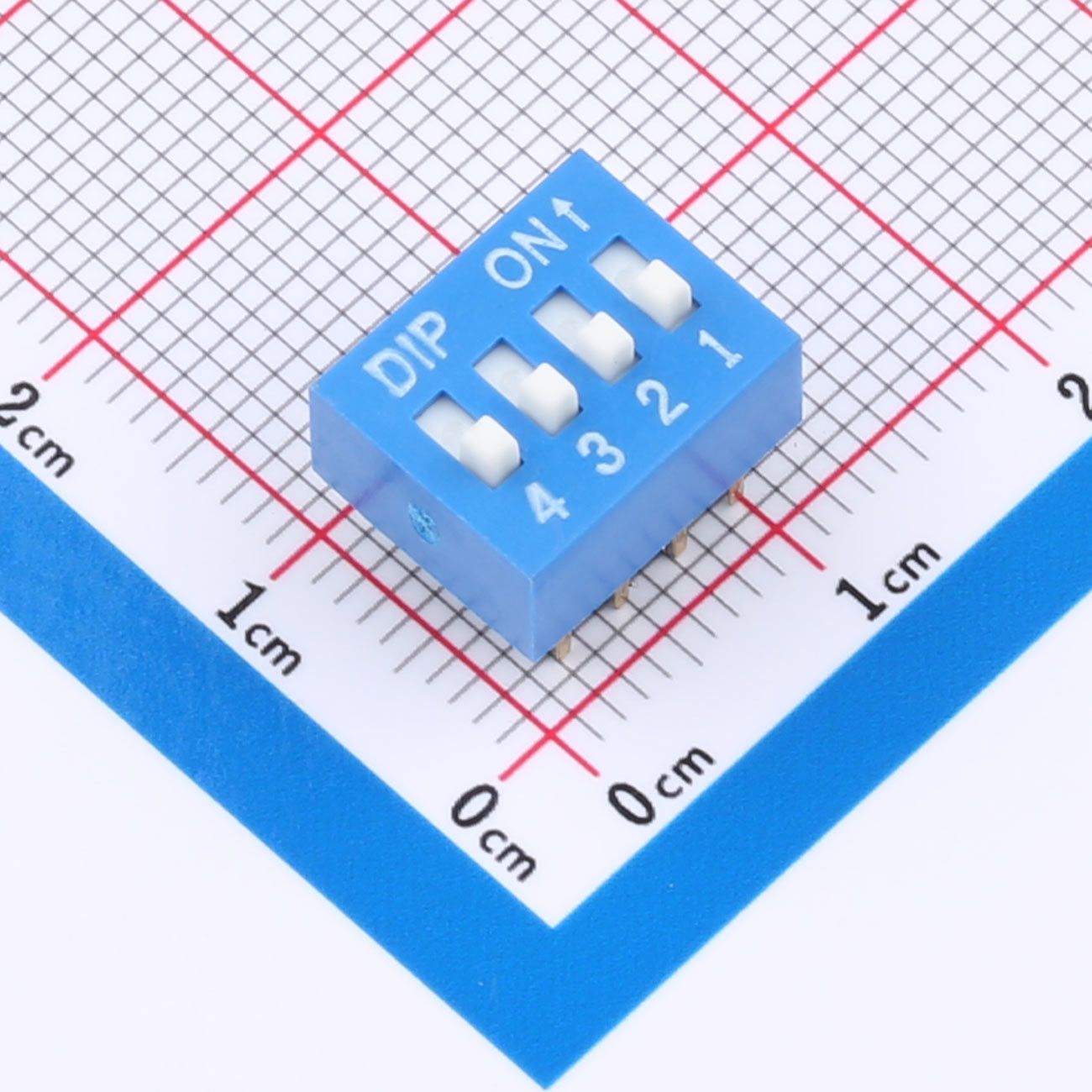

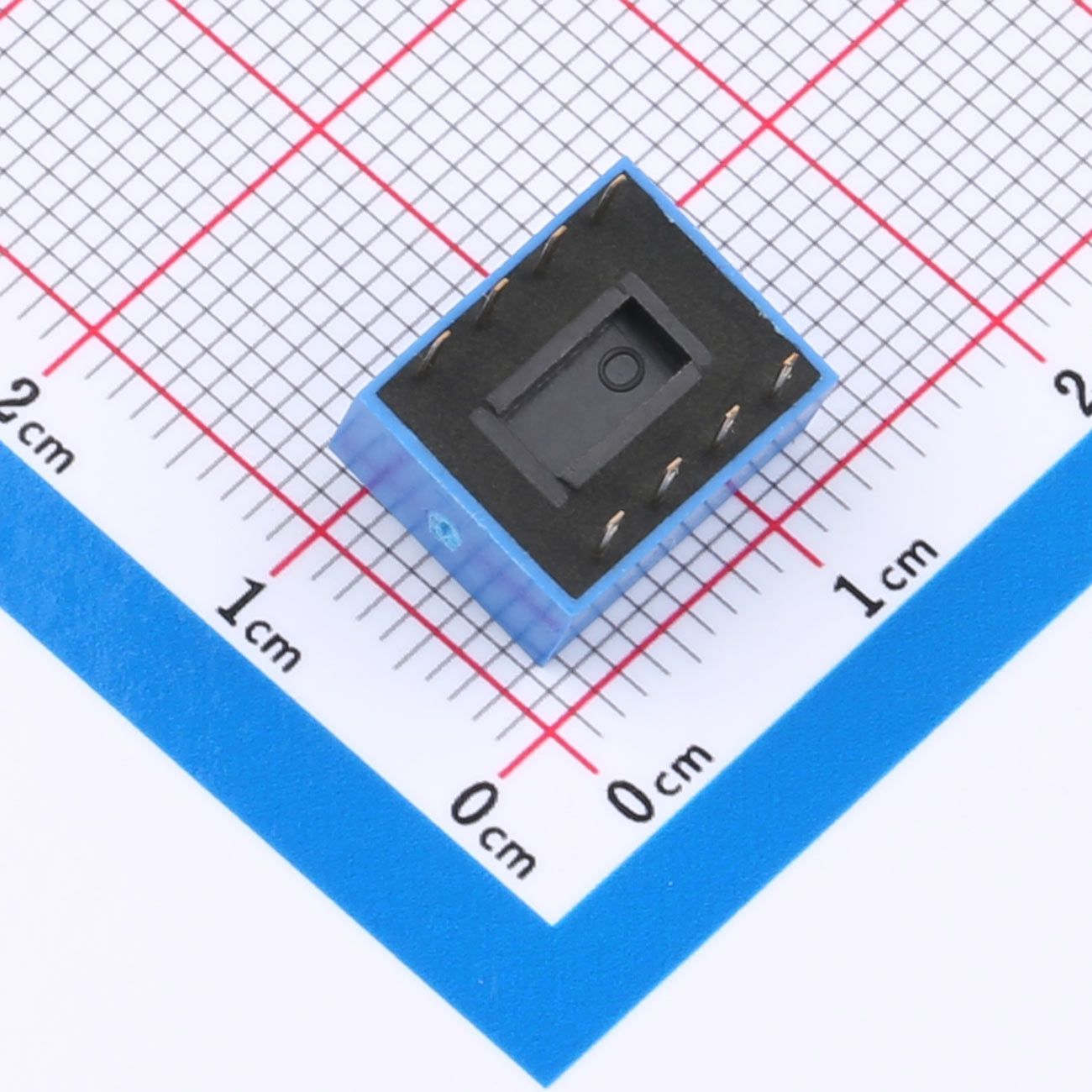

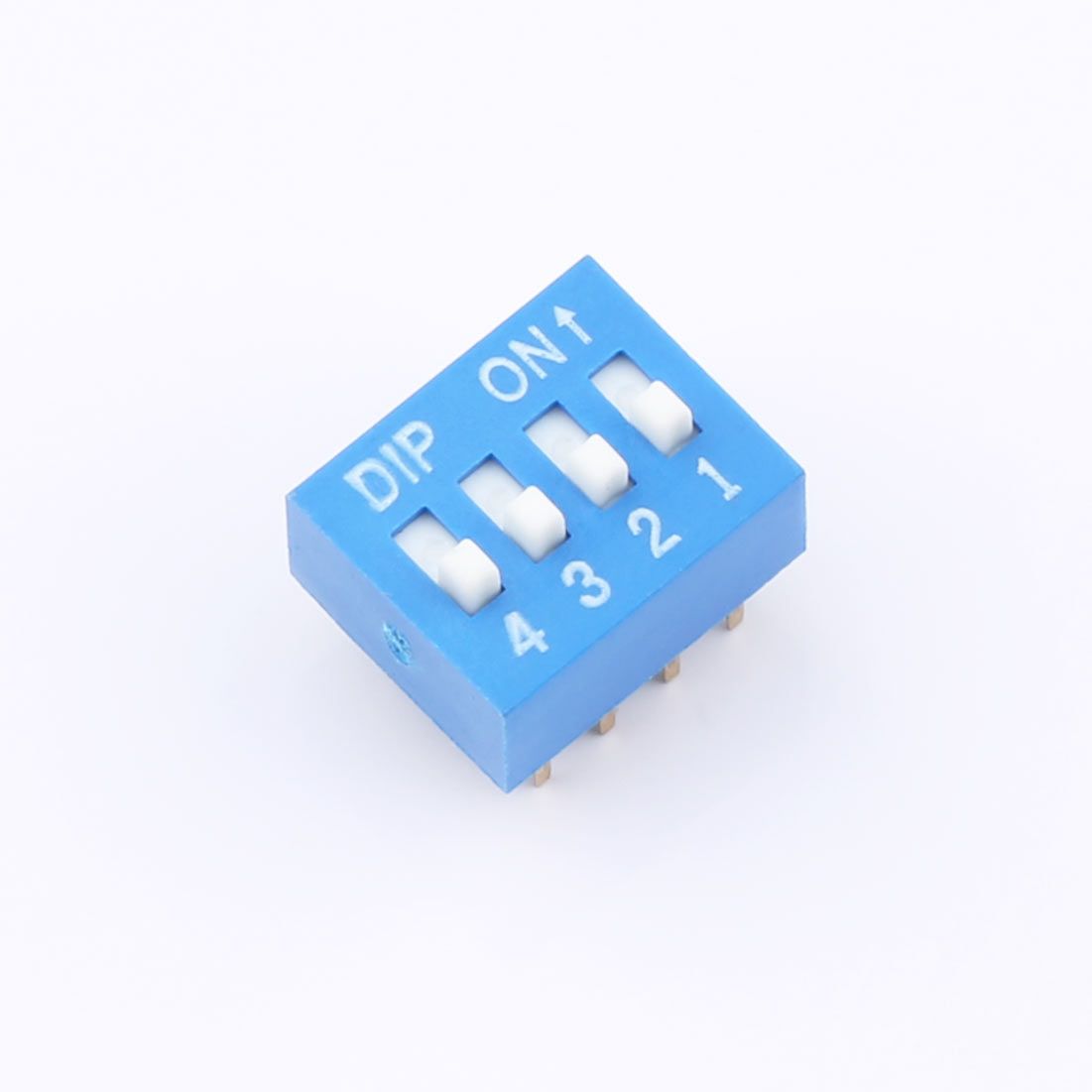

KH-BM425404DZ-FZ
Brand: Kinghelm
Model: KH-BM425404DZ-FZ
Package Type: Through-Hole (THT)
Packaging: Tube
Gross Weight: 1.3125 g (grams)
Features
- 4-position flat DIP switch, 2.54mm standard pitch
- Vertical through-hole mounting with raised flat actuator
- Reverse-printed marking on blue housing
- PC straight pins, DIP package
- SPST (Single Pole Single Throw) circuit
- Rated 25mA / 24V DC
- Tube packaging, 1.3125g unit weight
Advantages
- Crisp tactile feedback, precise and smooth switching
- High-visibility reverse marking reduces misoperation
- Industry-standard pitch, broad PCB compatibility
- Reliable contact performance, stable and durable
- Tube packaging protects pins from bending and damage
Applications
- Industrial control equipment
- Smart home devices
- Instruments and meters
- Communication equipment
- PCB development and debugging
- Address coding, parameter setting, circuit on/off switching
