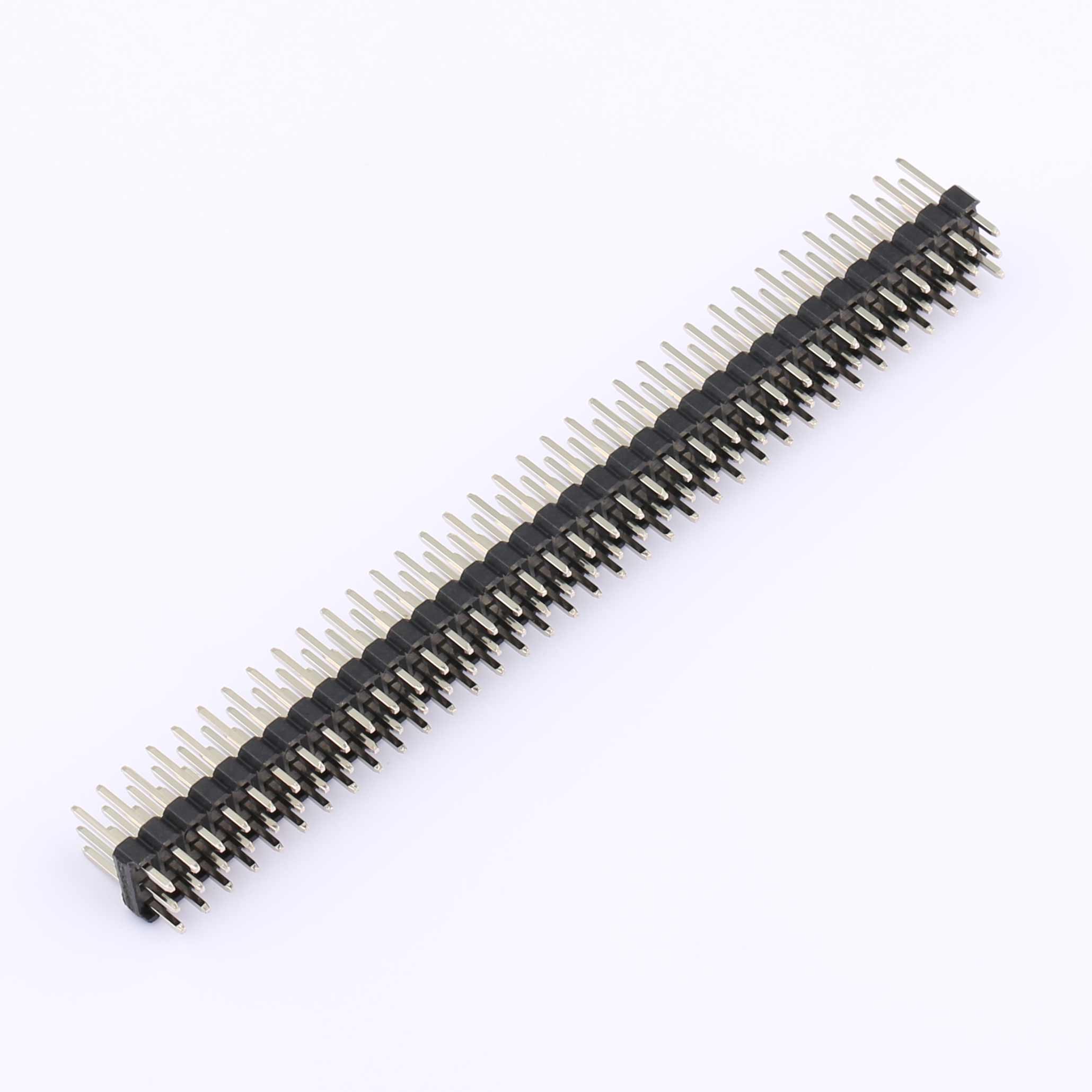

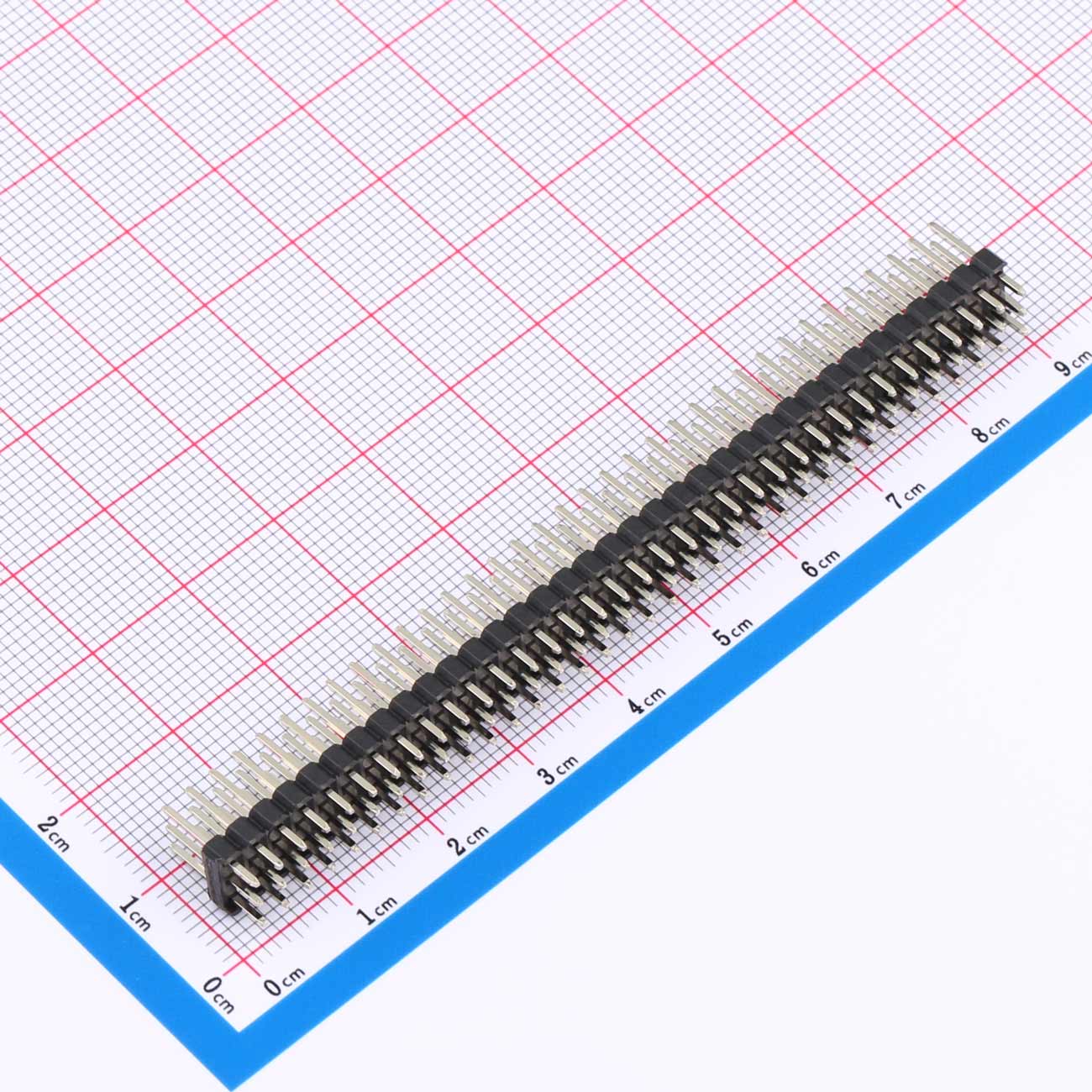

Pin Header Connector 3x35P | 3A | KH-2.54PH180-3X35P-L11.5 | High Voltage & Temperature Resistant
Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃
Product Benefits
●Efficient Current Handling
●High Insulation Resistance
●Low Contact Resistance
●High Voltage Capability
●Wide Temperature Range
●Long-Term Durability
Product Applications
●Consumer Electronics
●Automotive Systems
●Industrial Equipment
●Medical Devices
●Power Supply Systems
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
