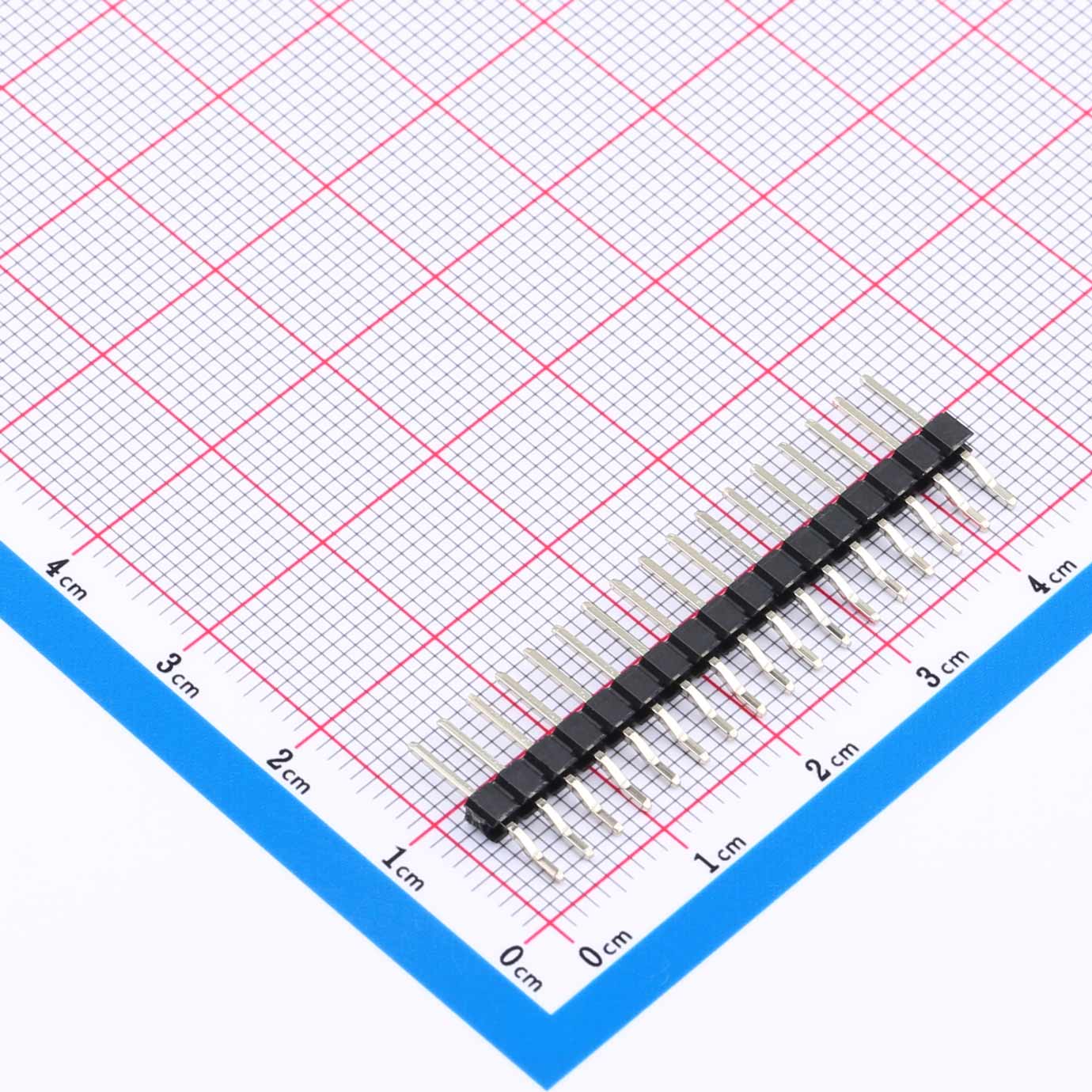

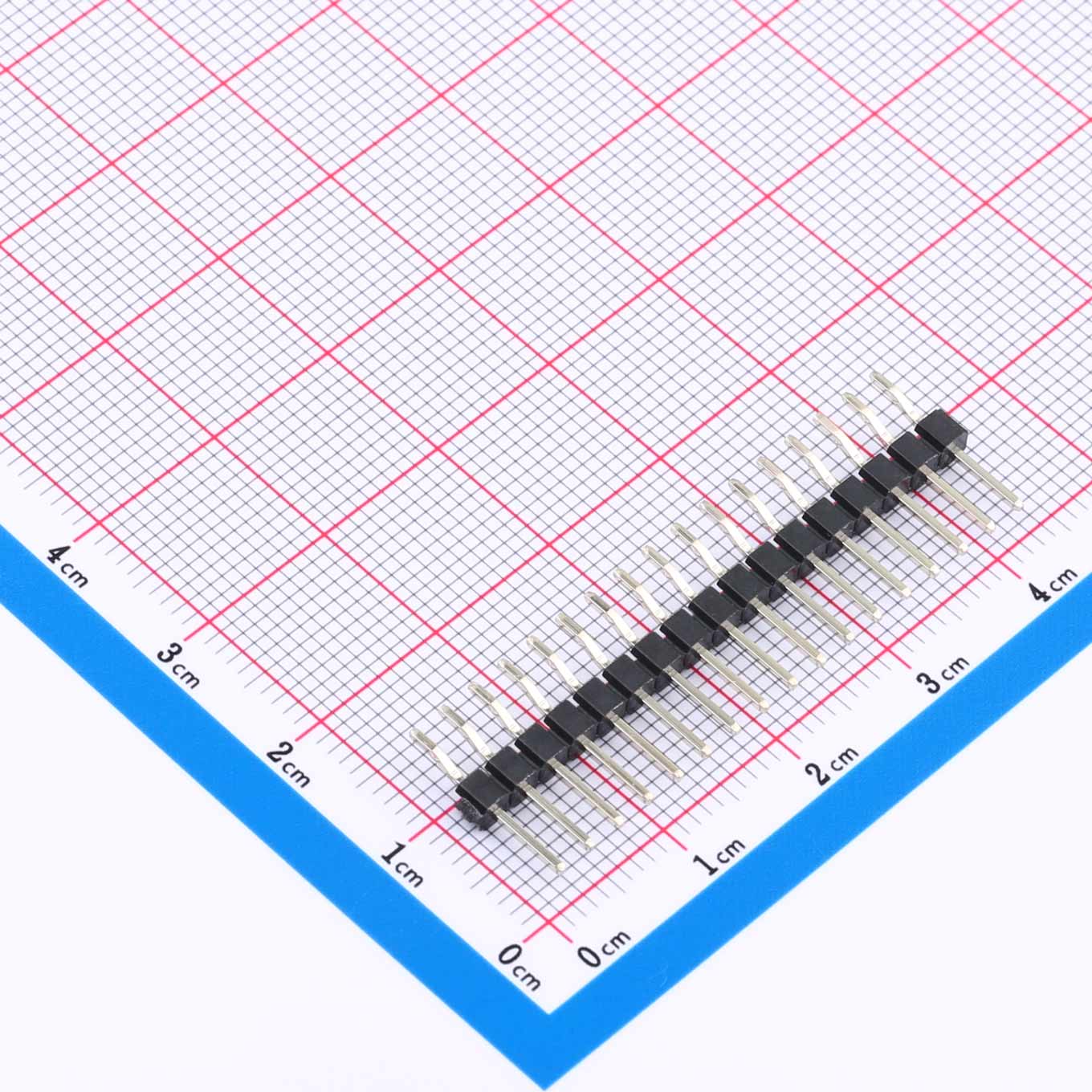

KH-2.54PH-1X17P-L13.5-WT Pin Header Connector – 17 Pins, 3A Current Rating, 1000 MΩ Insulation, AC 1000 V Tolerance
Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃
Product Features
●Pin Configuration 1x17 pins
●Current Rating 3 Amps
●Insulation Resistance Minimum 1000 MΩ
●Contact Resistance Maximum 20 MΩ
●Withstanding Voltage AC 1000 V
●Operating Temperature Range -40℃ to +105℃
Product Benefits
●Compact 17-Pin Design
●Dependable Current Rating
●Excellent Insulation Resistance
●Low Contact Resistance
●Robust Voltage Withstanding
●Wide Operating Temperature Range
