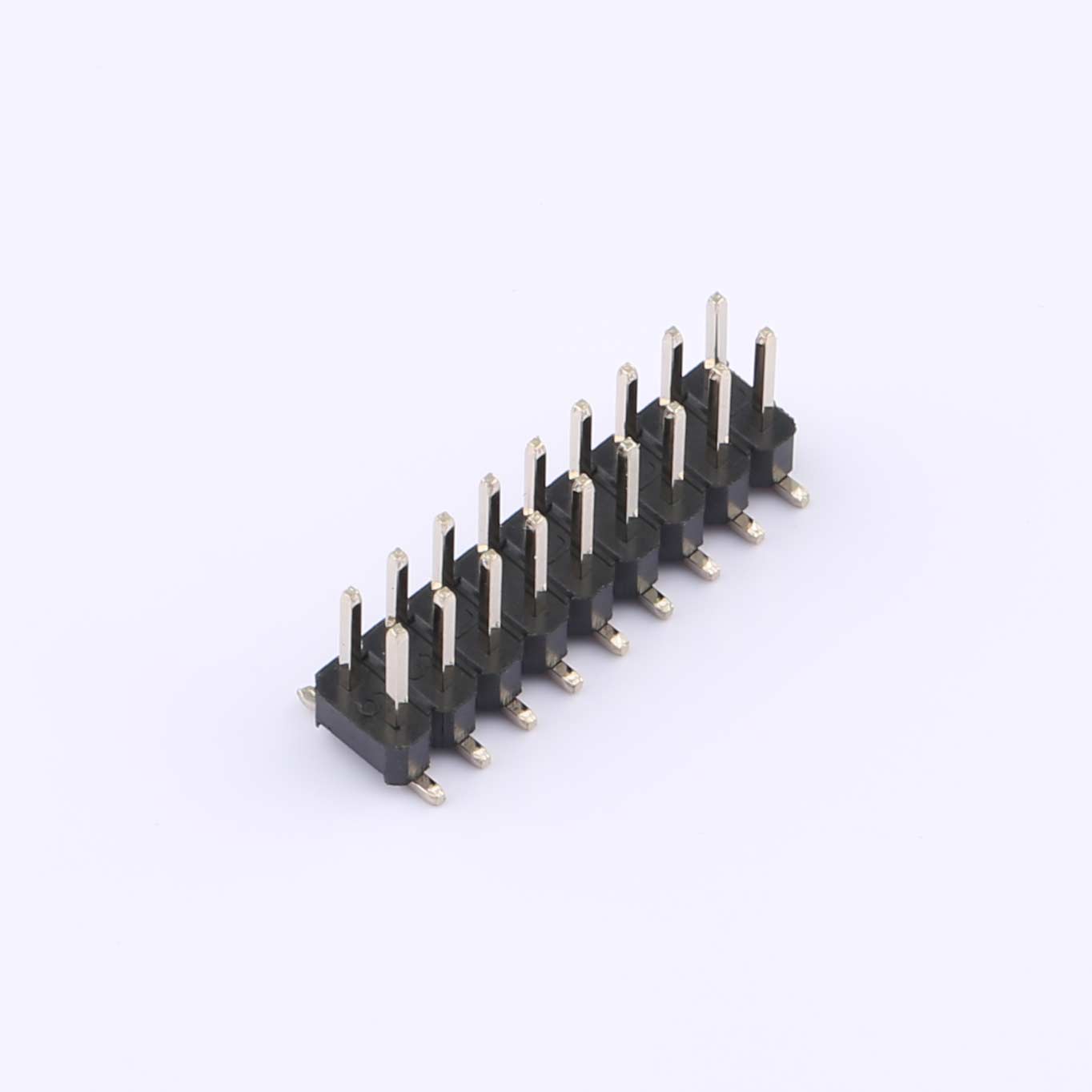

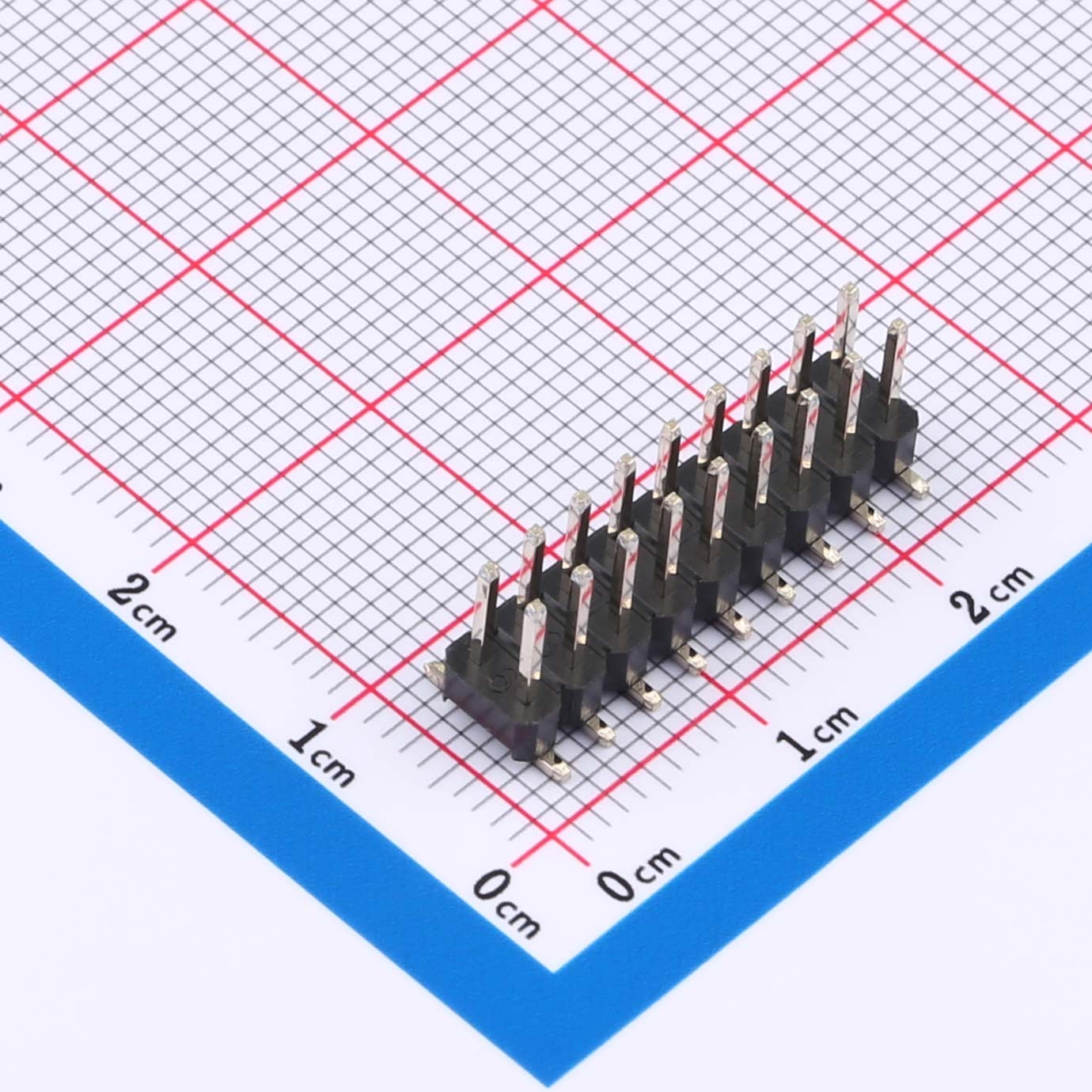

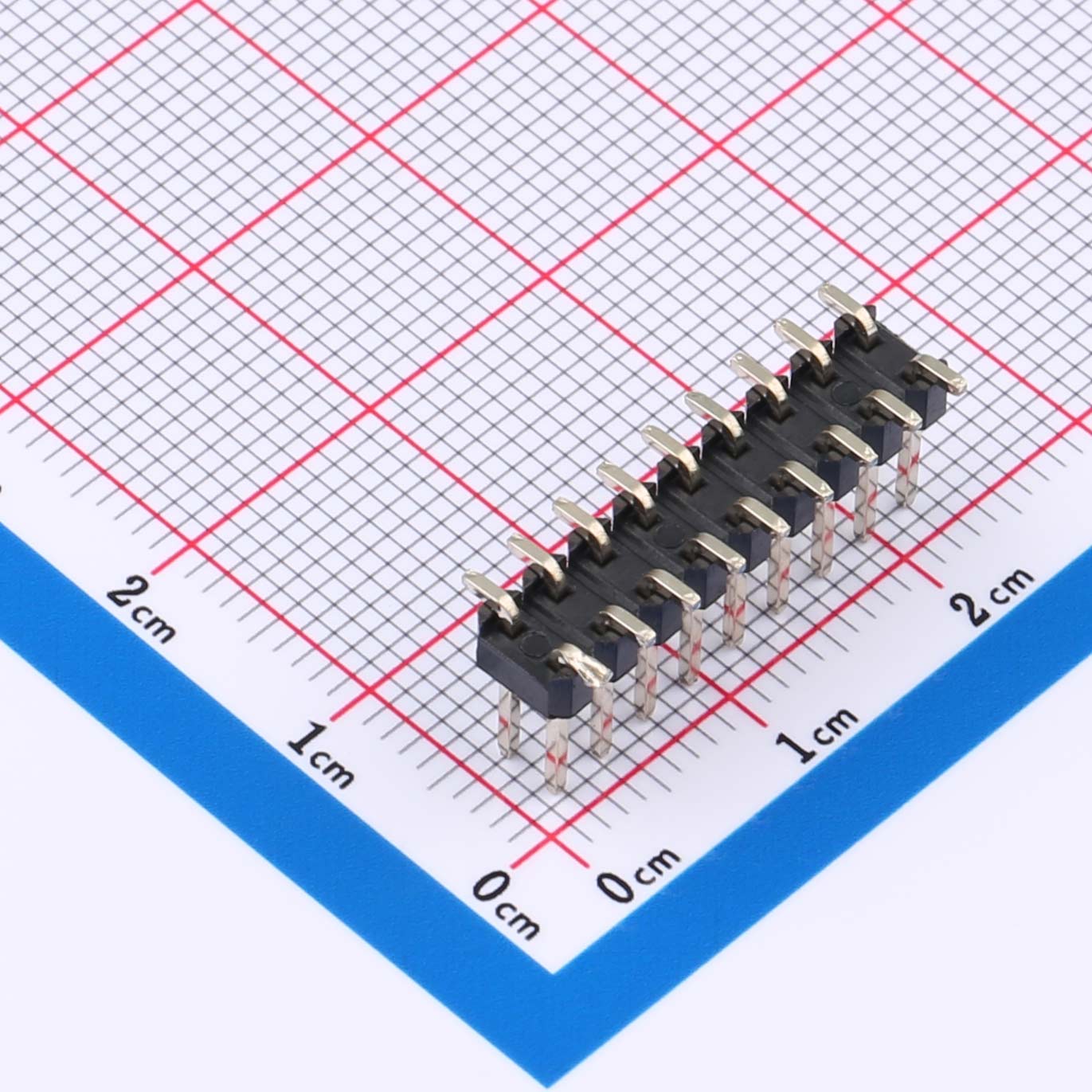

KH-2.54PH-2X9P-L11.0-SMT
Current Rating:3Amps
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Withstanding Voltage: AC 1000V
Operation Temperature:-40° to+105°
Product Features
●Pitch Size: 2.54mm
●Configuration 2 Rows, 9 Pins Each
●Lead Length: 11.0mm
●Surface Mount Technology (SMT)
Product Benefits
●Ensures Secure Electrical Connections
●Space-Saving Design
●Cost-Efficient Solution
●Facilitates Easy Assembly
Product Application
●PCB Integration
●Electronics Manufacturing
●Automotive Systems
●Industrial Control Panels
