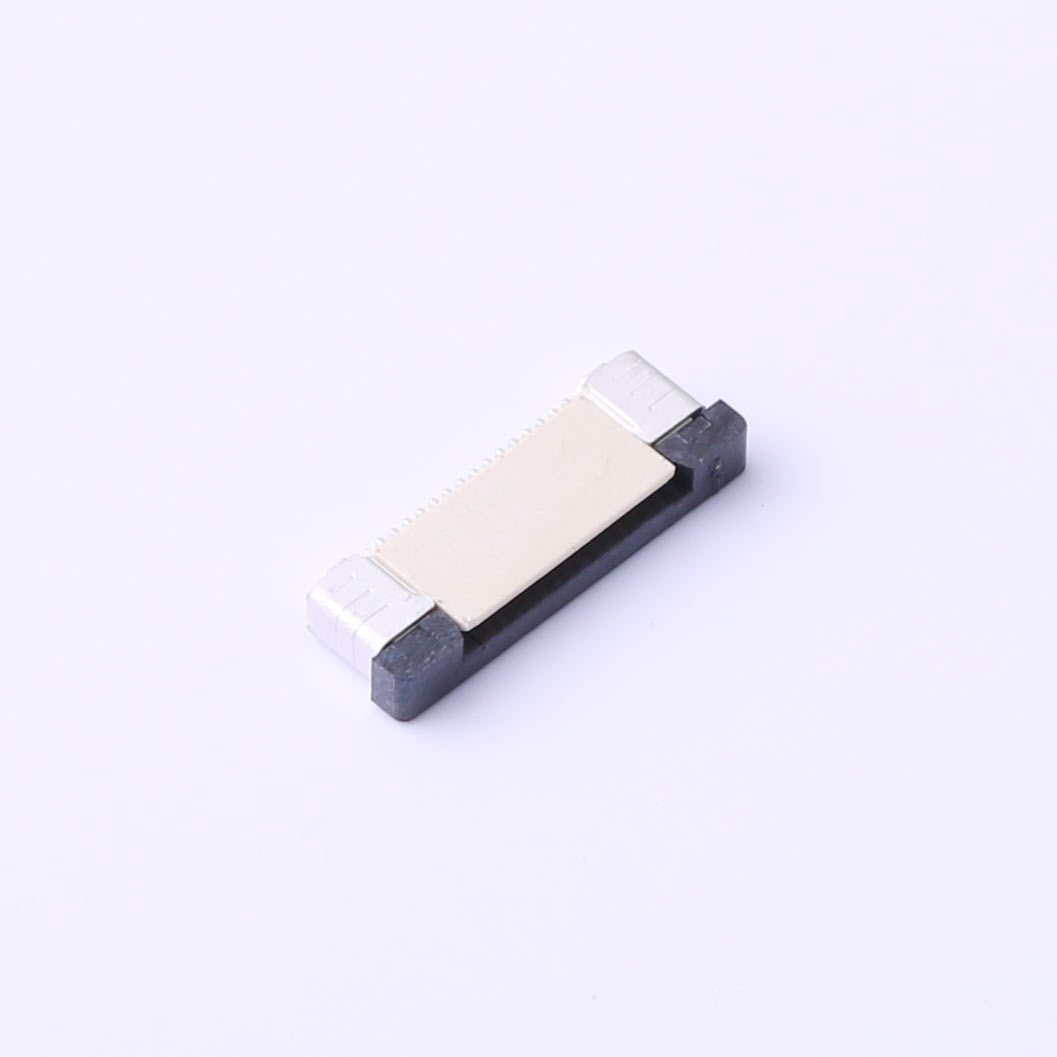

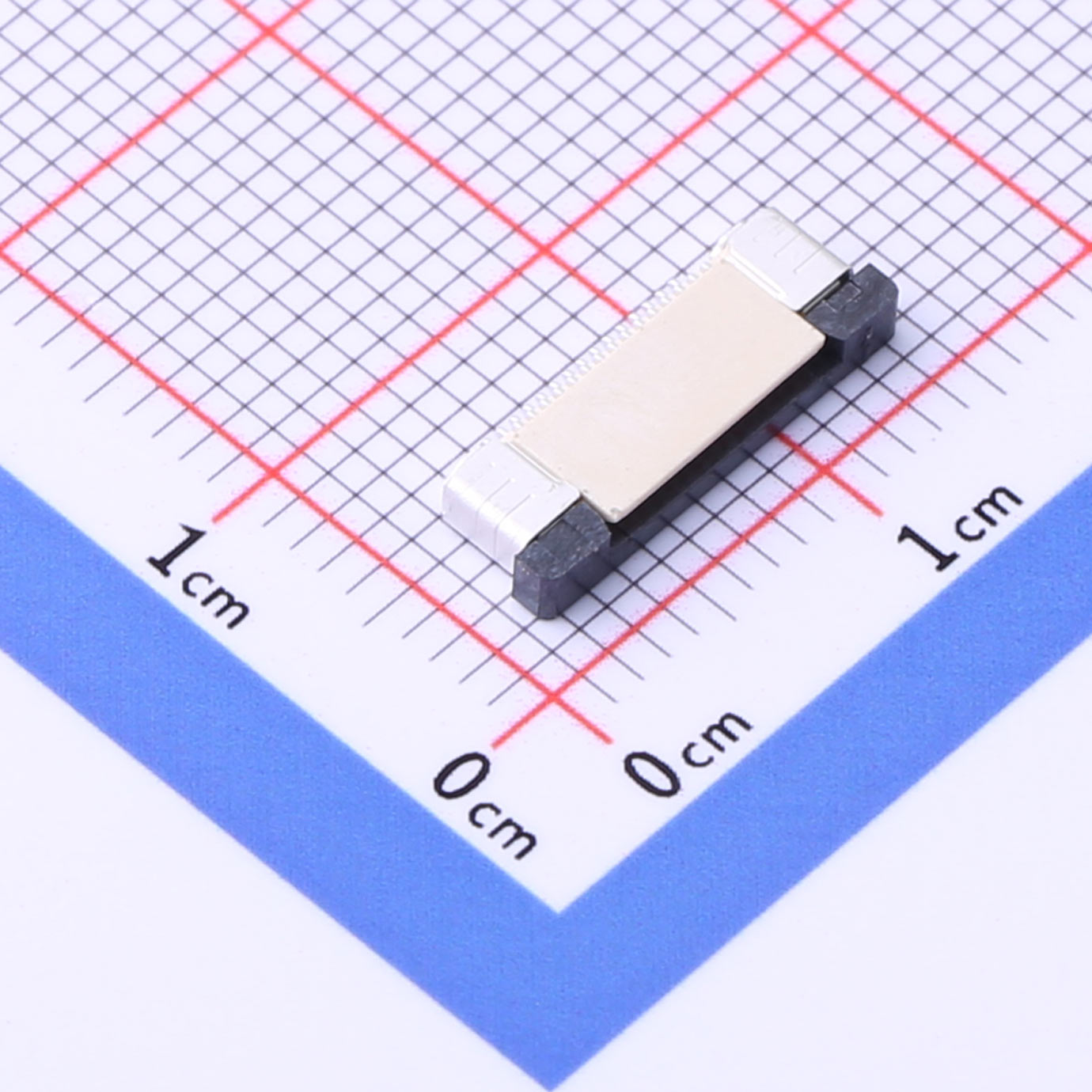

KH-CL0.5-H2.0-15PS
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
●Compact design with a 0.5mm pitch and 15 pins
●Drawer-style connection for easy and secure insertion
●High-quality materials ensure reliable electrical performance
●Suitable for various configurations, including wire-to-board
●Rigorously tested for consistent reliability in applications
Product Benefits
●Saves space in compact electronic devices
●Flexible drawer mechanism enhances user convenience
●Provides strong connections to minimize failure rates
●Simplifies maintenance and replacement processes for users
Product Applications
●Used in smartphones for connecting displays to motherboards
●Ideal for tablets linking battery units and circuit boards
●Common in printers for reliable data transfer between components
●Essential for automotive applications to ensure safe connections
●Found in medical devices for reliable performance in critical situations
