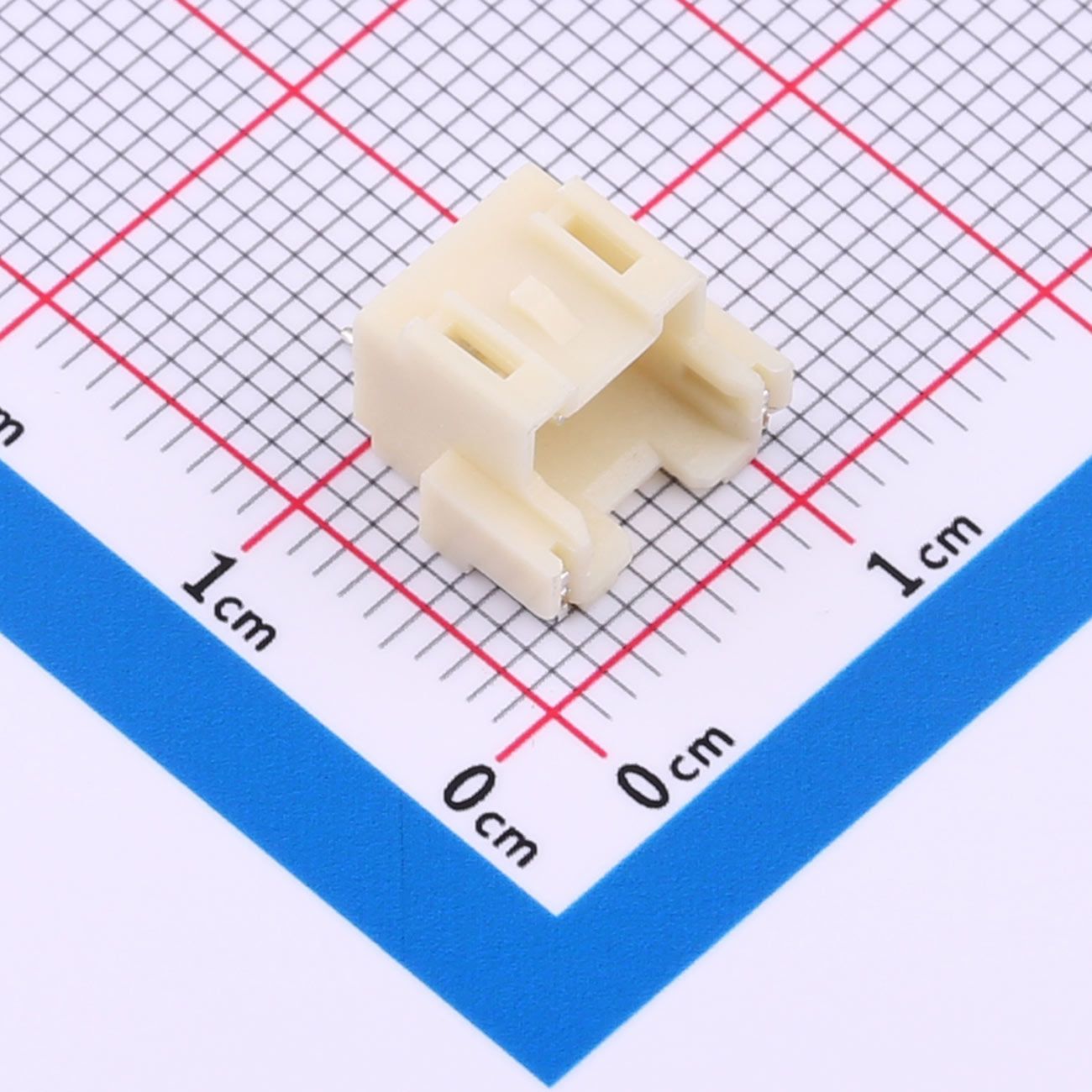

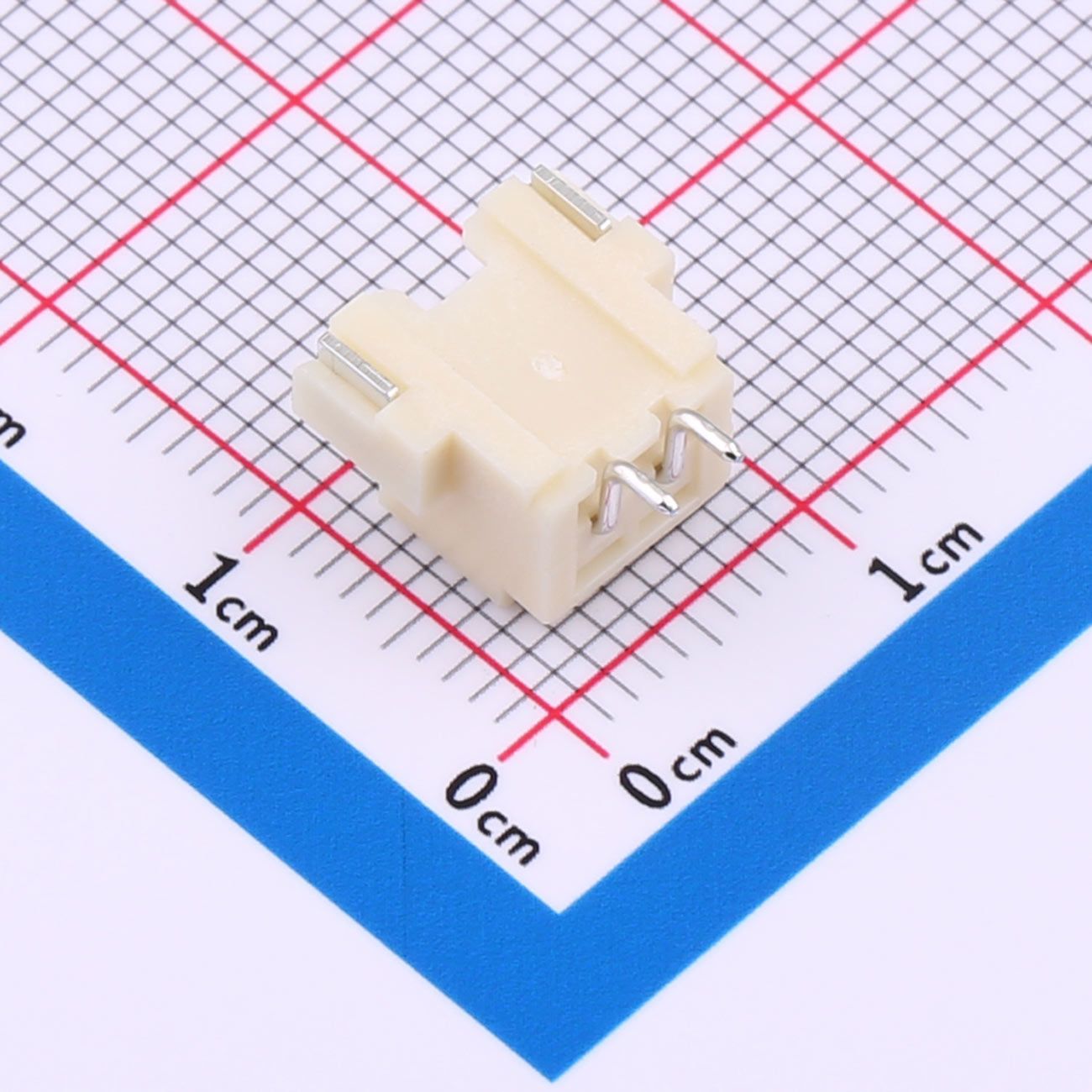

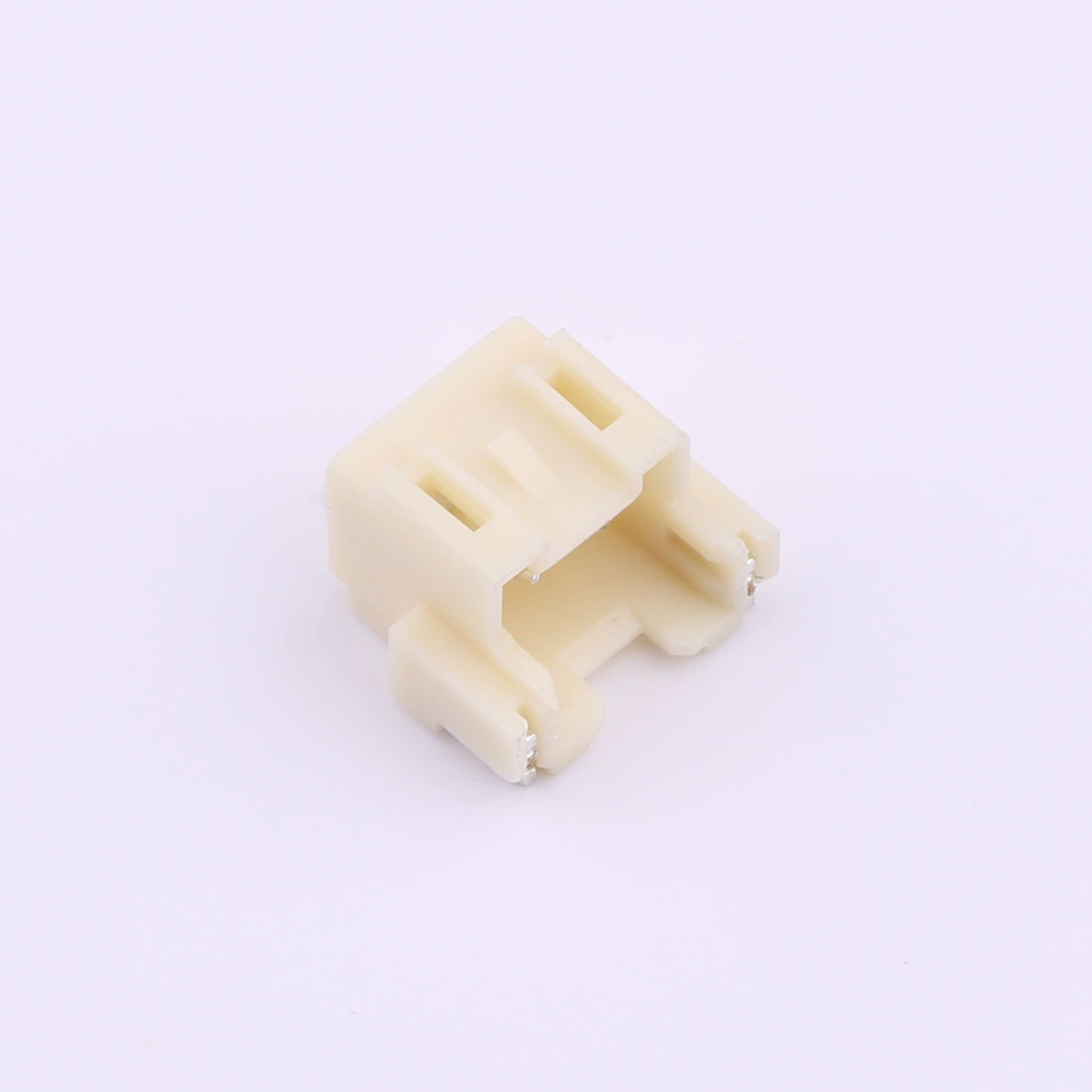

Wire-to-Board Connector, 2.5mm Pitch, 1x2P, SMD, KH-2508-02AWB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch, single-row 2-pin structure
● Surface mount horizontal
● Rated current: 3A AC/DC
● Rated voltage: 250V AC/DC
● Compact and robust design
Product Benefits
● Secure and stable connection
● Saves PCB space
● Simple surface mount installation
● Reliable performance under load
Product Applications
● Industrial control systems
● Consumer electronics
● LED devices
● Communication equipment
● Power supplies
