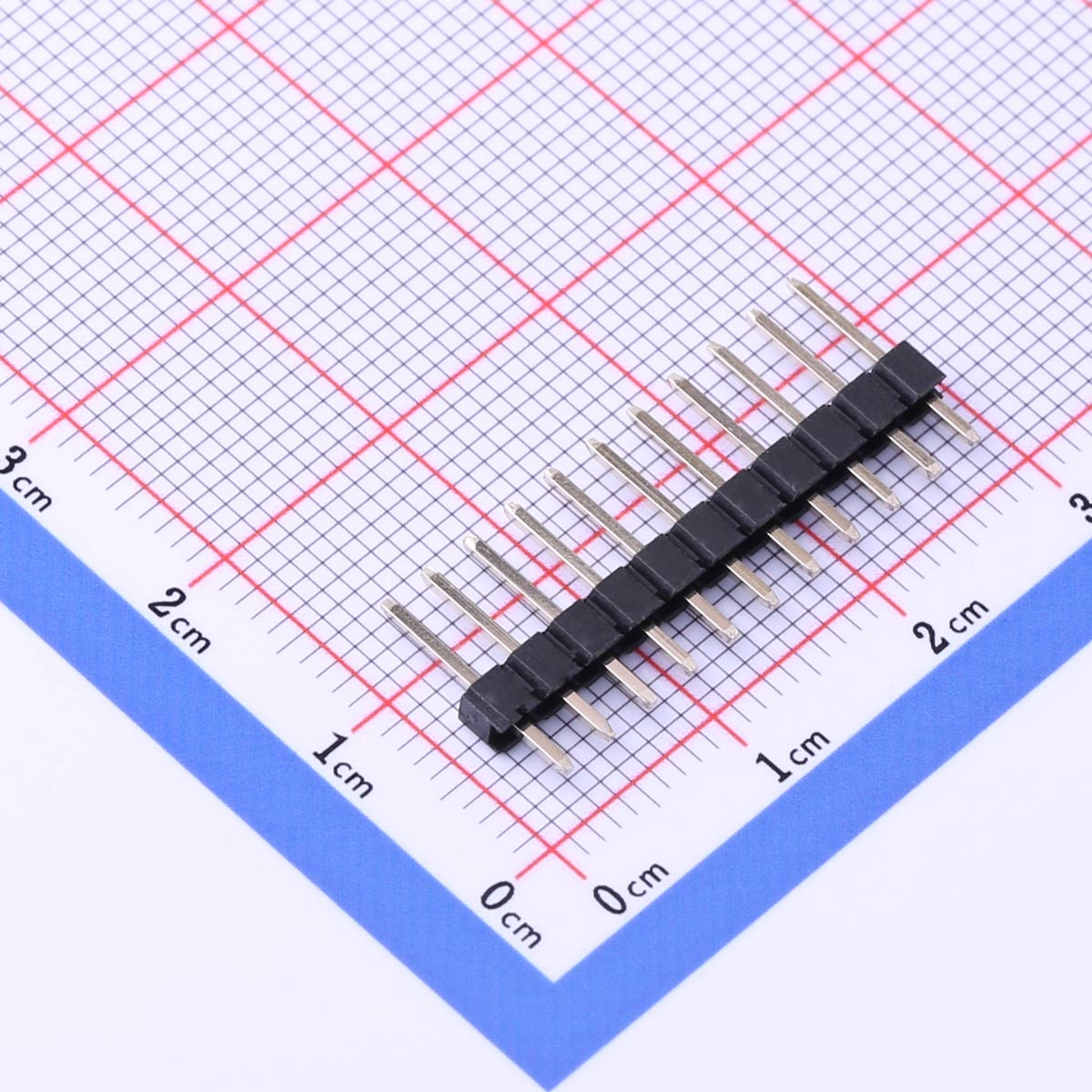

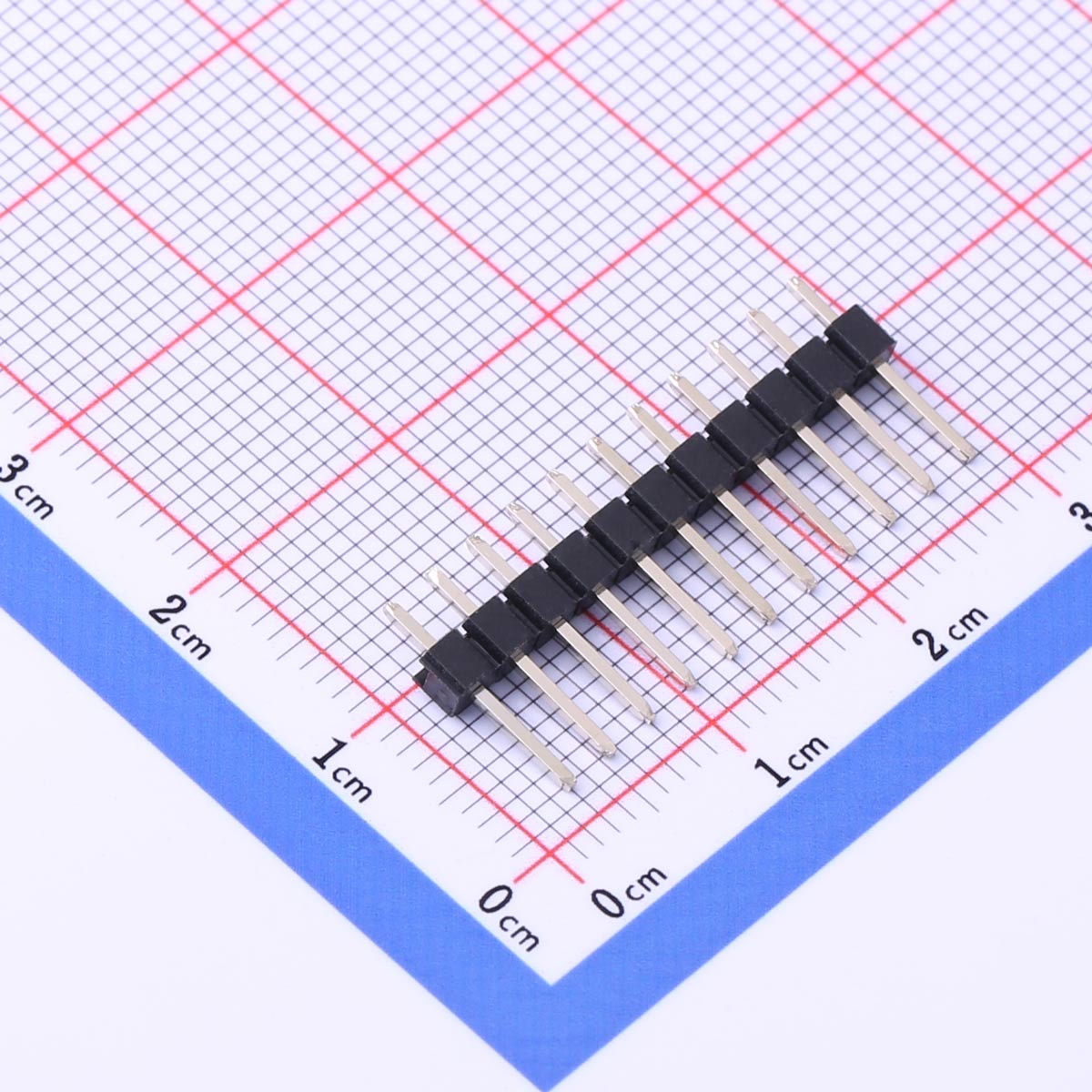

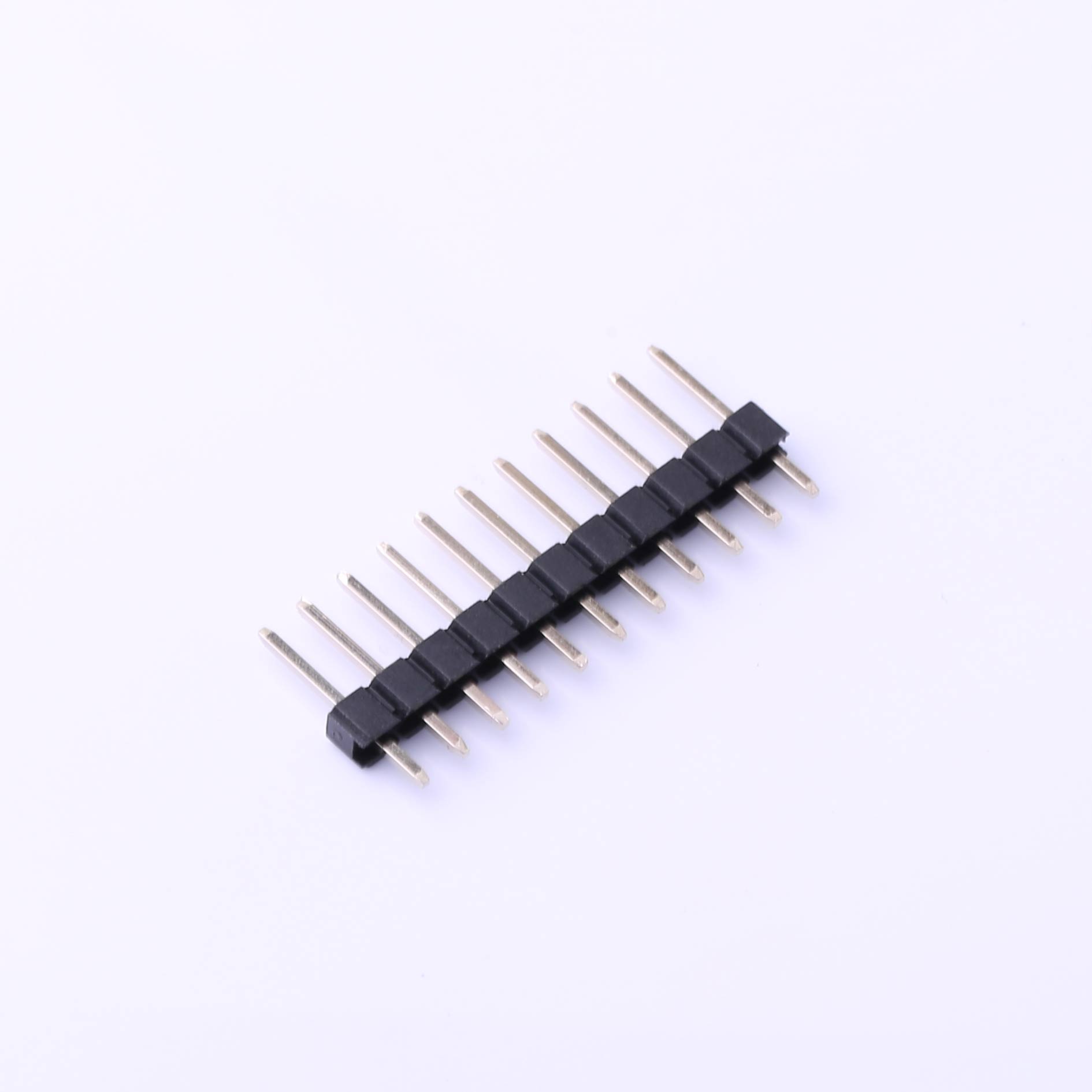

KH-2.54PH180-1X11P-L11.5
Current Rating:3 Amps
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Withstanding Voltage: AC 1000V
Operation Temperature:-40℃to +105℃
Product Features
●2.54mm pitch
●180-degree header
●11-pin single row
●11.5mm body length
●PH series interface
Product Benefits
●Secure, stable connections
●Space-saving design
●Cost-effective option
●High-density wiring
●Durable construction
Product Application
●Ideal for PCBs
●Suitable for tight spaces
●Used in electronics
●Supports various devices
●Enhances system layout
