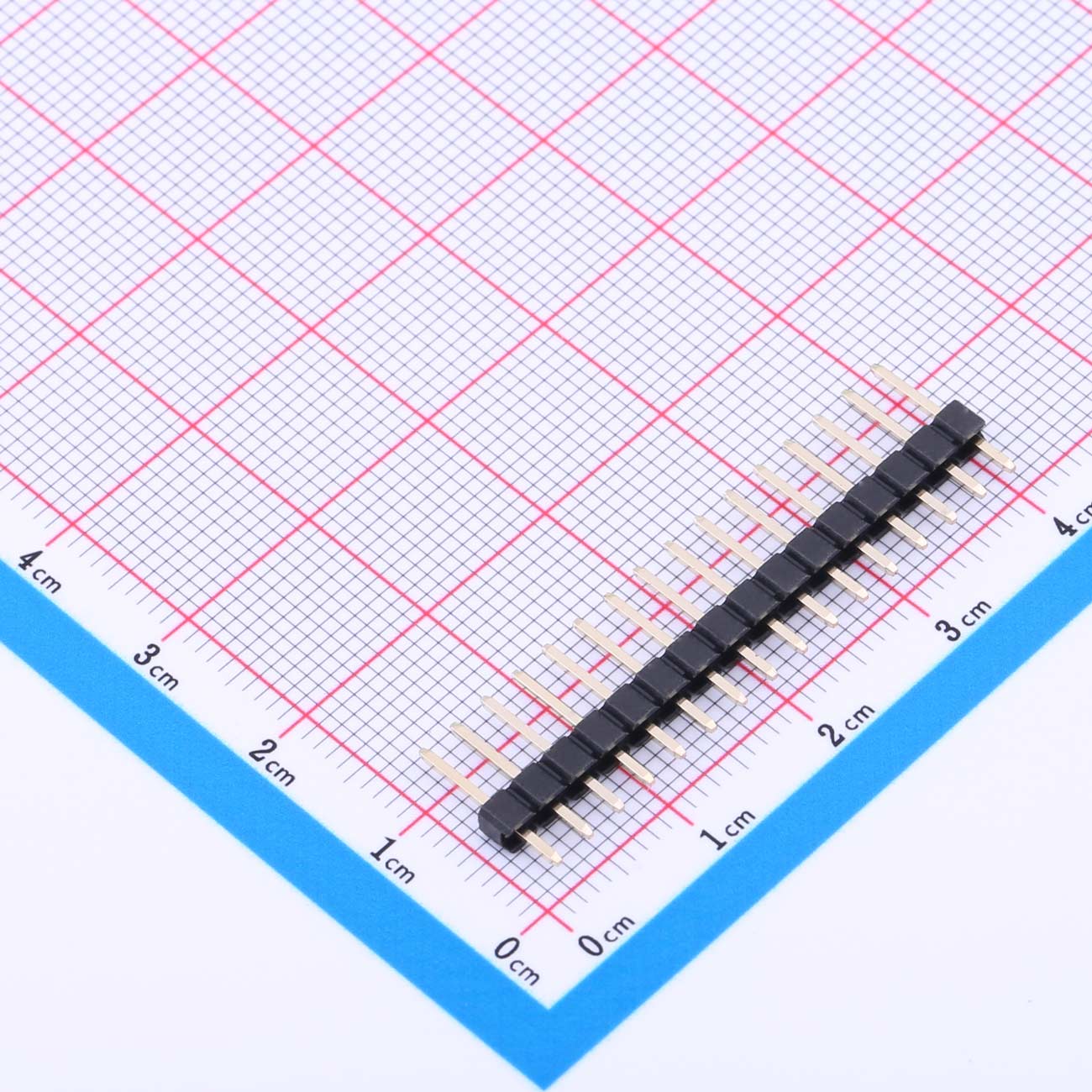

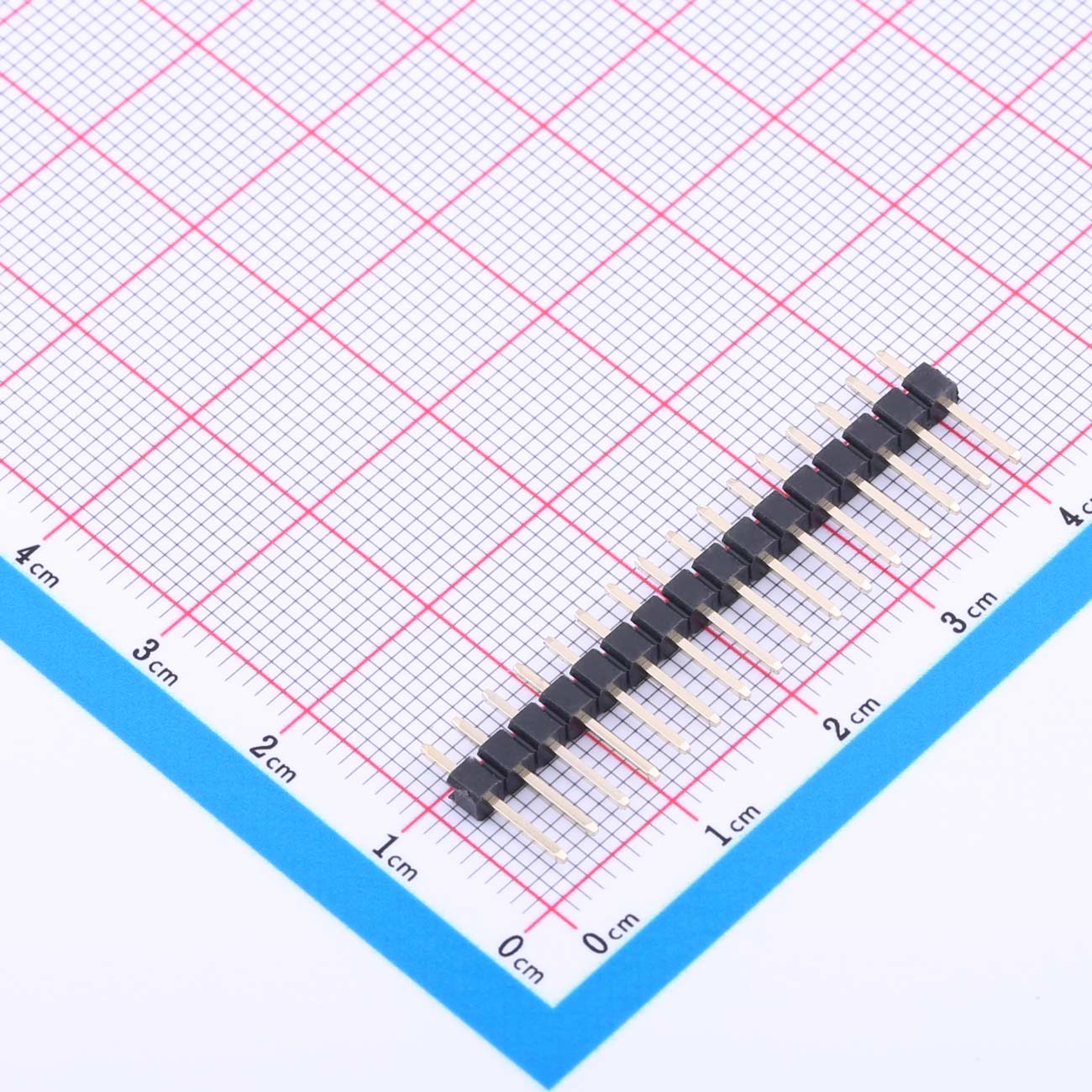

KH-2.54PH180-1X16P-L11.5
Current Rating:3 Amps
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Withstanding Voltage: AC 1000V
Operation Temperature:-40℃to +105℃
Product Features
●2.54mm pitch, 180-degree header
●1 row, 16 pins configuration
●11.5mm body length
●PCB mount, through-hole type
●Gold-plated contacts
Product Benefits
●High-density pin layout
●Secure and stable connections
●Space-saving design
●Cost-effective solution
●Reliable performance in harsh conditions
Product Application
●Industrial control systems
●High-density PCB assemblies
●Compact electronic devices
●Data communication interfaces
●Automation and robotics
