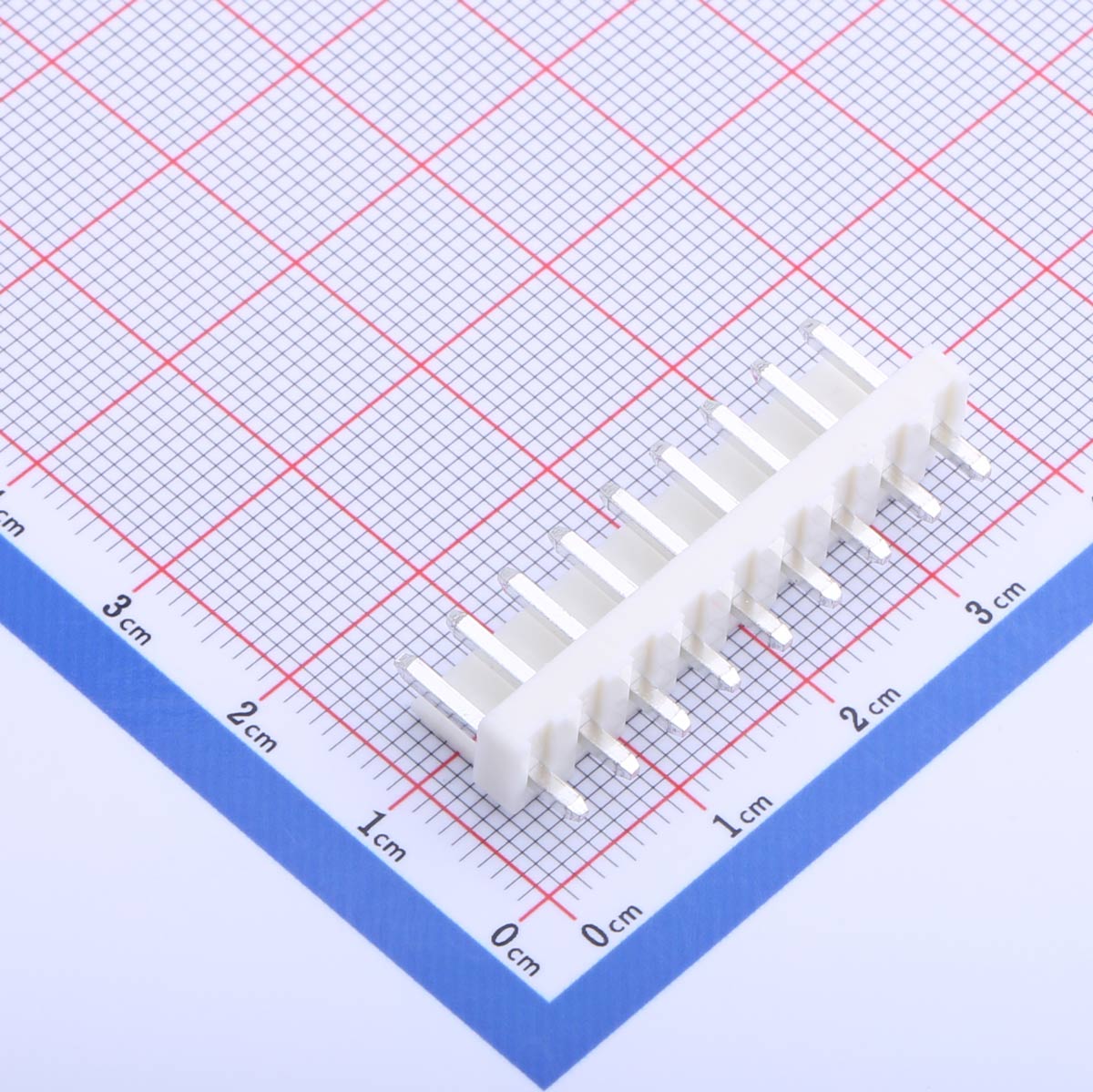

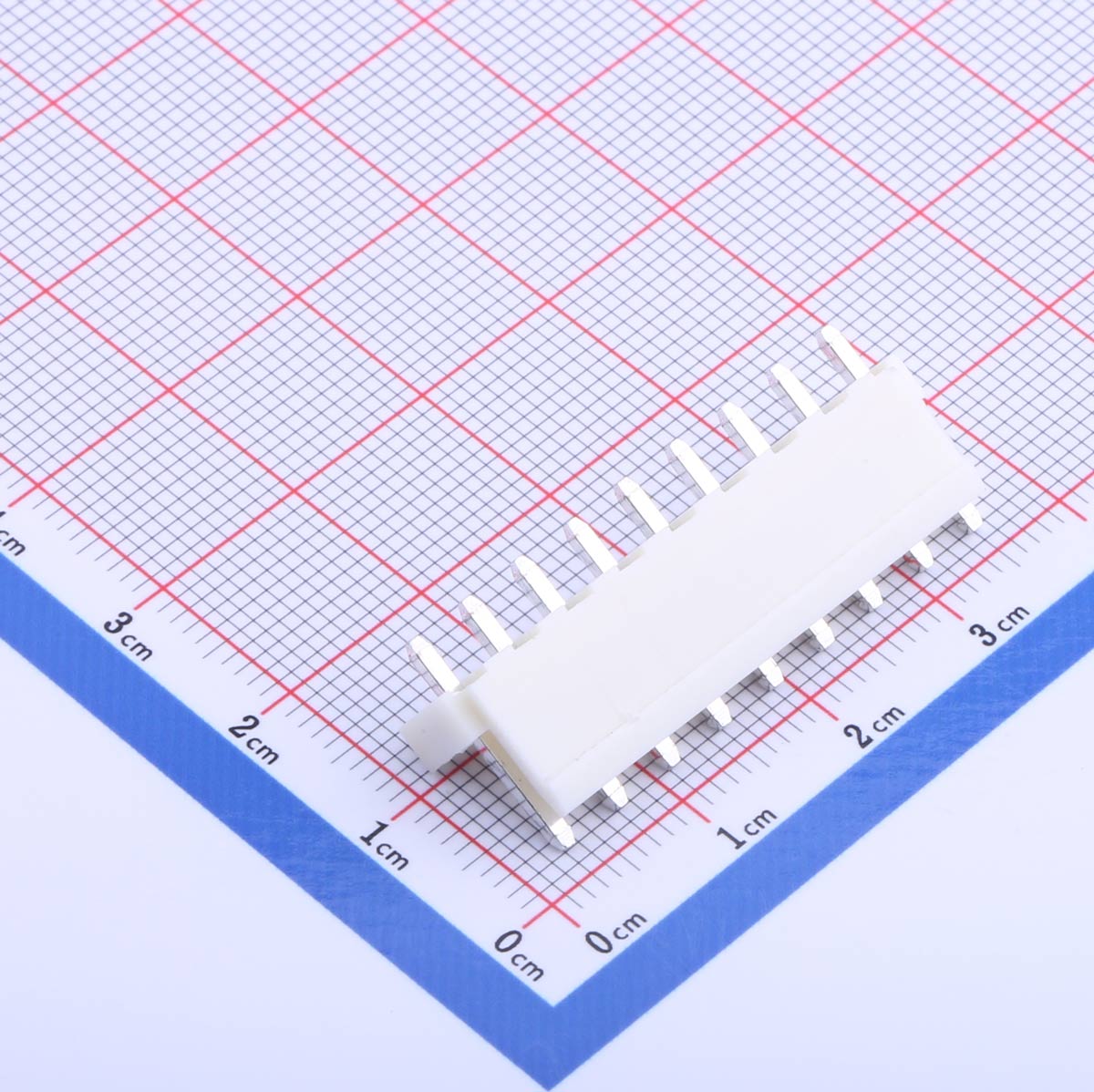

KH-VH-9P-Z, Wire to Board Connector, VH connector, 3.96mm Pitch, 1x9P
Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Features
●Pitch: 3.96mm
●Connector Type: Board-to-wire / Wire-to-wire
●Design: 9-pin male header, single-row
●Rated Current: Up to 7A
●Temperature Range: -25°C to +85°C
●Durability: High-quality materials and precise manufacturing for long lifespan
Advantages
●Reliable and stable electrical connection
●Compact design saves board space
●High current handling capability (up to 7A)
●Versatile and flexible for various applications
●Durable with low maintenance costs
Applications
●Electronic devices
●Communication equipment
●Industrial control systems
●Circuit boards, displays, and instrumentation
●Anywhere board-to-wire or wire-to-wire connections are required
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
