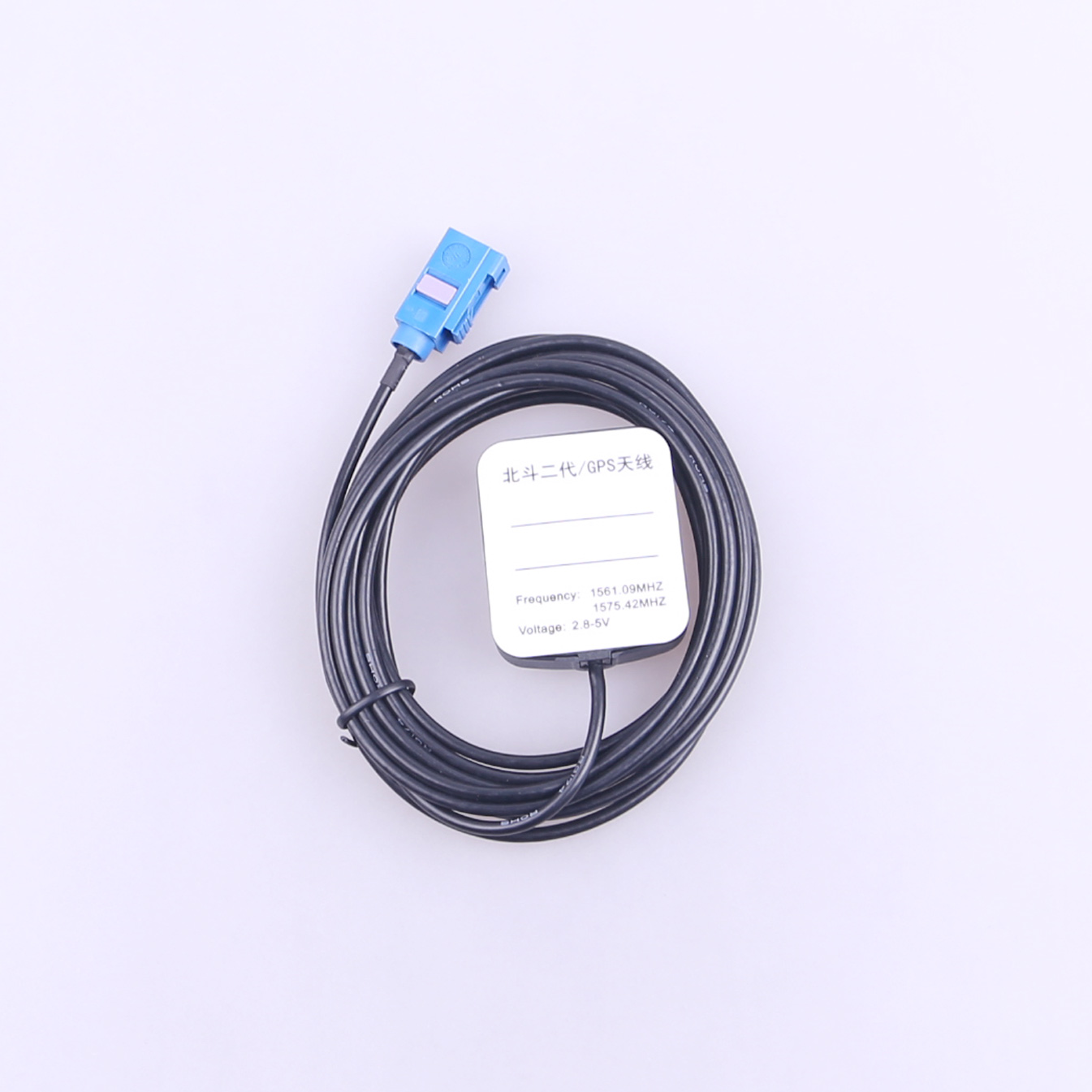

KH1GBC-45, Beidou/GPS External Antenna,Cable RG174,L=3M
Gain: 28±2 dB
Impedance: 50Ω
Operating Temperature: -40°C to +85°C
Dimensions: 45mm x 38mm x 15mm
Weight: 50g
Product Features
●High-performance GNSS external antenna
●Compatible with Beidou and GPS systems
●RG174 L 3M-FAKRA cable for easy installation
●Compact and lightweight design
●Weather-resistant and durable construction
Application Areas
●Vehicle tracking and navigation
●Marine navigation
●Surveying and mapping
●Agriculture and forestry
●Aviation and aerospace
