Kinghelm RF Coaxial Connectors: Safeguarding Intelligent Connectivity for All!

In today's information-driven and intelligent era, efficient, stable, and timely signal transmission has become an indispensable function for a wide range of smart products. Kinghelm (www.kinghelm.com.cn) and its "Kinghelm" brand innovative RF coaxial connectors – KH-BNC50-3511, KH-SMA-K513-G, and KH-SMA-KE-Z – have won market and customer recognition with their core strengths of "high reliability, high adaptability, and high cost-performance." "Kinghelm, Connecting the World." Kinghelm (www.kinghelm.net) emphasizes technological innovation and quality control in product development, having obtained ISO9001, ISO14001, RoHS, REACH, and Dun & Bradstreet certifications, ensuring product quality and performance from the source. Kinghelm is headquartered in Longhua District, Shenzhen, China, and its Dongguan Tangxia laboratory is equipped with a full anechoic chamber, network analyzers, and other instruments, enabling rapid development and debugging of new products. Its manufacturing base is located in Luzhai County, Guangxi, with multiple automated assembly lines to ensure on-time, high-quality delivery of large-volume orders. Kinghelm implements information-driven, digital, and process-based management. Rooted in China, with a global vision and international standards, it provides products and technical services to tens of thousands of customers worldwide.

The following are three best-selling products from Kinghelm in recent years:

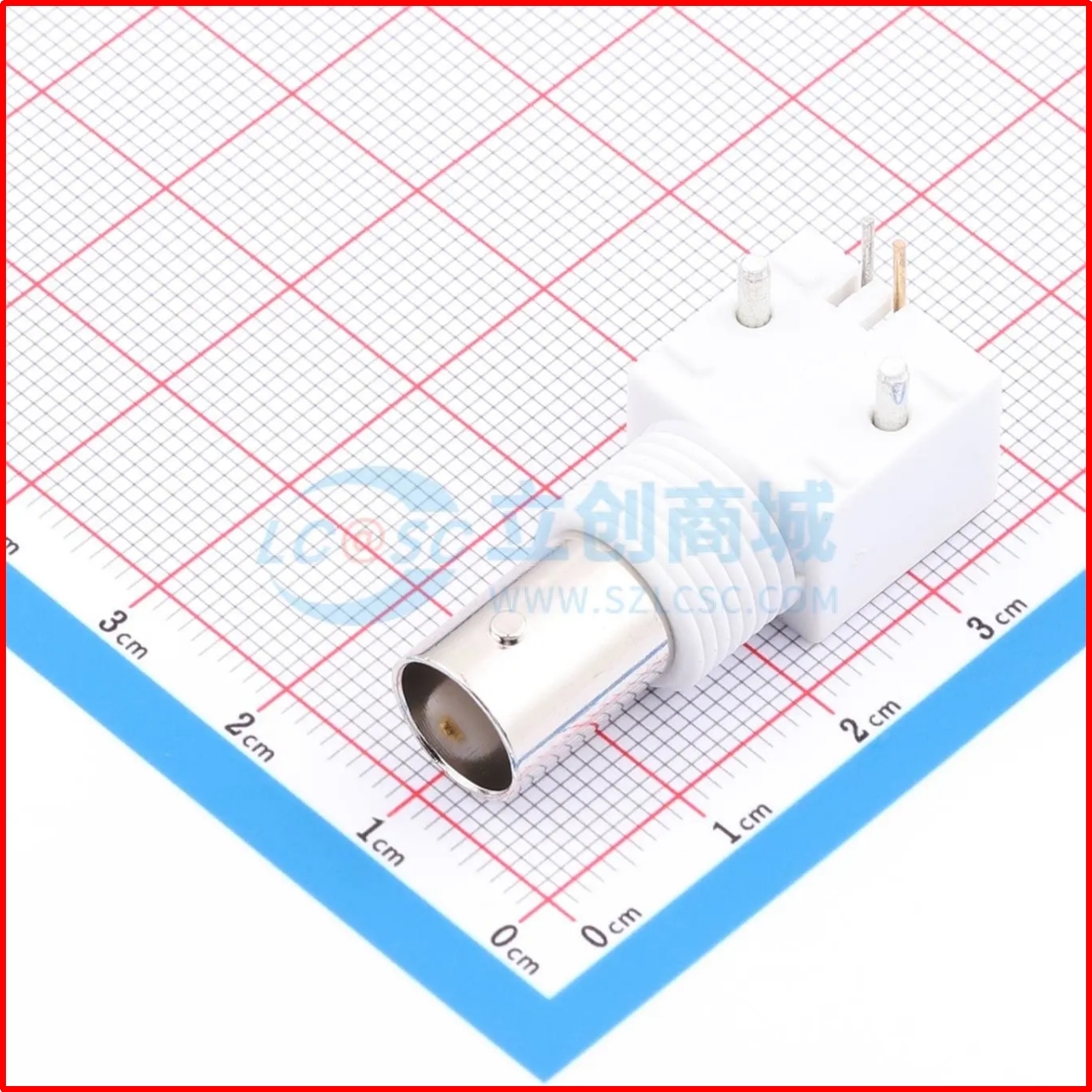

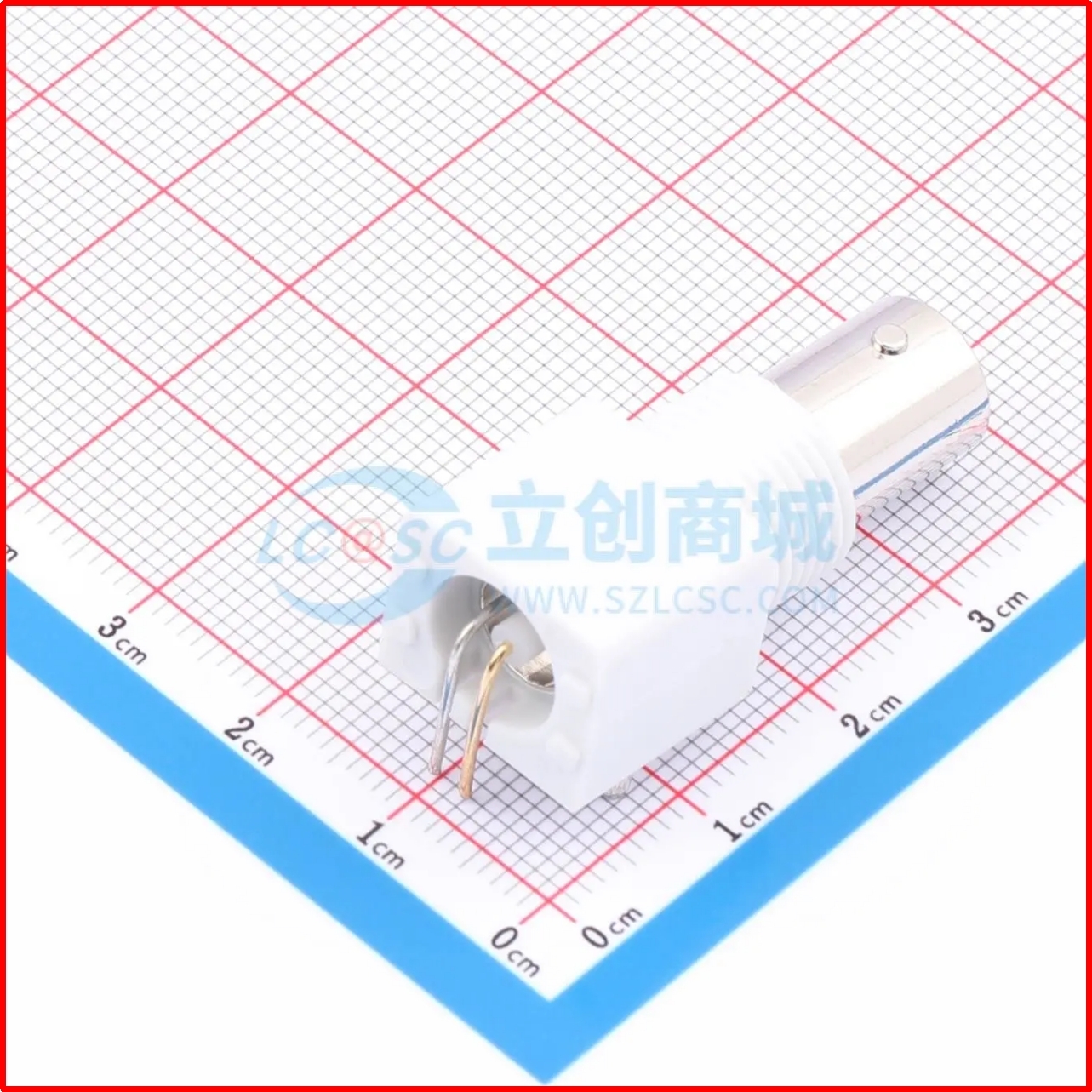

Kinghelm KH-BNC50-3511 Product Image (1)

Kinghelm KH-BNC50-3511 is a female, right-angle, board-end BNC connector designed for applications requiring stable and efficient signal transmission. It features a zinc alloy shell with an insulating white plastic housing, weighs 10.6g, is packaged in trays, has a plug-in termination, impedance of 50Ω, maximum frequency of 3GHz, and operates over a temperature range of -55℃ to +155℃.

Kinghelm KH-BNC50-3511 Product Image (2)

Kinghelm's white BNC connector KH-BNC50-3511 stands out in signal transmission with its excellent performance, reliable connection stability, and wide application fields.

Product Features:

1. Rugged and durable housing;
2. High-quality inner conductor and insulating materials;
3. Convenient plug-in mating;
4. Reliable bayonet locking mechanism.

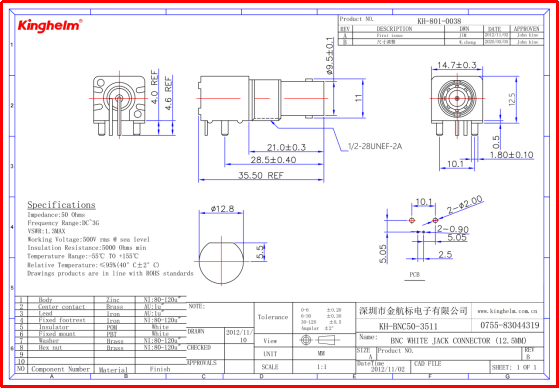

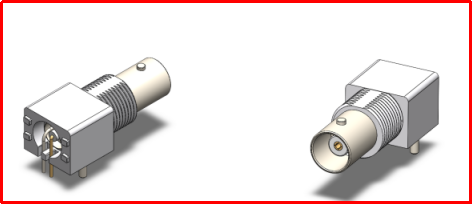

Kinghelm KH-BNC50-3511 3D Drawing

Product Advantages:

1. Robust connection design provides excellent anti-interference performance and stable signal transmission;
2. High-quality materials and exquisite craftsmanship ensure long-term stable operation in harsh environments;
3. Easy plug-in mating and bayonet locking enable faster, safer connections;
4. Supports frequencies up to 3GHz, meeting diverse signal transmission needs from low to high frequencies.

Kinghelm KH-BNC50-3511 Datasheet

Applications:

Kinghelm KH-BNC50-3511 RF connectors are typically used for RF signal transmission and can also serve as pluggable terminal blocks. They are widely used in broadcast television, security monitoring, communication testing, instrumentation, and other fields.

Precautions:

1. Ensure the connector interface is clean and free of foreign matter to avoid affecting signal transmission quality.
2. Handle gently during insertion and removal; avoid excessive force that may damage the connector.
3. Pay attention to operating temperature and humidity conditions to ensure the connector works within specified limits.

Kinghelm's product portfolio includes Beidou/GPS antennas, Bluetooth and Wi-Fi antennas, and a range of RF jumper cables; signal connectors, board-to-board connectors, board-end sockets and headers, switch series products; as well as custom medical and automotive wiring harnesses, non-standard probes and connectors, and supporting services including drafting, mold opening, testing, and mass production. Kinghelm products are used in new energy vehicles, smart terminals, smart cities, industrial internet, low-altitude drones, commercial aerospace, and other fields, serving global customers with technology and products.

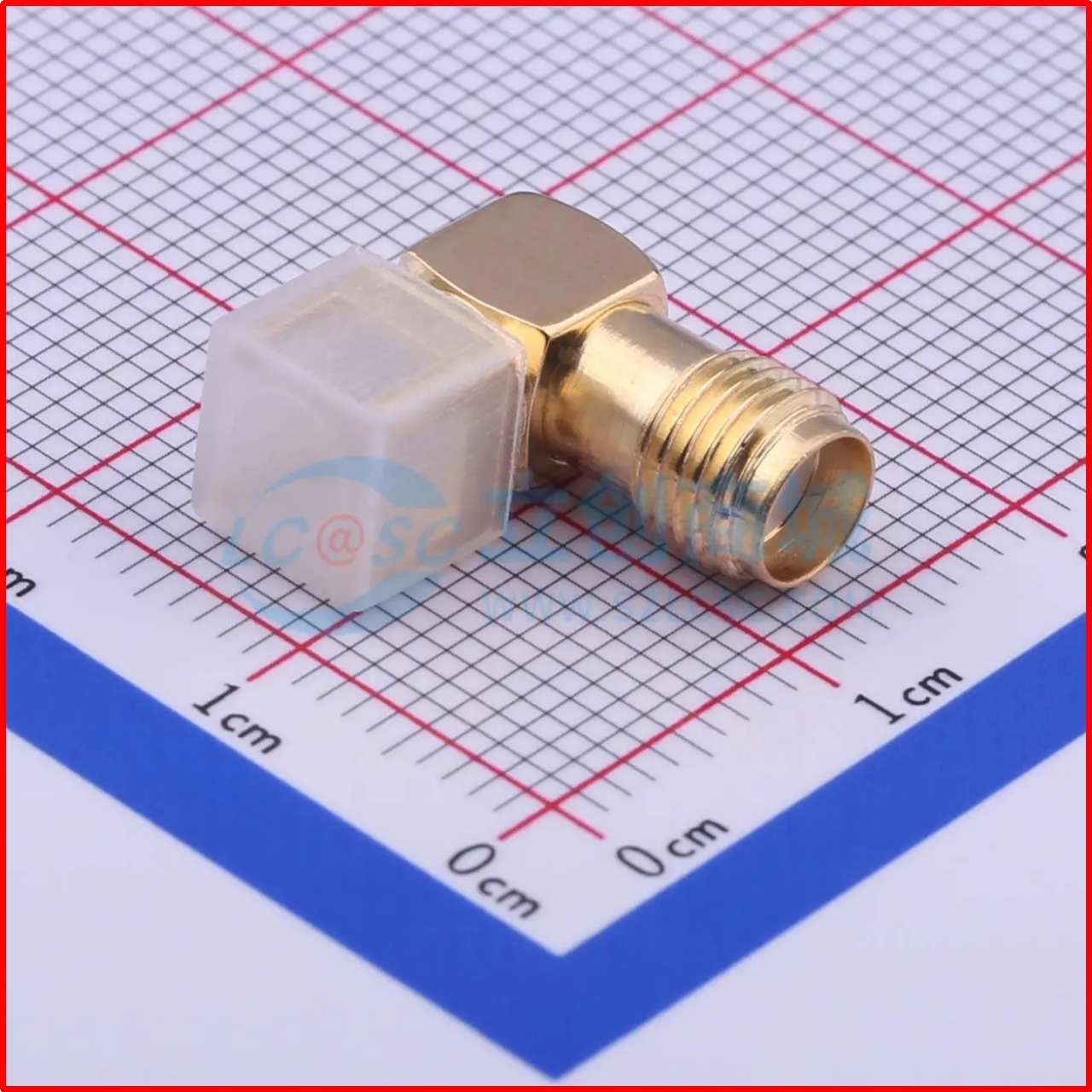

Kinghelm KH-SMA-K513-G Product Image (1)

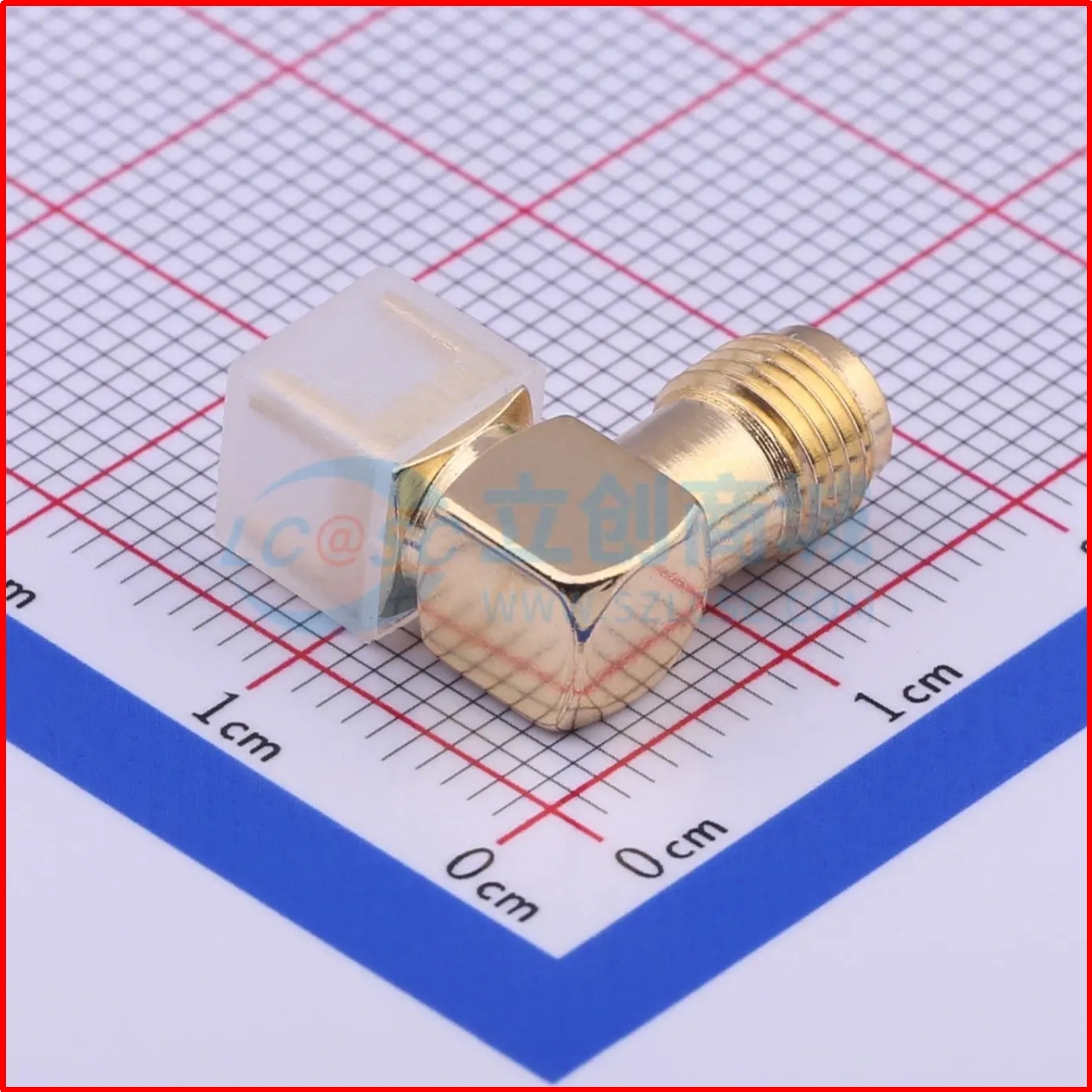

KH-SMA-K513-G is a commonly used RF board-end SMA connector, with a female interface, right-angle style, single port, weight of 2.86g, packaged in bags, plug-in termination, 50Ω impedance, maximum frequency of 6GHz, and operating temperature range of -55℃ to +155℃.

Kinghelm RF board-end SMA connector KH-SMA-K513-G combines excellent electrical performance, rugged and reliable mechanical structure, and ease of use, solving signal transmission instability issues in high-frequency, high-temperature, and high-voltage environments.

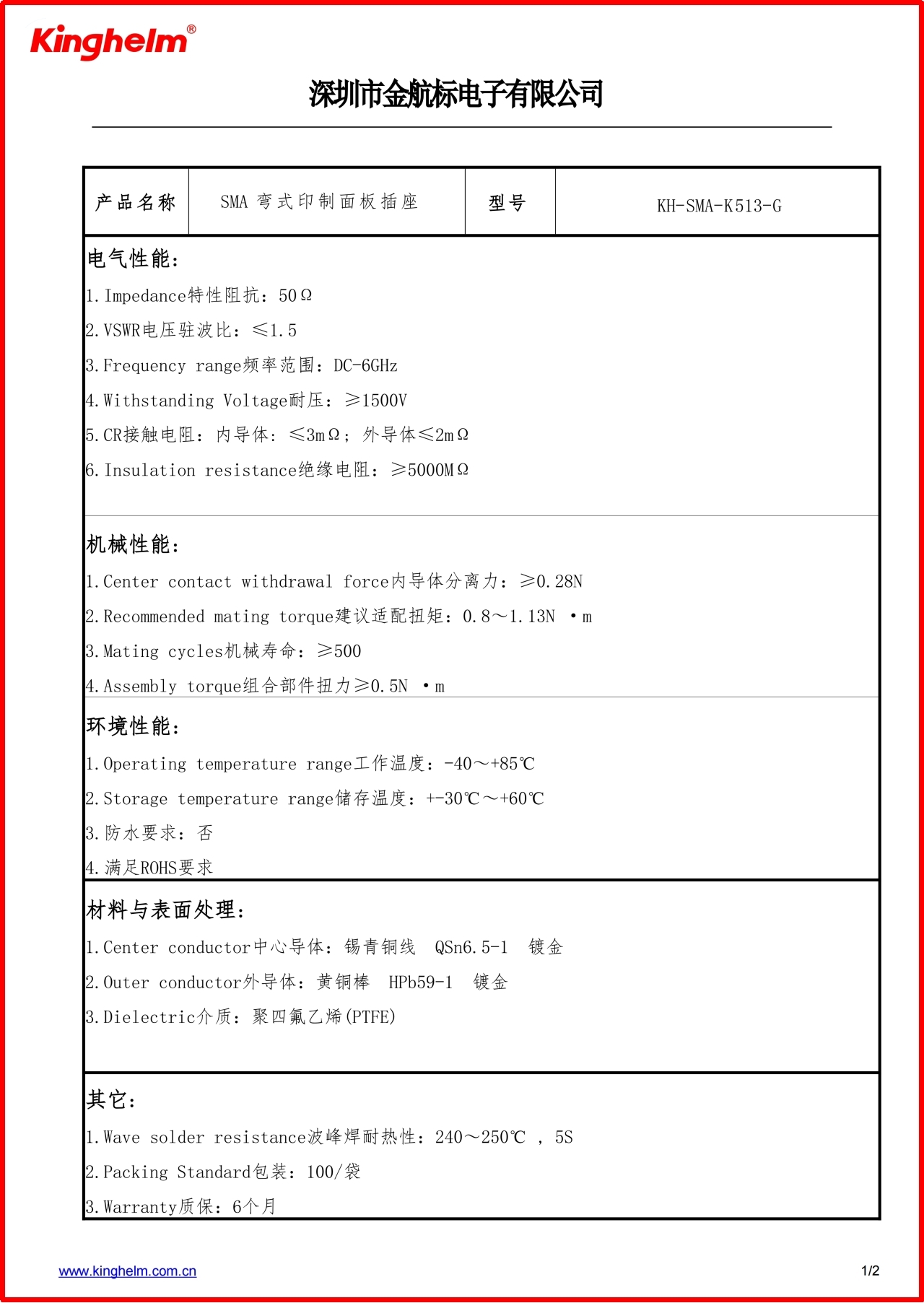

Kinghelm KH-SMA-K513-G Datasheet (1)

Product Features:

1. Composed of a female center contact and external thread, enabling quick connection and disconnection with good interference resistance and stability;
2. SMA interface offers excellent electrical and mechanical performance;
3. 50Ω impedance and 6GHz maximum frequency meet high-frequency transmission requirements;
4. Supports multiple connection types including RF SMA-KE/KWE/KHD/IPEX/IPX connectors and antenna sockets.

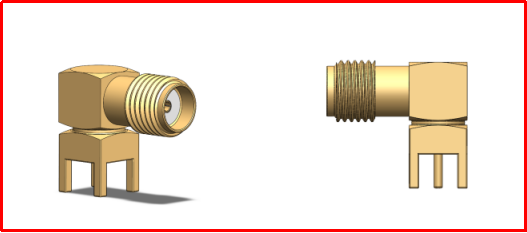

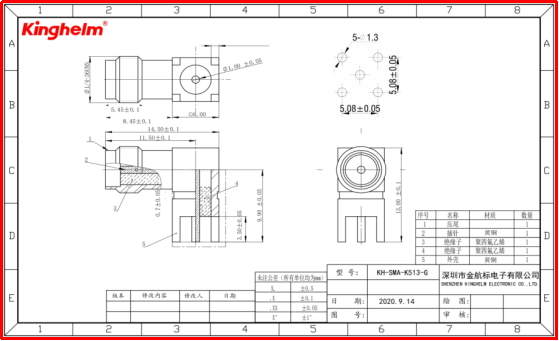

Kinghelm KH-SMA-K513-G 3D Drawing

Product Advantages:

1. Gold-plated shell and socket provide ultra-low contact resistance (inner conductor ≤3mΩ, outer conductor ≤2.5mΩ), ensuring long-term stable and reliable wireless signal transmission;
2. An air-gap-free structure where cable insulation dielectric interfaces directly with the interface provides insulation withstand voltage ≥1000V, protecting wireless gateways from external induced voltage breakdown under harsh conditions;
3. Insulating material uses high-quality polytetrafluoroethylene (PTFE), suitable for long-term use from -180℃ to 260℃, resistant to acids, alkalis, and organic solvents;
4. Wide frequency range and operating temperature from -55℃ to +155℃ allow adaptation to various severe working environments.

Kinghelm KH-SMA-K513-G Datasheet (2)

Applications:

1. Female right-angle design enables bent connections, suitable for space-constrained applications;
2. Suitable for wireless communications, RF test equipment, broadcast television, radar, satellite communications, and other fields – e.g., antennas, transceivers, power amplifiers, filters, etc.;
3. Widely used in wireless gateway products.

Precautions:

Use in dry, non-corrosive gas environments; avoid mechanical shock and vibration, and avoid excessive temperature and humidity.

Kinghelm's vision is to serve more customers with its antenna and connector products, making electronic products smarter and facilitating human communication. Kinghelm's core technical team members are graduates of Tsinghua University and the University of Electronic Science and Technology of China, with nearly 20 years of experience in microwave and RF technology.

III. Kinghelm KH-SMA-KE-Z

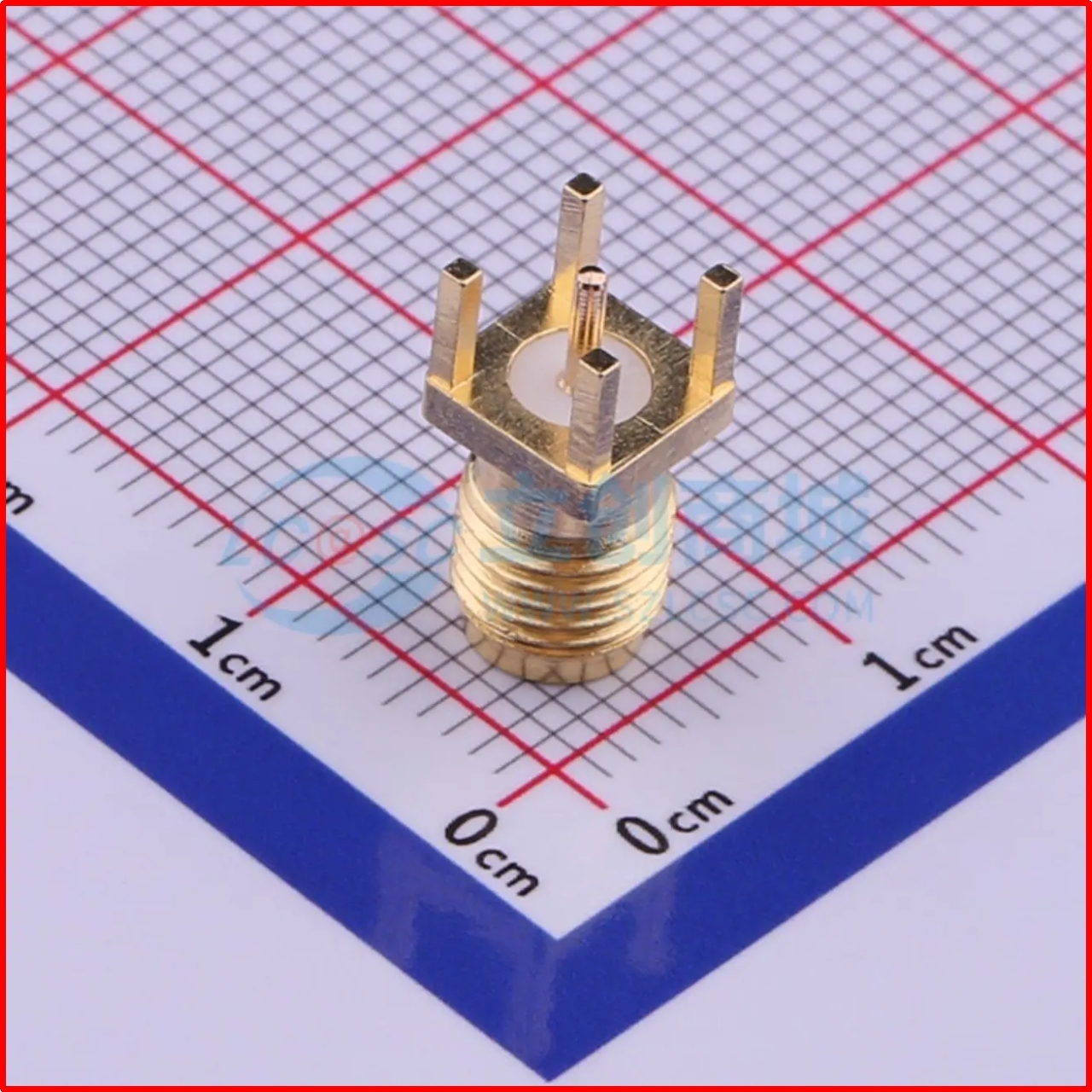

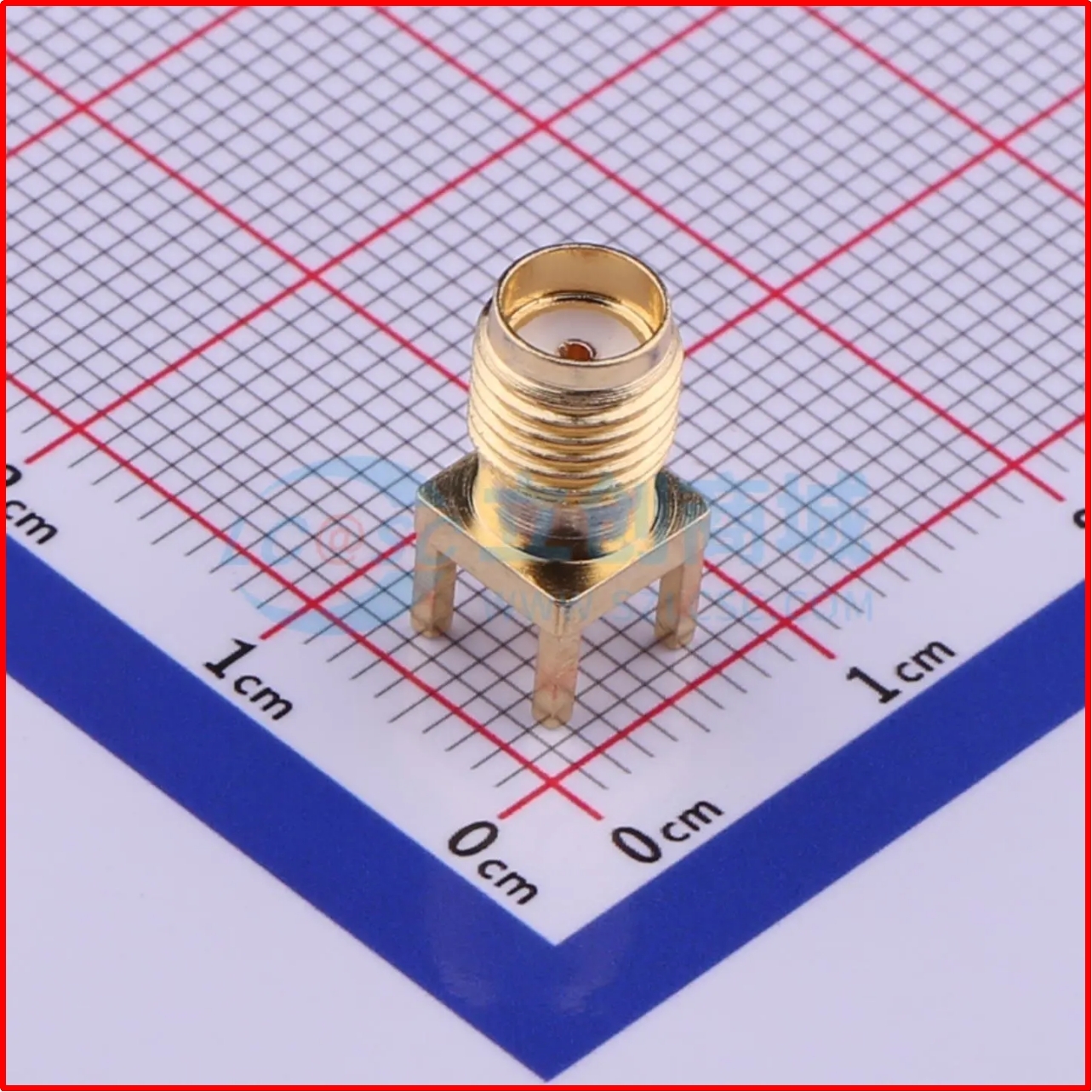

Kinghelm KH-SMA-KE-Z Product Image (1)

KH-SMA-KE-Z is a high-quality SMA series female, straight, vertical board-end connector with a gold-plated semi-threaded design, 6.2mm interface diameter, 8mm interface length/height, single port, weight of 1.42g, packaged in bags, plug-in termination, 50Ω impedance, and excels in applications requiring high stability and high-frequency performance.

Kinghelm SMA series connector KH-SMA-KE-Z is designed specifically for RF applications and is highly regarded for its excellent performance, reliable quality, and easy installation. Whether in high-frequency signal transmission or harsh operating environments, this connector operates stably and reliably.

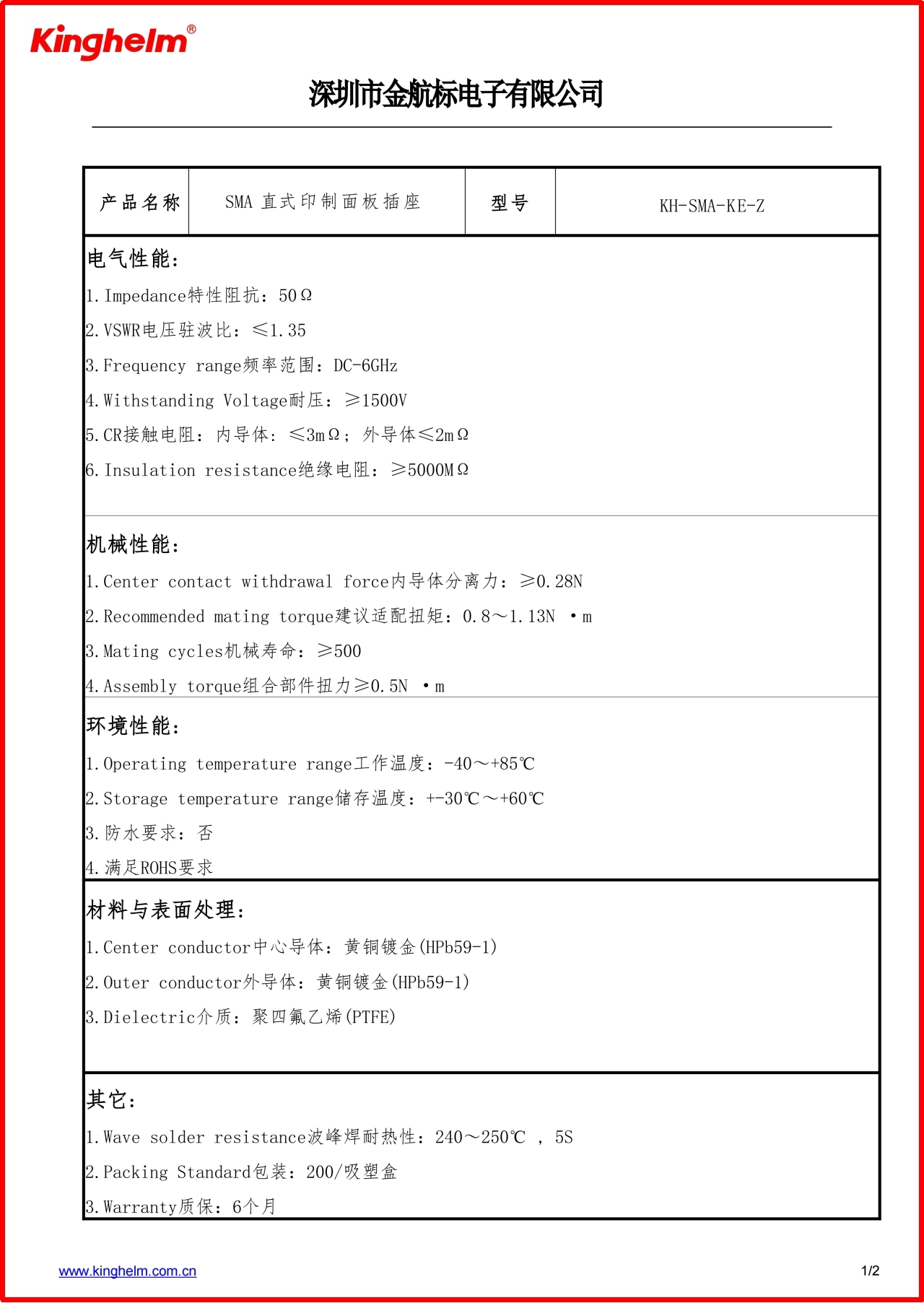

Kinghelm KH-SMA-KE-Z Datasheet (1)

Product Features:

1. SMA series connector with excellent RF performance;
2. Female straight board-end connector for convenient installation and use;
3. Gold-plated semi-threaded design enhances corrosion resistance and stability;
4. Supports multiple connection types including RF SMA-KE/KWE/KHD/IPEX/IPX connectors and antenna sockets.

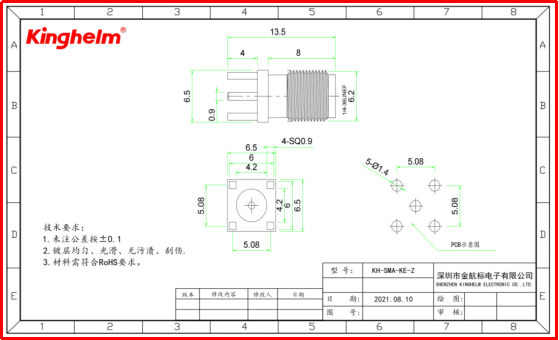

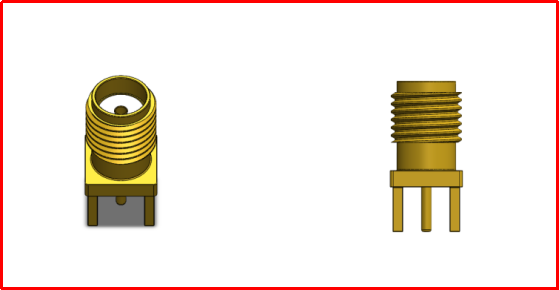

Kinghelm KH-SMA-KE-Z 3D Drawing

Product Advantages:

1. SMA interface and female design deliver excellent and stable signal transmission performance;
2. Made of high-quality materials to ensure long service life and stable performance;
3. Threaded connection allows quick and easy installation;
4. Plug-in design facilitates convenient connections, especially suitable for wireless communication equipment.

Kinghelm KH-SMA-KE-Z Datasheet (2)

Applications:

KH-SMA-KE-Z connectors are suitable for RF applications, used to connect coaxial cables and board-end equipment. They are widely used in communications, broadcast television, radar, navigation, aerospace, and other fields.

Precautions:

Use in dry, non-corrosive gas environments; avoid mechanical shock and vibration, and avoid excessive temperature and humidity.
