Analysis of cloud IoT platform

Analysis of cloud IoT platform

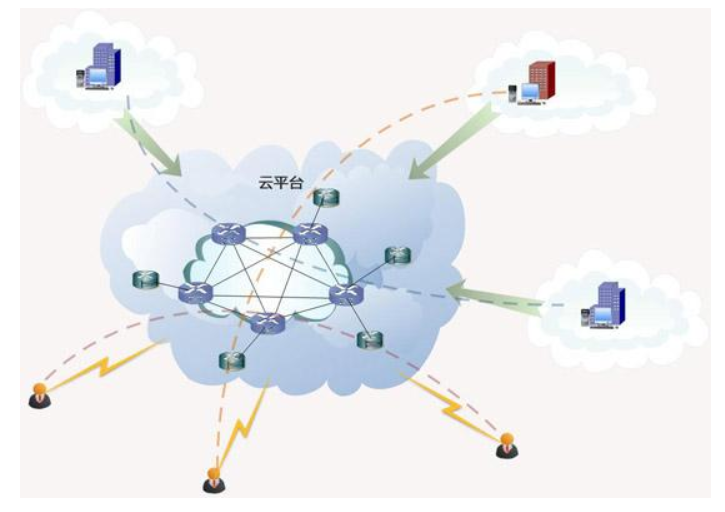

Cloud platform, also called cloud computing platform, refers to services based on hardware resources and software resources, providing computing, network and storage capabilities.

The war on cloud platforms has intensified. Since Amazon and Google have gradually begun to compete globally, the domestic cloud computing market has also become fiercely competitive. The major domestic manufacturers ranked according to the number of users are: Alibaba Cloud, Tencent Cloud, Xinrui Cloud, Huawei Cloud, Baidu Cloud...

Alibaba Cloud

Founded in 2009, Alibaba Cloud is the world's leading cloud computing and artificial intelligence technology company. It is committed to providing safe and reliable computing and data processing capabilities in the form of online public services, making computing and artificial intelligence an inclusive technology. Alibaba Cloud serves leading enterprises in many fields such as manufacturing, finance, government affairs, transportation, medical care, telecommunications, and energy, including large corporate customers such as China Unicom, 12306, Sinopec, PetroChina, Philips, and BGI, as well as star Internet companies such as Weibo, Zhihu, and Smartisan Technology. Alibaba Cloud has maintained a good operating record in extremely challenging application scenarios such as Tmall Double 11 Global Carnival and 12306 Spring Festival Ticket Purchase.

Alibaba Cloud has deployed efficient and energy-saving green data centers around the world, using clean computing to provide a steady stream of energy power for the new world of Internet of Everything. Currently, the service areas include China (North China, East China, South China, Hong Kong), Singapore, the United States (Eastern United States, Western United States), Europe, the Middle East, Australia, and Japan.

In 2014, Alibaba Cloud helped users resist the largest DDoS attack in the history of the global Internet, with peak traffic reaching 453.8Gb per second. In the Sort Benchmark 2016 sorting competition CloudSort project, Alibaba Cloud broke AWS's record of 4.51$/TB with a sorting cost of 1.44$/TB. In Sort Benchmark 2015, Alibaba Cloud used its self-developed distributed computing platform ODPS to complete 100TB data sorting in 377 seconds, breaking Apache Spark's world record of 1406 seconds.

Tencent Cloud

Tencent Cloud itself also has a large-scale layout in social networking and gaming, so Tencent Cloud host can also be among the top based on its own huge number of users.

The advantage of Tencent Cloud Host lies in the green check certification of QQ chat window and Tencent Cloud’s experience and professionalism in the field of entertainment and games. It also has better compatibility in social applets such as QQ/WeChat.

Specifically, it includes basic cloud services such as cloud servers, cloud storage, cloud databases, and elastic web engines; Tencent's overall big data capabilities such as Tencent Cloud Analysis (MTA) and Tencent Cloud Push (Homing Pigeon); and cloud-linked social systems such as QQ Internet, QQ Space, Weiyun, and microcommunity. These are the differentiated advantages that Tencent Cloud can provide to this industry, creating a high-quality Tencent Cloud technology platform that can support various Internet usage scenarios.

New Ruiyun

Xinrui Cloud is considered the leader among the rising stars. The impression of focusing on domestic products has made Xinrui Cloud's active IP growth rate reach 219% in 2019, which reflects its strong strength in the enterprise-level market and Xinrui Cloud's commitment to the cloud market.

Xinrui Cloud mainly deals with large enterprises (such as state-owned enterprises, public institutions, etc.). It is regarded as an exclusive user group of domestic forces (but personal business is also very good). Xinrui Cloud's own technology is another existence besides BAT that is difficult to shake its position.

Huaweicloud

Since March 2017, Huawei has specially established a Cloud BU to build and provide a trustworthy, open public cloud with global online and offline service capabilities. As of September 2017, Huawei has released a total of 85 cloud services in 13 categories. In addition to serving domestic enterprises, it also serves many enterprises in Europe, America and other regions around the world.

Huawei Cloud is based in the Internet field and relies on Huawei's abundant capital and strong cloud computing R&D capabilities to provide Internet value-added service operators, large, medium and small enterprises, governments, scientific research institutes and other enterprise users, including basic cloud services such as cloud hosting, cloud hosting, cloud storage, supercomputing, content distribution and acceleration, video hosting and publishing, enterprise IT, cloud computers, cloud conferencing, game hosting, application hosting and other services and solutions.

AmazonAWS

Amazon Web Services (AWS) is a professional cloud computing service provided by Amazon. It was launched in 2006 to provide IT infrastructure services to enterprises in the form of web services, commonly known as cloud computing. One of its main advantages is the ability to replace upfront capital infrastructure expenses with lower variable costs that scale according to business development.

Users can choose the corresponding type according to their needs to help you maintain the appropriate control balance while avoiding meaningless heavy work. Currently, many customers use AWS to build complex applications. Due to the use of many users, this also accelerates AWS's pace in machine learning, artificial intelligence, Internet of Things, and serverless computing.

Services provided by Amazon Web Services include: Amazon Elastic Compute Cloud (Amazon EC2), Amazon Simple Storage Service (Amazon S3), Amazon Simple Database (Amazon SimpleDB), Amazon Simple Queue Service (Amazon Simple Queue Service), and Amazon CloudFront.

Arm Pelion IoT Platform

The Arm Pelion IoT Platform is the industry's first end-to-end IoT connectivity, device and data management platform that enables enterprises to seamlessly and securely connect and manage IoT devices and data of any scale, unlocking the value of IoT.

The Pelion IoT platform will enable companies to seamlessly and securely connect and manage IoT devices and data at any scale. The platform is suitable for public and private clouds as well as on-premises and hybrid environments, providing maximum flexibility for IoT system architecture. This will enable businesses to quickly transform IoT and enterprise data into business insights that unlock new opportunities for them and their customers. The Pelion IoT platform will also have unified billing, reducing infrastructure costs, improving operational efficiency and eliminating integration pain points.

新唐 NuMaker-IoT-M487 平台支持多种嵌入式实时操作系统 (Real-time Operating System, RTOS)，包含 Alibaba Alios, Amazon FreeRTOS, Arm mbed。客户可选择不同的 RTOS 并快速桥接至不同的云端服务，例如：Alibaba Cloud, Amazon Web Services (AWS), Arm Pelion。

?  Program features

  -  支持 Alios Things

  -  支持 Amazon FreeRTOS

  -  支持 Arm mbed

  -  通过 Alibaba Cloud, AWS, Arm Pelion 平台认证

?  MCU Features

  -  M480 (32-bit Arm® Cortex®-M4)

  -  192 MHz 主频

  -  512 KB Flash 及 160 KB SRAM

  -  支援 Ethernet 界面

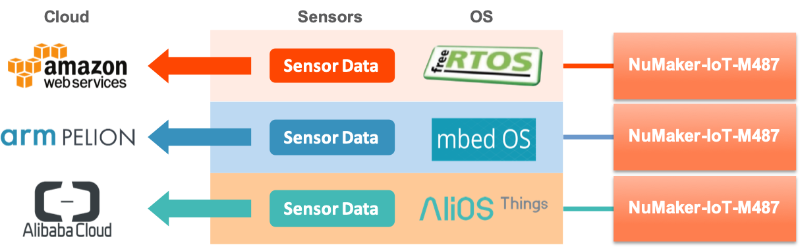

?  System diagram

Nuvoton NuMicro® M487 Ethernet series, with Arm® Cortex®-M4F as the core, is a high-performance and low-power microcontroller with DSP instruction set. The system can run up to 192 MHz and consumes only 175 µA/MHz in dynamic operation. Built-in up to 2.5 MB flash memory (Flash) and 160 KB SRAM, including 32 KB cache (Cache) to accelerate external SPI Flash in-place execution (execute-In-Place). The bootloader is pre-burned at the factory to provide a secure boot (Secure Boot) function, which can perform integrity checks on the program code stored in the built-in flash memory, and integrates a security protection block (Secure Protection ROM) to provide a secure space for storing confidential programs or data. Built-in One-Time Programmable ROM block can be used for product life cycle management.

The NuMicro® M487 Ethernet series supports operating voltages from 1.8V to 3.6V and industrial operating temperatures of - 40°C to 105°C. This series is additionally equipped with 10/100 Mbps Ethernet MAC, RMII interface and hardware encryption engine. The package types include LQFP64, LQFP128 and LQFP144.

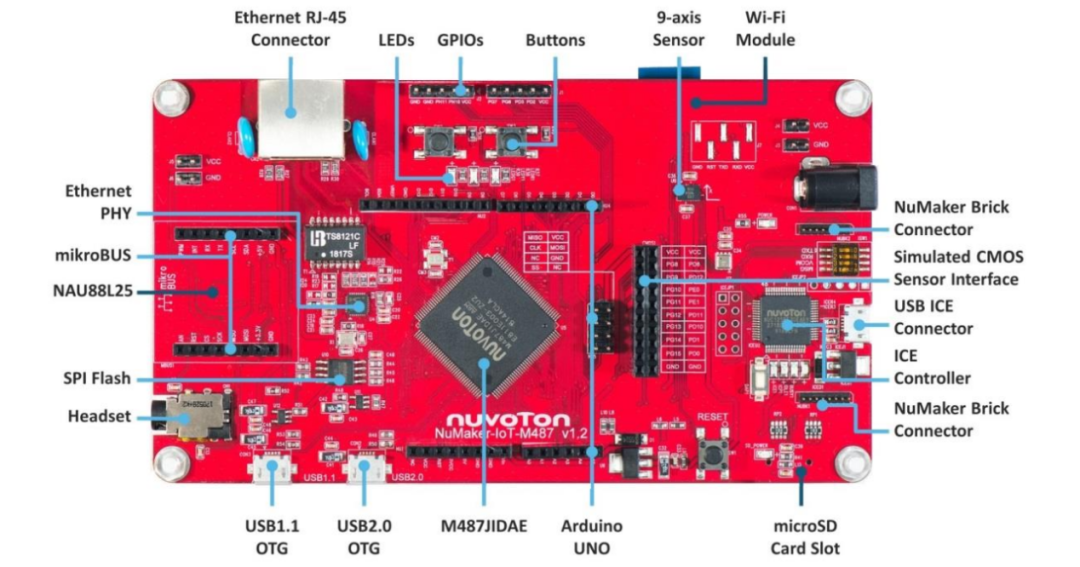

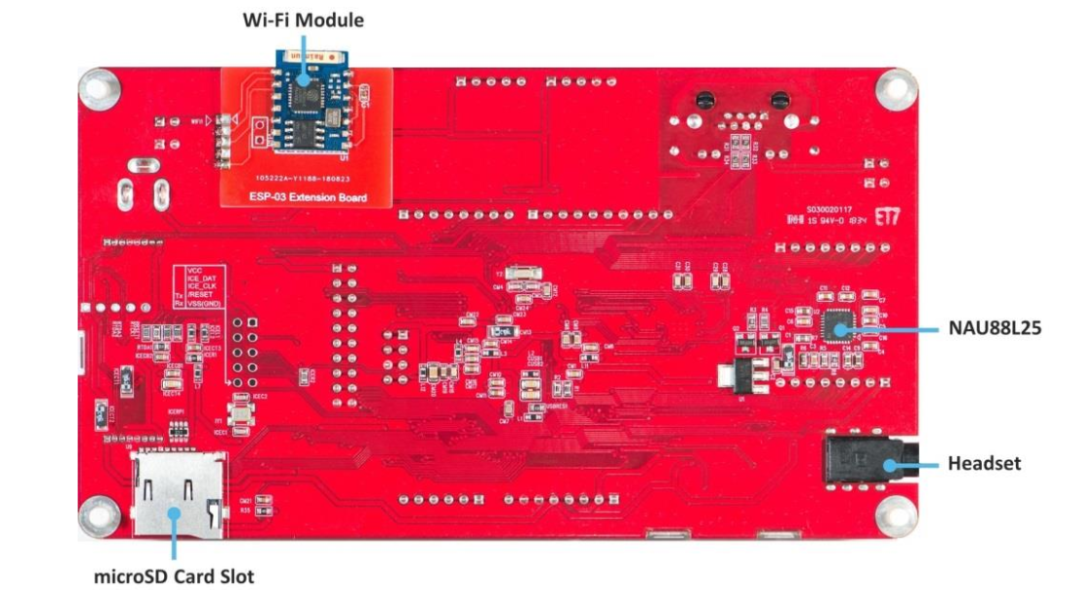

The NuMaker-IoT-M487 development board supports Arm® Mbed? OS, integrates common components, has built-in multi-axis sensors, and provides interfaces compatible with Arduino UNO and mikroBUS?, whether it is GPIO, UART, ADC, PWM, SPI or I2C, etc.; it has built-in NuMaker Brick I2C interface of the sensor module with Nuvoton's building block concept; it provides a unique simulated image sensor interface to connect to CMOS The image sensor can be used to intercept images for analysis; combined with the NAU88L25 audio codec, it provides high-quality sound recording and playback functions; an external SPI Flash and a microSD card slot are provided to add additional data access space.

NuMaker-IoT-M487 provides multiple networking methods and interfaces, as well as image sensing and audio recording and playback functions, as well as flexible expansion of data access space. Whether users need endpoint devices or lightweight gateway applications, NuMaker-IoT-M487 is the best choice for IoT applications.

Key features:

?  核心

-  高达192 MHz Arm® Cortex®-M4F核心

-  DSP指令集

- Memory protection unit

? Memory

- Up to 2.5 MB flash memory

-  高达 160 KB RAM，包含32 KB 外部 SPI Flash快取

- 4 KB Security Protection Block (SPROM)

- 2 KB one-time programming block (OTP)

? Cyclic Redundancy Check (CRC) unit

? 16-channel peripheral DMA controller

? External bus interface

- LCD parallel interface, i80 mode

?  时脉源 ( Clocks )

-  4到24 MHz 晶振

-  RTC用32 kHz振荡器

- Internal 12 MHz RC oscillator

- Internal 10 kHz RC oscillator

-  内部PLL可达480 MHz

?  RTC

- 80-byte backup register

? Timers and PWM

- 4 32-bit timers

- 12 enhanced PWM with 12 16-bit timers

- 12 basic PWMs with 2 16-bit timers

- 1 24-bit countdown SysTick timer

- 1 watchdog timer

- 1 window watchdog timer

? Encryption and decryption engine

-  ECC ( P-521, B-571, K-571 )

-  AES-128, 192, 256

-  DES/ 3DES

-  SHA-160, 224, 256, 384, 512

-  HMAC

- Random number generator

? Analog peripherals

-  1个12位元，多达16通道5 MSPS SAR ADC

-  2个12位元1 MSPS DAC

-  2个满摆幅 ( Rail-to-rail ) 比较器

- 3 operational amplifiers

? Communication interface

- Up to 6 low-power UART interfaces (17 Mbps), including 2 LIN interfaces

- Up to 3 ISO-7816 interfaces (3.4 MHz), supporting full-duplex UART mode

-  3个 I²C 介面 ( 可达3.4 Mbps )

- 1 SPI Flash interface (up to 96 MHz) supports four-wire mode

- 1 four-wire SPI interface (up to 96 MHz)

-  多达4个 SPI / I²S介面 ( SPI 可达96 MHz 、I²S可达192 kHz/16-bit )

-  1个I²S介面 ( 192 kHz/ 32-bit )

-  2个USCI介面，支持可程设 UART / SPI / I²C

-  2个CAN 2.0B介面

- 2 SD card controllers (50 MHz)

? Control interface

- 2 orthogonal codec interfaces

- 2 x 24-bit 3-channel input capture counter units

? Advanced links

- USB 2.0 high-speed device/host/OTG controller and built-in PHY

- USB 2.0 full speed device/host/OTG controller and built-in PHY

-  10/100 Mbps以太网MAC及RMII介面
