Lineup expanded! JAE Industrial Equipment "DZ02 Series" Connector Adds Plug and Wire Harness Products

JAE newly developed for connecting industrial equipment safety devicesPlug harness for small interface connector "DZ02 series", and has started selling.

01 summary

In recent years, in order to realize automated production lines and collaborative robot work to save labor and improve productivity on the production site, there has been an increasing demand for control of the execution site and safety devices to protect workers when workers come too close to operating equipment or mistakenly contact equipment.

In this case, JAE has begun selling small interfacesconnector"DZ02 Series" plug harness, this connector safely and conveniently connects safety equipment and equipment that controls industrial equipment (servo amplifiers, inverters, etc.).

This product is a connector compliant with the standard IEC61076-3-122 (TYPE-1) for Gigabit Ethernet, and uses an STO (*) cable to connect the controller (servo amplifier) ​​and safety equipment. The 1.27 mm pitch enables miniaturization of the connector, helping to save space inside the device, and is equipped with a locking structure that offers excellent vibration resistance and easy operation.

Since the safety performance of human-machine collaboration is considered from the beginning of the design, this wiring harness can be used to connect the controller (servo amplifier) ​​and safety equipment. In addition, you can combine the DZ02 series connectors with already sold sockets and short-circuit plugs to ensure safety performance in a series of processes.

※STO (SafeTorque Off): The function of interrupting the motor current through the signal sent by the safety device

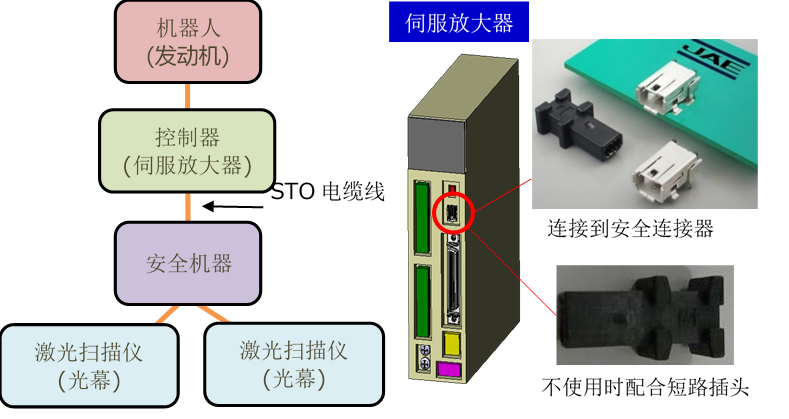

02 Use cases

03 Advantages

Small (1.27mm height)

Locking structure with excellent shock-proof structure

Can provide a series of sockets, short-circuit plugs and plugs that comply with IEC61076-3-122 (TYPE-I) standardsWiring harness。

For connecting devices with safety monitoring functions (servo amplifiers, inverters, etc.) to safety devices

04 Application Market

Servo amplifiers, motion controllers, PLCs (programmable logic controllers) and other industrial equipment

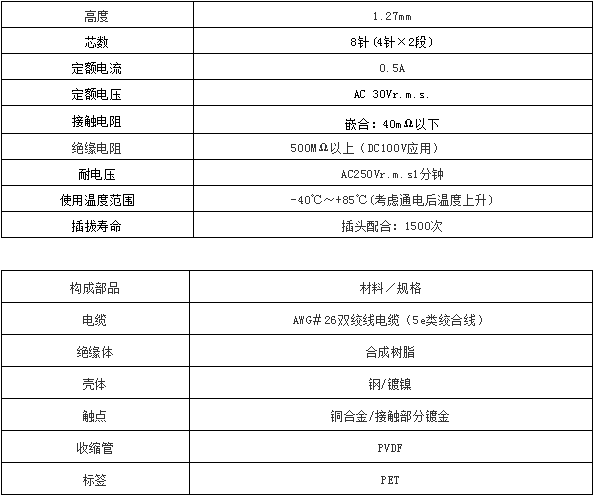

05 General specifications
