KH-PB-22E65 Push Button Switch: 5.8 mm Six-Pin Latching Design for Ultra-Compact PCB Applications

1. Product Overview: Compact Size, Reliable Performance for High-Density PCBs

As PCB space becomes increasingly limited, the footprint of each component plays a critical role in determining how much functionality can be integrated into a circuit board. The Kinghelm KH-PB-22E65 is designed specifically for applications with stringent space constraints.

With a compact footprint of just 5.8 mm × 5.8 mm and an overall installed height of 10.7 mm, this switch is one of the most compact options in its series of through-hole latching switches. It provides a reliable state-retention solution for high-density PCB layouts and applications with limited installation space.

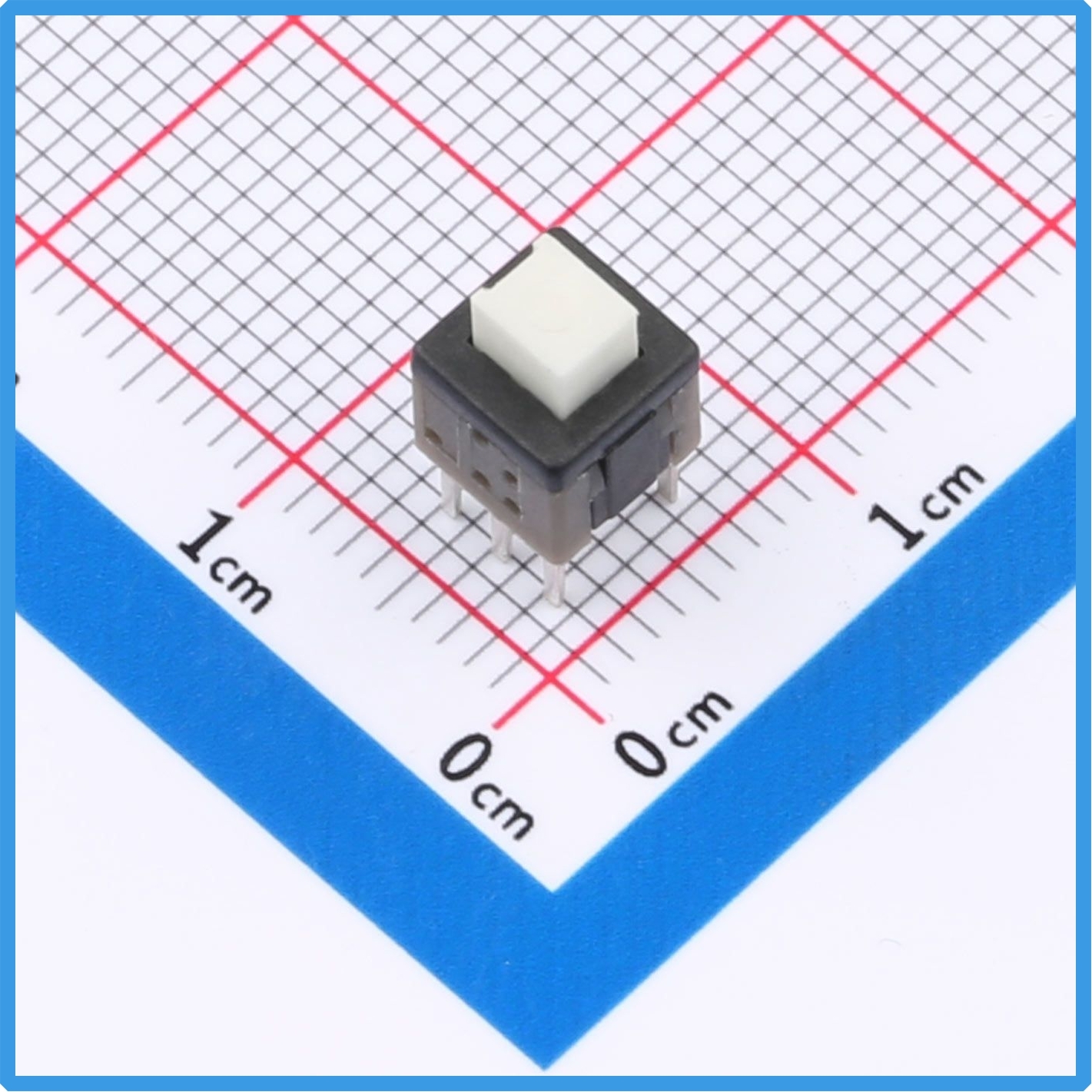

Kinghelm KH-PB-22E65 Product Image

2. Key Specifications

• Dimensions: 5.8 mm × 5.8 mm; overall height of 10.7 mm
• Circuit configuration: Double-pole, double-throw (DPDT), six-pin design
• Actuation mechanism: Latching; press once to lock in the ON state and press again to release to the OFF state
• Mounting type: Through-hole, through-board mounting
• Terminal type: PCB pins
• Actuator shape: Rectangular plunger
• Illumination: Non-illuminated
• Product weight: 0.41 g
• Packaging: Bag packaging



3. Six-Pin Latching Mechanism for Convenient State Retention

Unlike conventional momentary switches, the KH-PB-22E65 features a latching mechanism. A single press locks the switch in the ON state without requiring continuous pressure. Pressing it again releases the latch and returns the switch to the OFF state.

This mechanism is particularly suitable for applications that require the current operating state to be maintained, including power switching, mode selection, and function activation or deactivation. It simplifies control logic while providing clear, tactile feedback during operation.

The six-pin DPDT configuration offers greater contact flexibility, allowing two separate circuits to be controlled independently. This enables multiple signal-switching functions to be integrated into a single compact switch, helping conserve valuable PCB space.

4. Structural Design and Manufacturing: Attention to Every Detail

According to the engineering drawings, the KH-PB-22E65 uses carefully selected materials to balance durability, mechanical strength, and electrical performance.

• Actuator head: POM and phosphor bronze

• Switch cover: POM (polyoxymethylene), also known as acetal resin

• Main housing: Nylon fiber-reinforced construction with brass reinforcement

• Internal spring and worm mechanism: Stainless steel wire

• Surface finishes: Silver plating and nickel plating

The switch features a non-shorting (break-before-make) contact design, helping prevent momentary short circuits between contacts during switching and improving circuit protection.

Its compact, approximately 6 mm-class package and through-hole mounting design provide stable mechanical attachment and compatibility with conventional PCB assembly processes, including wave soldering, subject to the applicable process specifications.

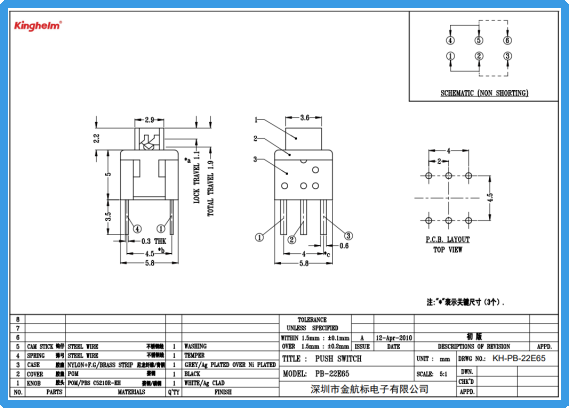

Kinghelm KH-PB-22E65 Specification

5. Quality Assurance: The Kinghelm Commitment

Kinghelm is a high-tech enterprise with extensive experience in the interconnect and RF components industry. Its product portfolio includes antennas for BeiDou, GPS, Wi-Fi, and Bluetooth applications; IPEX, SMA, and FAKRA connectors; Type-C and HDMI connectors; pin headers and female headers; push button switches, slide switches, and microswitches; as well as industrial wiring harnesses and customized automotive and motorcycle cables.

Kinghelm products serve a wide range of industries, including the Internet of Things (IoT), instrumentation, new energy, commercial aerospace, and smart cities.

Mr. Song Shiqiang, founder of Kinghelm, has extensive experience in the electronic components industry and emphasizes rigorous quality control. The company maintains high standards in material selection, dimensional tolerance management, and reliability testing.

The KH-PB-22E65 reflects this commitment to quality. Three critical dimensions identified in the engineering drawings are subject to key quality controls to help maintain consistency and stability in mass production, providing reliable component support for customers' end-product designs.

6. Typical Applications

Thanks to its ultra-compact footprint, six-pin latching mechanism, and DPDT contact configuration, the Kinghelm KH-PB-22E65 is suitable for a variety of applications, including:

• Portable electronic devices
• Instrumentation and measurement equipment
• Industrial control panels
• Consumer electronics
• Power ON/OFF control
• Function selection and operating-mode switching

For designs where PCB space is limited but reliable state retention is essential, this compact 5.8 mm switch is a practical option worth considering.

About Kinghelm

According to Mr. Song Shiqiang, to meet the signal and data reception, transmission, and protection requirements of smart hardware in RF and microwave applications, Kinghelm provides customers with a comprehensive range of complementary products, including antennas, connectors, jumper cables, plug-in connectors, and terminals.

Its product portfolio includes USB Type-C, SMA, IPEX, and MCX RF connectors; HDMI connectors; RJ45 Ethernet connectors; automotive wiring harnesses; adapter cables; pin headers and female headers; terminals; GPS antennas; RF coaxial connectors; Wi-Fi antennas; BeiDou Navigation Satellite System (BDS) antennas; embedded navigation and positioning antennas; 4G communication antennas; Bluetooth ceramic antennas; and a wide range of electronic switches.

Kinghelm's switch product range includes tactile switches, detection switches, slide switches, push button switches, microswitches, multifunction switches, illuminated switches, DIP switches, toggle switches, headphone jacks, DC power jacks, FPC connectors, USB connectors, waterproof USB connectors, sensing switches, vertical detection switches, through-hole detection switches, SMD-coded switches, limit switches, rotary coding switches, tactile push buttons, Type-C receptacles, joystick switches, five-way switches, scroll-wheel switches, and other specialized switching components.

Representative Kinghelm KH-series models include KH-6X6X6H-STM, KH-IPEX-K501-29, KH-6X6X5H-STM, KH-6X6X5H-Z2J, KH-3216-H0209, KH-VH-PT3.96, and KH-SMA-P-8029.

Kinghelm Electronics (Kinghelm, www.kinghelm.net), together with Slkor (www.slkoric.com), which offers electronic components, sensors, TVS diodes, and related products, provides electronic components and complementary technical support to tens of thousands of customers worldwide.

KH-PB-22E65View Product Details
