KH-A42002-2X6A Wire-to-Board Header: An Industrial-Grade, Reliable Choice for a 7A/600V Dual-Row Through-Hole Connector

Inside industrial electronics and high-reliability equipment, wire-to-board connectors are often the least conspicuous yet most critical components. Unlike a main control chip that naturally attracts attention or a power device that is built to withstand heavy loads, a connector may seem unremarkable. Yet every material choice and every pin layout directly affects the long-term performance of an entire system under vibration, temperature variations, and current surges.

The KH-A42002-2X6A plug-in wire-to-board header from Kinghelm is precisely the kind of product that takes this “hidden value” to the next level. It makes no attempt to be flashy. Instead, it delivers a dependable connection solution through solid electrical performance, thoughtful structural design, and carefully selected materials.

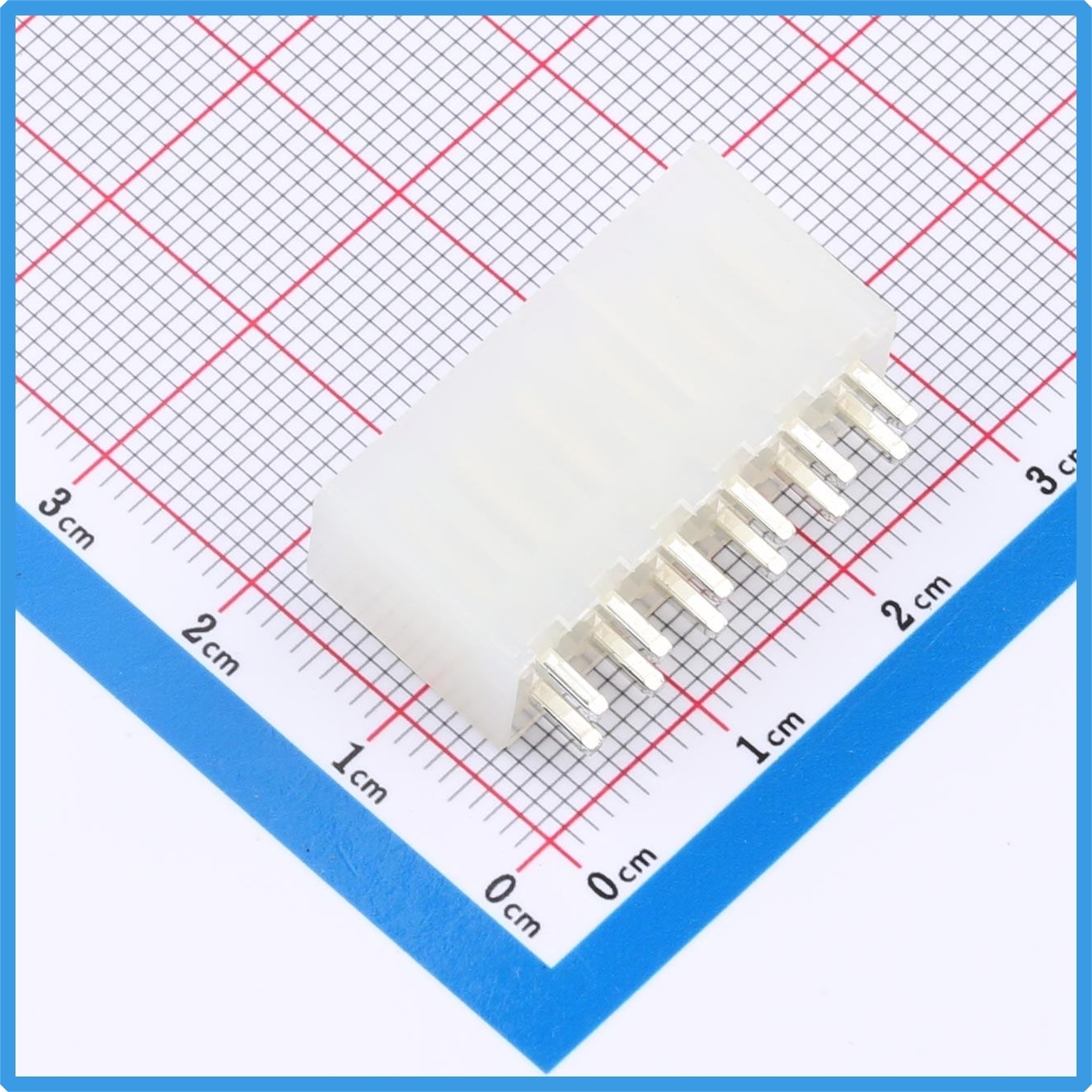

Kinghelm KH-A42002-2X6A Product Image

7A Current-Carrying Capacity: High Performance in a Compact Package

Consumer-grade connectors are often designed to handle only 2A to 5A. However, when equipment needs to drive motors, heaters, or fast energy-storage conversion circuits, 7A becomes a critical threshold. Based on a 4.2mm standard pitch and a dual-row 2×6P configuration, the KH-A42002-2X6A provides a rated continuous current capacity of 7A.

This figure is not accidental. It is supported by the low-resistance characteristics of its brass contacts and the oxidation resistance and stability provided by the tin-plated finish. Brass provides sufficient elastic deformation capability, helping the contacts maintain adequate contact force even after repeated mating and unmating cycles. The tin plating helps maintain a stable contact interface during long-term current-carrying and heating-cooling cycles, reducing the risk of high-resistance oxide formation and helping keep temperature rise within a safe range.

Meanwhile, the 600V rated voltage takes this connector beyond the traditional scope of signal connectors, allowing it to confidently handle auxiliary power supplies, drive circuits, and other higher-voltage applications. With a single connector model, designers can accommodate both signal and power transmission, significantly simplifying material management.

Temperature and Safety: Addressing Environmental Challenges Through Material Science

Industrial equipment rarely operates in gentle conditions. From sub-zero outdoor equipment enclosures in northern winters to high temperatures accumulated inside enclosed control boxes in southern factories, connectors must maintain dimensional stability and insulation reliability across a wide operating temperature range of -25°C to +85°C.

The KH-A42002-2X6A uses PA66 (nylon 66) as its insulating housing material. This material offers excellent creep resistance at elevated temperatures and relatively low moisture absorption. Even after repeated thermal cycling, the housing is less prone to cracking, deformation, or loosening.

In terms of flame retardancy, the product achieves a UL94 V-2 rating. In the event of abnormal heating, it can effectively delay flame propagation and provide additional response time for downstream protection circuits.

This careful understanding of material characteristics reflects Kinghelm’s deeper approach to long-term reliability: rather than pursuing the highest rating in every category, the product uses mature solutions that are well suited to actual operating conditions and have been validated through large-scale production.

Transparent Housing Design: Improving Manufacturing and Inspection Efficiency in Small but Meaningful Ways

At a time when connector appearances have become increasingly similar, the KH-A42002-2X6A adopts a transparent-colored housing. This seemingly simple design change actually reflects careful consideration of manufacturing and maintenance requirements.

More efficient visual inspection: After wave soldering, the transparent housing makes it easier to observe solder wetting, solder splashes, flux residue, and other potential defects. Without relying on magnification or X-ray inspection, production quality inspectors can quickly complete first-article verification and sampling inspections.

More intuitive troubleshooting: During equipment repair, engineers can inspect the terminals through the housing to check for oxidation or foreign matter, reducing the need for unnecessary desoldering and avoiding secondary damage.

Clearer material management: On production lines where multiple connector models are handled, the transparent color can help operators quickly identify this particular connector, reducing the risk of material mix-ups.

This detail transforms the connector from a merely “passive component” into a tool that actively assists the manufacturing process. It is a practical innovation based on listening to customers’ real-world challenges.

Compact Dimensions and the Design Philosophy of a Through-Hole Structure

The KH-A42002-2X6A has an overall height (Z-axis) of 12.8mm and a board-side base width (Y-axis) of 11.4mm. For a dual-row 12-pin configuration, these dimensions represent a moderate profile. The connector can meet the height constraints of most standard enclosures while leaving sufficient space underneath for routing or other components.

It uses through-hole (DIP) pins rather than surface-mount technology. This is not a conservative choice, but rather a deliberate adaptation to vibration-prone environments. Once soldered, a through-hole structure forms a mechanical and metallurgical connection through the PCB, providing higher resistance to mechanical pull-out than typical SMT solder joints. This makes it particularly suitable for power modules, industrial control boards, and other applications subject to frequent mechanical shock.

At the same time, the through-hole design facilitates manual soldering and rework, making it especially suitable for small-batch, high-mix production environments.

Brand Heritage: Nearly Two Decades of Technical Experience Put into Practice

Kinghelm, a National High-Tech Enterprise, has accumulated nearly two decades of experience in microwave/RF and connector R&D. Its technical team includes professionals from renowned institutions such as Tsinghua University and the University of Electronic Science and Technology of China.

From design to mass production, the KH-A42002-2X6A has undergone rigorous material verification, salt-spray testing, and mating-cycle testing. All raw materials comply with RoHS and REACH environmental requirements.

Kinghelm’s laboratory in Dongguan and intelligent manufacturing facility in Guangxi help ensure product consistency and traceability from batch to batch. This end-to-end control, from raw-material sourcing to final shipment, provides the foundation for the KH-A42002-2X6A to serve as a reliable system-level connection solution.

Typical Applications: Creating More Value Through Reliable Connections

With its key specifications of 7A/600V and wide operating temperature range, the KH-A42002-2X6A can be widely used in applications such as:

• Smart electricity meters and concentrators: The dual-row 12-pin configuration can simultaneously carry power inputs and communication signals, while the transparent housing facilitates automated optical inspection before meter shipment.

• Industrial variable-frequency drives and servo drives: The through-hole structure provides strong resistance to vibration, while the 7A current rating is sufficient for auxiliary power supply circuits on drive boards. The PA66 material is also well suited to the elevated temperatures inside variable-frequency drives.

• Portable energy-storage power supplies: The 600V voltage rating can meet the requirements of high-voltage battery-side sampling applications, while the 4.2mm pitch helps accommodate insulation and creepage-distance requirements for safe operation.

• Smart-home control boards: The connector is suitable for power boards in air-conditioning controllers, fresh-air ventilation systems, and similar equipment, enabling multiple reliable connections within compact spaces.

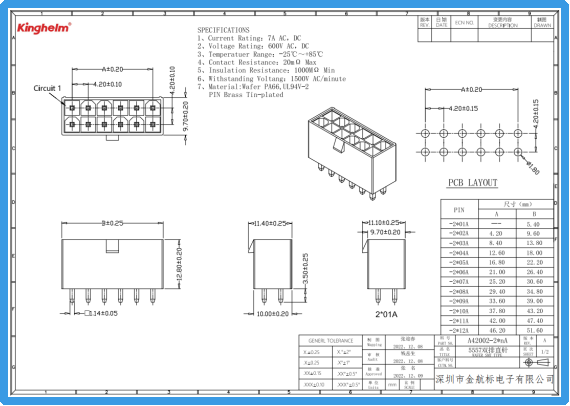

Kinghelm KH-A42002-2X6A Specification

Conclusion: Reliable Connections Come from Meticulous Attention to Every Detail

The KH-A42002-2X6A does not pursue flashy “black technology.” Instead, it focuses on the less visible aspects of a connector—material selection, structural design, and manufacturing compatibility—and puts solid effort into each of them.

It addresses manufacturing challenges with its transparent housing, supports long-term stability through PA66 and tin-plating technology, and expands application possibilities with its dual high-performance ratings of 7A/600V.

In an increasingly homogeneous connector market, this philosophy of “designing for the real world” is precisely where Kinghelm creates value for its customers.

The next time you select a wire-to-board connector for your PCB, take a closer look at this product. It may not immediately impress you with flashy features, but it is designed to stand the test of time.
