KH-2501GW-07A-Z Wire-to-Board Connector: Secure Mating for Reliable Interconnection

Within electronic devices, connectors act as critical components for interconnection between circuit boards and wire harnesses. Reliable connection performance directly determines stable operation of complete equipment. Today we are introducing the KH-2501GW-07A-Z wire-to-board connector developed by Kinghelm. Featuring robust through-hole structure, excellent electrical performance and dependable flame-retardant capability, it has gained extensive adoption in a wide variety of electronic products.

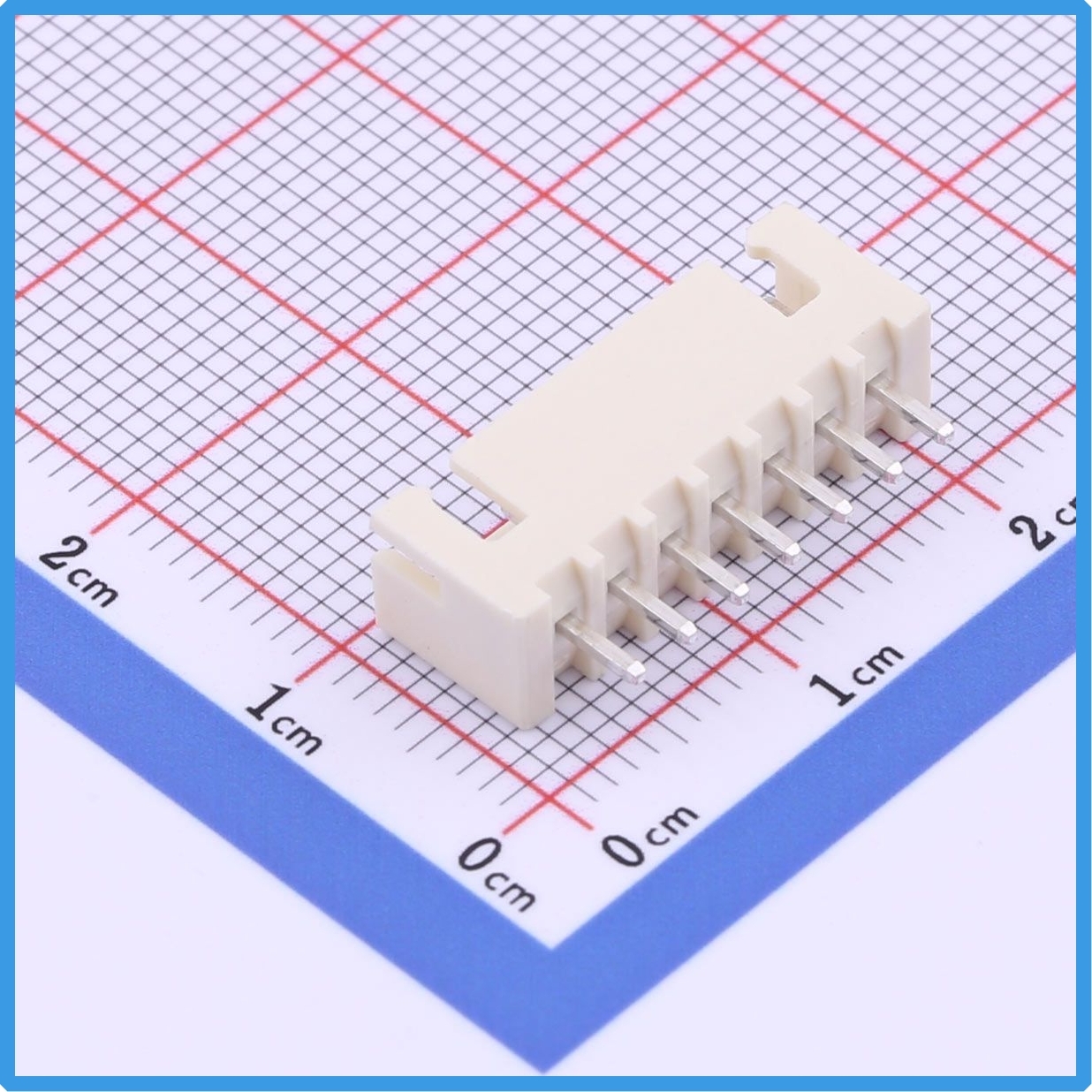

Kinghelm KH-2501GW-07A-Z Product Image

Outstanding Specifications for Peak Performance

Kinghelm KH-2501GW-07A-Z is a 7-position single-row straight through-hole PCB header of XH series with 2.5 mm pitch. It adopts through-hole vertical mounting for simple soldering and fits conventional through-hole plug-in production processes. - Voltage Rating: 250V - Current Rating: Up to 3 Amps - Contact Material: Brass with tin-plated finish to guarantee outstanding electrical conduction - Housing Material: PA66 engineering plastic, UL94V-0 flame-retardant rating - Operating Temperature: -25℃ ~ +85℃

These specifications fully satisfy electrical requirements for most electronic equipment.

Advantages That Set Kinghelm Apart

In terms of mechanical appearance, the KH-2501GW-07A-Z features compact construction with neatly-arranged pins. Straight through-hole pins can be firmly soldered onto PCBs to strengthen soldering reliability and reduce circuit failures caused by cold solder joints or loose terminals. When fully mated with the matching cable housing, it achieves tight engagement and resists vibration generated during equipment operation, effectively lowering risks of accidental plug disconnection.

As a premium-grade wire-to-board connector, Kinghelm KH-2501GW-07A-Z delivers remarkable comprehensive performance. The standard XH-series architecture ensures stable power and signal transmission. It exhibits dependable connection performance for consumer electronics, LED lighting devices as well as compact industrial control units. Meanwhile, the component boasts favorable environmental adaptability and maintains sound working status under temperature fluctuation and minor-vibration working conditions.

Diverse Applications for Every Environment

The KH-2501GW-07A-Z wire-to-board connector suits multiple application scenarios: - Consumer Electronics: Realize wire-harness interconnection between mainboards and functional modules for power supply and signal interaction. - LED Lighting & Sensor Modules: Serve as module wiring components to guarantee normal equipment operation. - Compact Industrial Control Equipment: Complete wire-to-board interconnection and safeguard stable performance of whole devices.

Conclusion: Choose Kinghelm for Reliable Interconnection

All in all, Kinghelm KH-2501GW-07A-Z wire-to-board connector stands out as a preferred interconnect component thanks to its standard 2.5 mm pitch specification, rigid through-hole mounting structure and stable electrical characteristics. For manufacturers of consumer-electronic products, LED lighting equipment and compact industrial devices, selecting KH-2501GW-07A-Z means adopting proven dependable wire-to-board interconnection solutions. As electronic hardware keeps iterating toward multi-functional orientation, the KH-2501GW-07A-Z connector will keep exerting greater functions and value in more fields.
