KH-FPC0.5-H1.2SMT-10P-QCHF FPC Connector: 0.5mm Fine Pitch Meets High-Density Circuit Layout Requirements

I. Industry Background: Continuous Growth in Demand for Flexible Connectors

Under the ongoing trends toward thinner, lighter, miniaturized, and high-density designs in consumer electronics, smart wearables, automotive electronics, industrial control, and other fields, FPC (Flexible Printed Circuit) connectors—as the core bridge between flexible flat cables and PCB boards—are playing an increasingly vital role. FPC flexible circuits, made of flexible insulating substrates, offer outstanding advantages such as bendability, foldability, light weight, and ultra-thin profiles, and are widely used in numerous applications including consumer electronics and automotive electronics.

In terms of market size, the global FFC and FPC connector market is maintaining steady growth. According to market research forecasts, the global FFC and FPC connector market was approximately USD 3.915 billion in 2025 and is projected to reach USD 6.499 billion by 2033, with a compound annual growth rate (CAGR) of 6.54%. Meanwhile, the flexible connector market reached USD 23.89 billion in 2024 and is expected to grow at a CAGR of 13.7% from 2025 to 2030, significantly outpacing traditional rigid connectors. Against this backdrop, FPC connector products featuring fine pitch, ultra-low profile, and easy handling are becoming the preferred choice for electronic design engineers.

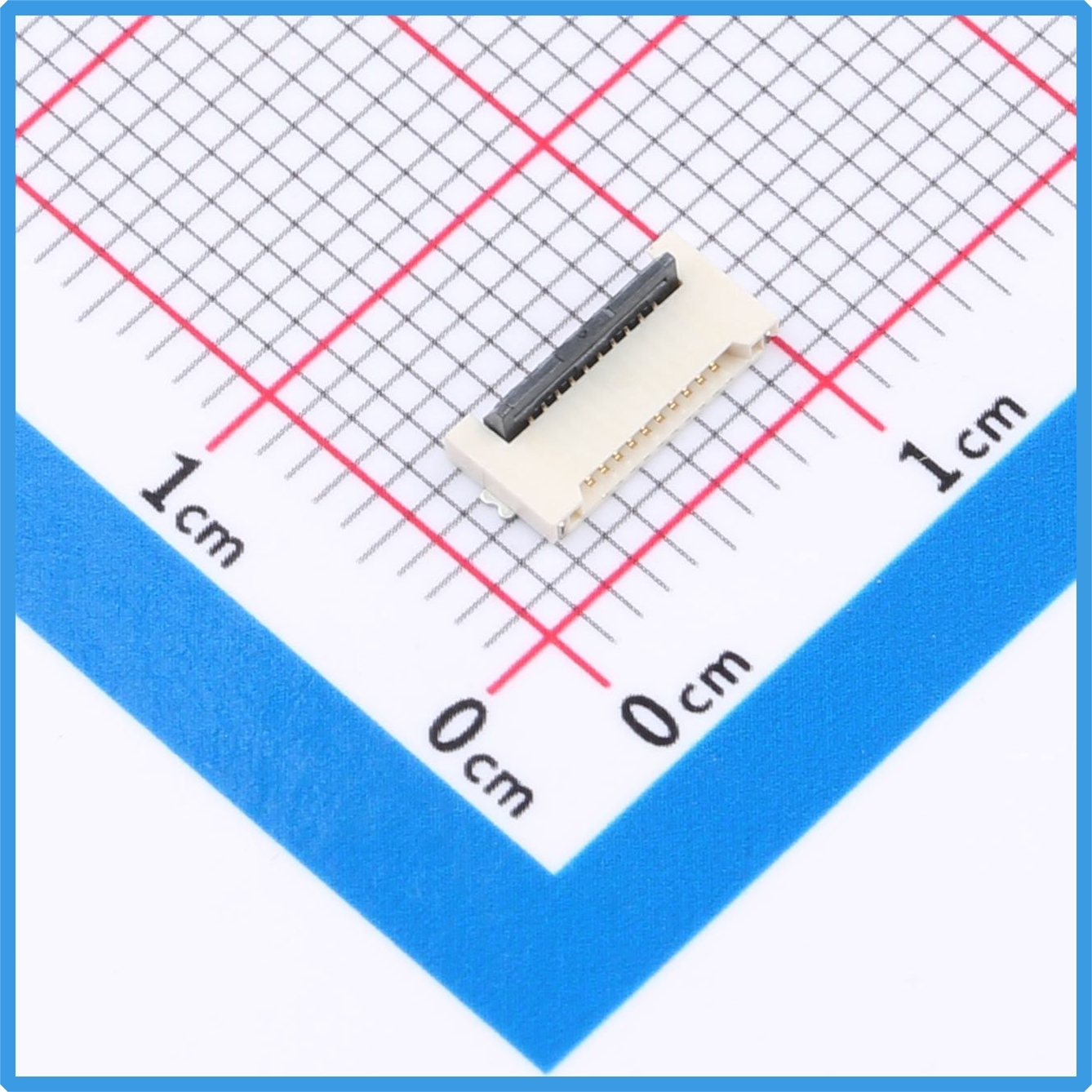

Kinghelm KH-FPC0.5-H1.2SMT-10P-QCHF Product Image

II. Product Overview: KH-FPC0.5-H1.2SMT-10P-QCHF Key Specifications

The KH-FPC0.5-H1.2SMT-10P-QCHF, introduced by Kinghelm, is an FPC flexible circuit connector designed with a precision 0.5mm pitch, featuring 10 contacts and dual-contact / top-bottom mating capability. It adopts a flip-lock (front-insertion, rear-flip) structure, with a surface-mount (SMD) horizontal mounting style. The on-board height is only 1.2mm, and the accepted flexible cable thickness is 0.3mm. The contact material is high-quality phosphor bronze. The product has a rated voltage of 50V, an operating temperature range of -25°C to +85°C, and is supplied in tape-and-reel packaging. With a gross weight of just 0.43g, it is an ultra-lightweight product in the FFC/FPC connector category.

III. Core Features and Structural Advantages

1. Flip-Lock Front-Insertion Rear-Flip Structure

The KH-FPC0.5-H1.2SMT-10P-QCHF adopts a flip-lock (front-insertion, rear-flip) design, which is its most prominent structural highlight. During assembly of the FPC flexible cable, the cable is first inserted from the front into the contact area of the connector housing, and then the top cover is flipped downward to complete the locking. This method enables fast operation in both manual assembly and automated production environments. The flip mechanism also facilitates visual inspection of the contact status, effectively reducing the risk of mis-insertion and skewed insertion. Compared to traditional slide-lock or side-push structures, the flip-lock design saves space while improving operational stability and assembly efficiency, making it particularly suitable for mass production. The locking cover also enhances resistance to vibration and dislodgement, ensuring stable electrical connections even under long-term operation or harsh conditions.

2. 0.5mm Precision Pitch and Dual-Contact Design

The 0.5mm fine-pitch spacing meets the needs of high-density circuit layouts. As PCB space becomes increasingly constrained, this pitch allows more connection points within a limited area. The dual-contact / top-bottom mating design further enhances compatibility and reliability—the FPC cable can be mated from either the top or bottom side, reducing orientation restrictions during assembly and helping to improve production yield. Additionally, the orientation-free design simplifies the assembly process, as operators do not need to judge direction, significantly lowering error rates.

3. 1.2mm Ultra-Low On-Board Height and Horizontal SMD Mounting

With an on-board height of only 1.2mm, this product falls into the ultra-thin low-profile category. In the trend toward extremely slim devices, low-height connectors significantly reduce stacking thickness, enabling more efficient utilization of space between the mainboard and components such as displays, cameras, and batteries. The compact 1.2mm height allows easy integration into height-restricted modules without sacrificing functionality. The horizontal mounting style, combined with SMD soldering, ensures stable mechanical fixation and excellent solder joint reliability, meeting the high-efficiency production demands of automated assembly lines. Tape-and-reel packaging further accommodates high-speed pick-and-place machines, reducing labor costs and improving manufacturing consistency.

4. High-Quality Phosphor Bronze Contacts and Wide Operating Temperature Range

The contacts are made of phosphor bronze, which offers excellent elasticity and conductivity, maintaining stable contact force during repeated insertion and extraction cycles and effectively lowering contact resistance. The operating temperature range of -25°C to +85°C accommodates common temperature variations in consumer and industrial environments, ensuring stable performance in both low winter temperatures and high internal equipment temperatures. The 50V rated voltage satisfies the vast majority of low-voltage signal transmission requirements, suitable for digital signals, control signals, and low-power power supply scenarios.

IV. Typical Application Scenarios

With its ultra-low profile and 0.5mm precision pitch, the KH-FPC0.5-H1.2SMT-10P-QCHF is widely applicable to various space-constrained electronic devices, including:

• Smart Wearables: Smartwatches, wristbands, Bluetooth earphones, and other products with extreme size and weight requirements, connecting displays, sensors, and mainboards.

• Smartphones & Tablets: Interconnection between mainboards and display modules, camera modules, and batteries via flexible cables.

• Display Modules: FPC connections for small-size LCD/OLED screens, enabling high-definition signal transmission.

• Camera Modules: Connections between CMOS sensors and main control boards in mobile phones, security surveillance cameras, and automotive cameras.

• Medical Electronics: Portable monitors, glucose meters, ultrasound probes, and other miniaturized medical devices.

• Industrial Control: Industrial handheld terminals, micro-sensor modules, and internal signal wiring in PLCs.



V. Brand Strength and Quality Assurance

Kinghelm is a well-known brand under Shenzhen Kinghelm Electronics Co., Ltd., with over a decade of experience in the design, manufacturing, sales, and technical services of wireless signal transmission, electronic signal connectors, and interconnection system products. The technical team, which includes graduates from Tsinghua University and the University of Electronic Science and Technology of China, along with outstanding returnees, has deep expertise in microwave RF and precision connector fields. Kinghelm has obtained multiple invention patents, ISO9001 certification, RoHS and REACH environmental compliance certifications, and is currently applying for IATF16949 automotive quality system certification, UL, TUV, and other certifications. The company's product line has expanded from initial Beidou/GPS dual-mode antennas, Bluetooth, WiFi, and other antenna products to include board-to-wire connectors, board-mount sockets, interconnection terminals, signal switches, as well as automotive/motorcycle wiring harnesses, industrial/medical/scientific special cables, and non-standard custom components—three major series offering one-stop interconnection solutions to customers.

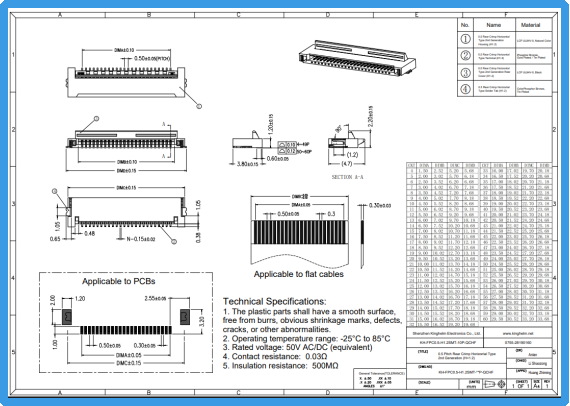

Kinghelm KH-FPC0.5-H1.2SMT-10P-QCHF Specification Sheet

VI. Summary

The Kinghelm KH-FPC0.5-H1.2SMT-10P-QCHF is a high-quality FPC connector integrating 0.5mm precision pitch, 1.2mm ultra-low on-board height, a flip-lock front-insertion rear-flip structure, dual-contact design, and SMD horizontal mounting process. The product excels in structural compactness, assembly convenience, connection stability, and electrical performance. It provides stable and reliable FPC-to-PCB signal transmission solutions for a wide range of space-constrained electronic devices, including smartphones, smart wearables, display modules, camera modules, medical electronics, and industrial control equipment. Against the backdrop of continued growth in the global FPC connector market, this product—backed by its outstanding features and Kinghelm's quality assurance—is undoubtedly a reliable choice for electronic design engineers in high-density, ultra-thin product selection.
