KH-EC043T122000 Vertical-Mount SMD Incremental Rotary Encoder: A Reliable Solution for Human-Machine Interface Control

In electronic product design, selecting the right rotary encoder is essential for achieving smooth user interaction, reliable signal recognition, and efficient manufacturing. Engineers need a component that delivers comfortable operation, stable output, supports automated SMT assembly, and performs reliably in demanding environments such as automotive and industrial applications.

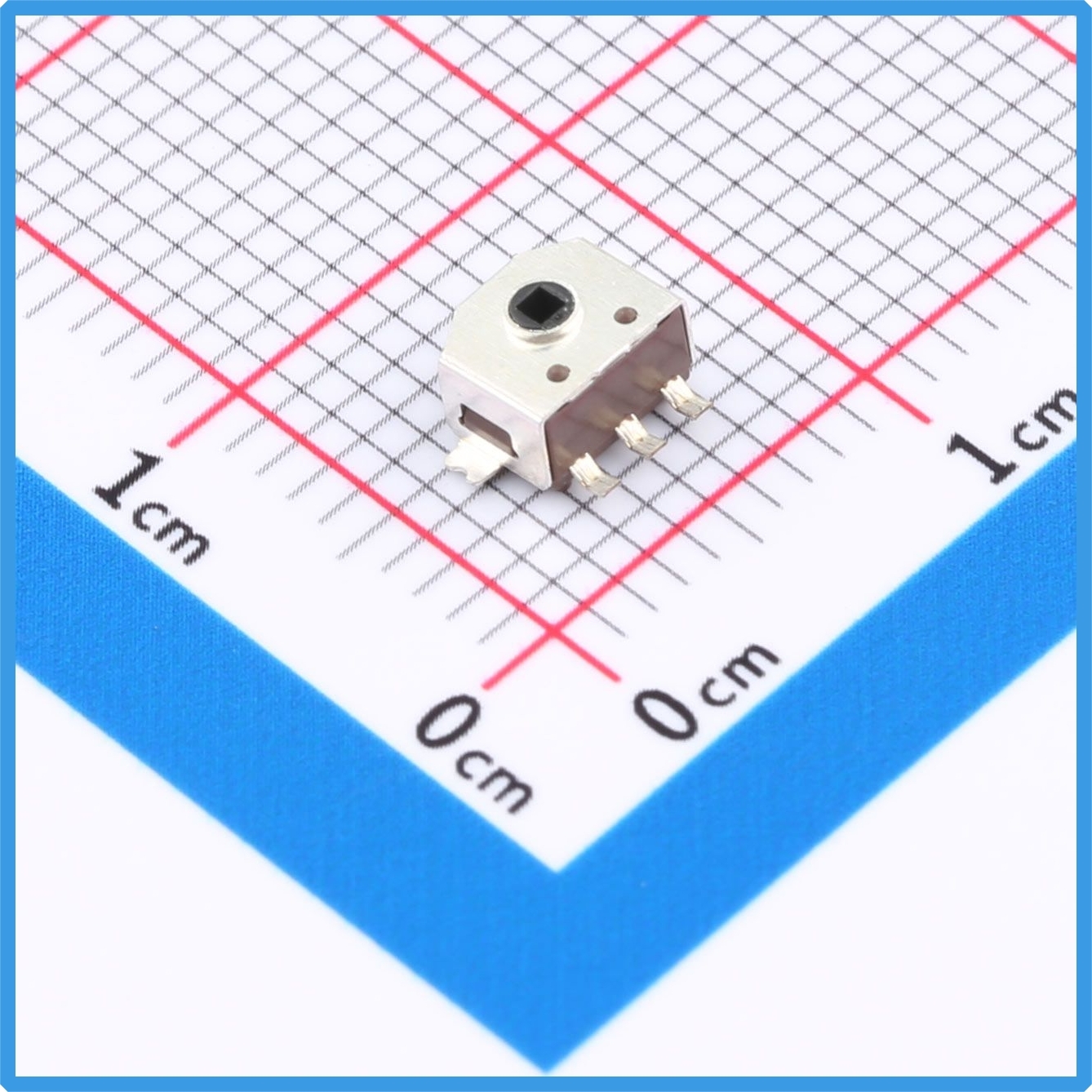

Kinghelm KH-EC043T122000 Product Image

Unlike traditional potentiometers that output analog voltage signals, incremental rotary encoders generate digital pulse signals. The control logic is processed by the MCU, allowing functions and operating modes to be easily adjusted through firmware without changing the hardware design.

The Kinghelm KH-EC043T122000 vertical-mount SMD incremental rotary encoder is designed to meet these requirements, providing a compact, reliable, and production-friendly solution for modern electronic devices.

Key Features

• Incremental rotary encoder with 12 detents and 12 pulses per revolution
• Two-phase quadrature output for accurate direction detection
• Vertical-mount SMD package for automated SMT production
• 5V rated voltage and 500μA rated current
• Low contact resistance ≤200mΩ for stable signal transmission
• Insulation resistance >50MΩ for improved electrical safety
• Wide operating temperature range: -40°C to +85°C

With its standard A/B phase quadrature output, the KH-EC043T122000 converts mechanical rotation into digital pulse signals. The MCU can easily detect rotation speed, step count, and direction (clockwise or counterclockwise) without additional signal processing circuits.

The 12-pulse resolution provides a balanced user experience, offering precise adjustment while maintaining comfortable knob operation. It is ideal for applications such as volume control, parameter adjustment, menu navigation, and mode selection.

Designed for Efficient SMT Manufacturing

The KH-EC043T122000 features a vertical-mount SMD structure, allowing direct placement by SMT equipment and reflow soldering together with other surface-mount components. Compared with traditional through-hole encoders, it eliminates manual insertion and reduces assembly costs while improving production efficiency and consistency.

The bag packaging design also supports convenient storage, transportation, and automated feeding processes, helping manufacturers maintain stable production quality.

Reliable Performance in Various Environments

With a wide operating temperature range of -40°C to +85°C, the KH-EC043T122000 can maintain stable mechanical operation and electrical performance under temperature variations. It is suitable not only for consumer electronics but also for automotive accessories, outdoor equipment, industrial instruments, and other applications requiring long-term reliability.

The encoder is designed to reduce common issues such as signal instability, pulse loss, and inconsistent operation caused by poor contact performance. Its durable mechanical structure ensures stable operation throughout the product lifecycle.

Wide Range of Applications

The KH-EC043T122000 can be widely used in products requiring rotary human-machine interaction, including:

• Smart home control panels
• Automotive control accessories
• Audio equipment and media players
• Testing and measurement instruments
• Communication devices
• Small household appliances

Whether used in consumer electronics or industrial equipment, the KH-EC043T122000 provides a practical balance of performance, reliability, and manufacturing efficiency.

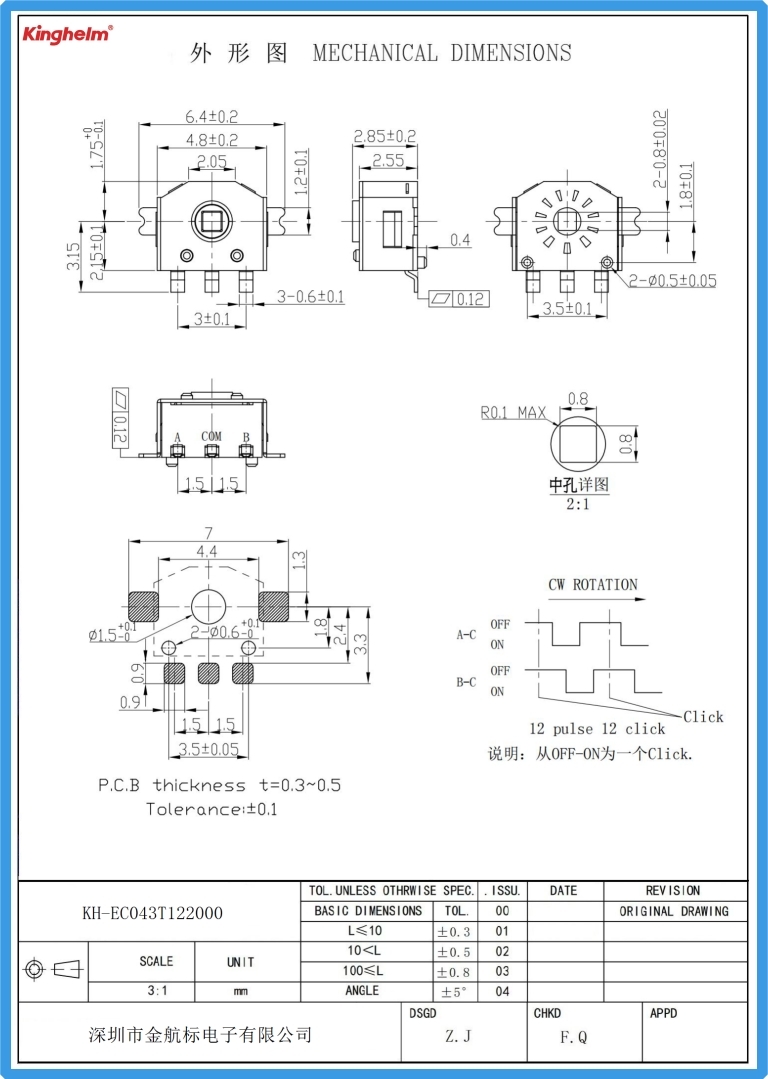

Kinghelm KH-EC043T122000 Specification

A Practical Choice for Modern Electronic Design

The KH-EC043T122000 is not designed for high-speed motor measurement applications, but for reliable user interface control. As an incremental encoder, it does not store absolute position after power loss; instead, the system determines the operating state through software after startup, which is a common design approach in electronic products.

By combining stable signal output, SMT compatibility, wide temperature capability, and flexible MCU-based control, the KH-EC043T122000 offers an efficient and cost-effective solution for electronic products requiring rotary control functions.
