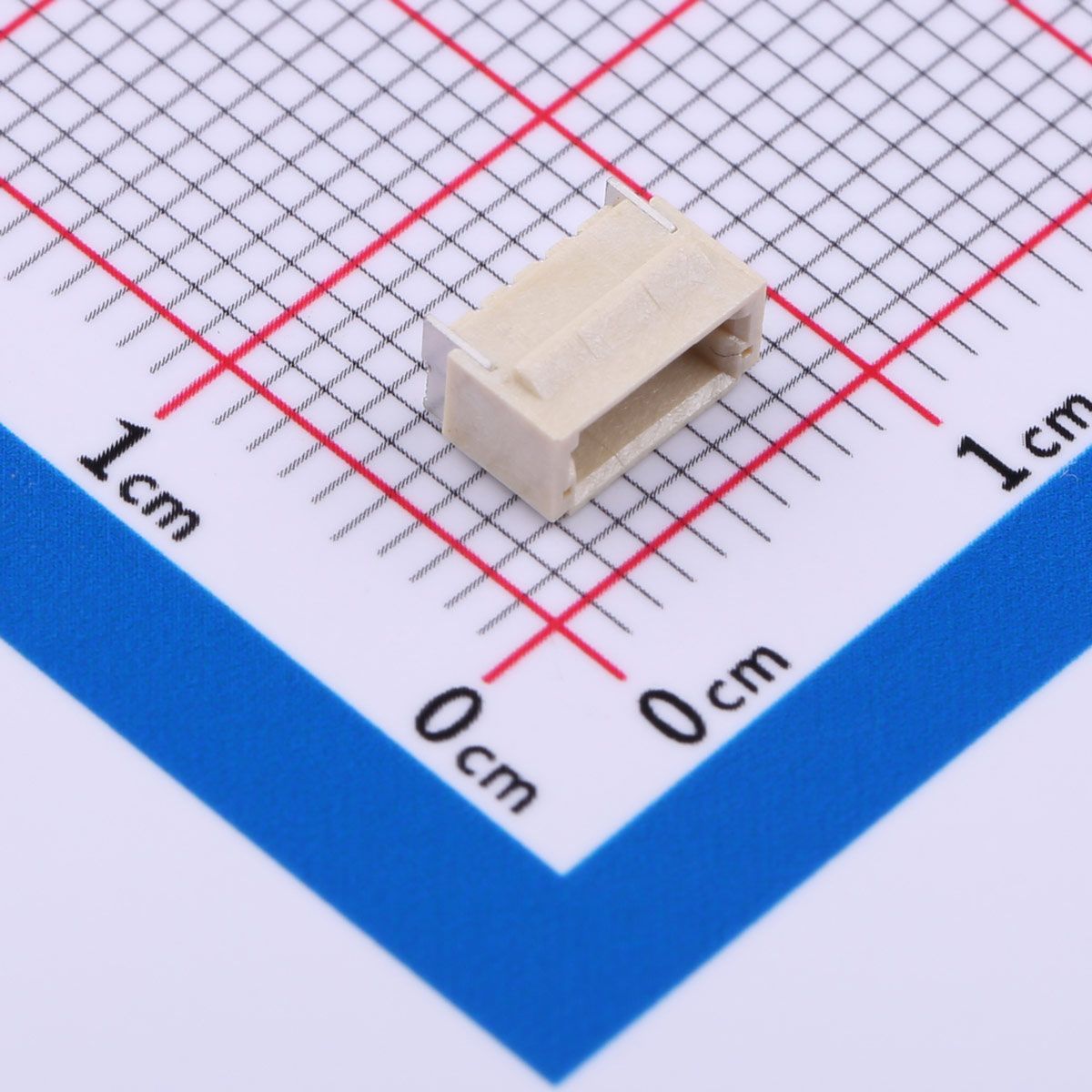

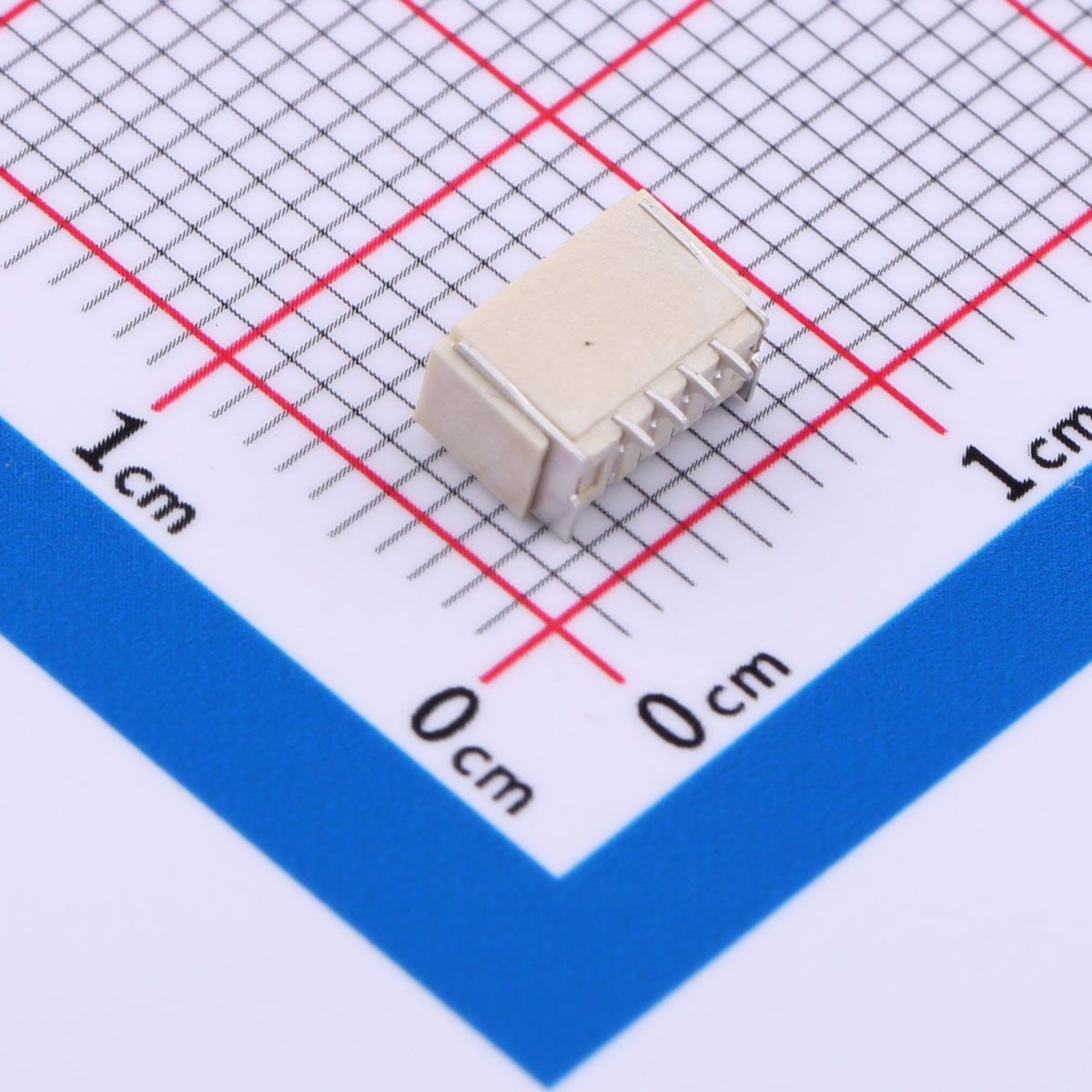

KH-A1000RSL-4P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x4 positions
● Horizontal mount (right-angle) SMD design
● Compact and low-profile construction
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Ideal for tight PCB layouts with limited space
● Suitable for small, low-profile applications
● Stable and reliable electrical connection
● Compatible with automated surface-mount technology (SMT) processes
● Efficient for low-power signal and power transmission
● Low-profile design for height-sensitive products
● Cost-effective for minimal pin count interconnects
Product Applications
● Consumer electronics
● Wearable devices
● IoT modules
● Mobile communication equipment
● Smart home products
● Embedded systems
● Low-voltage applications
