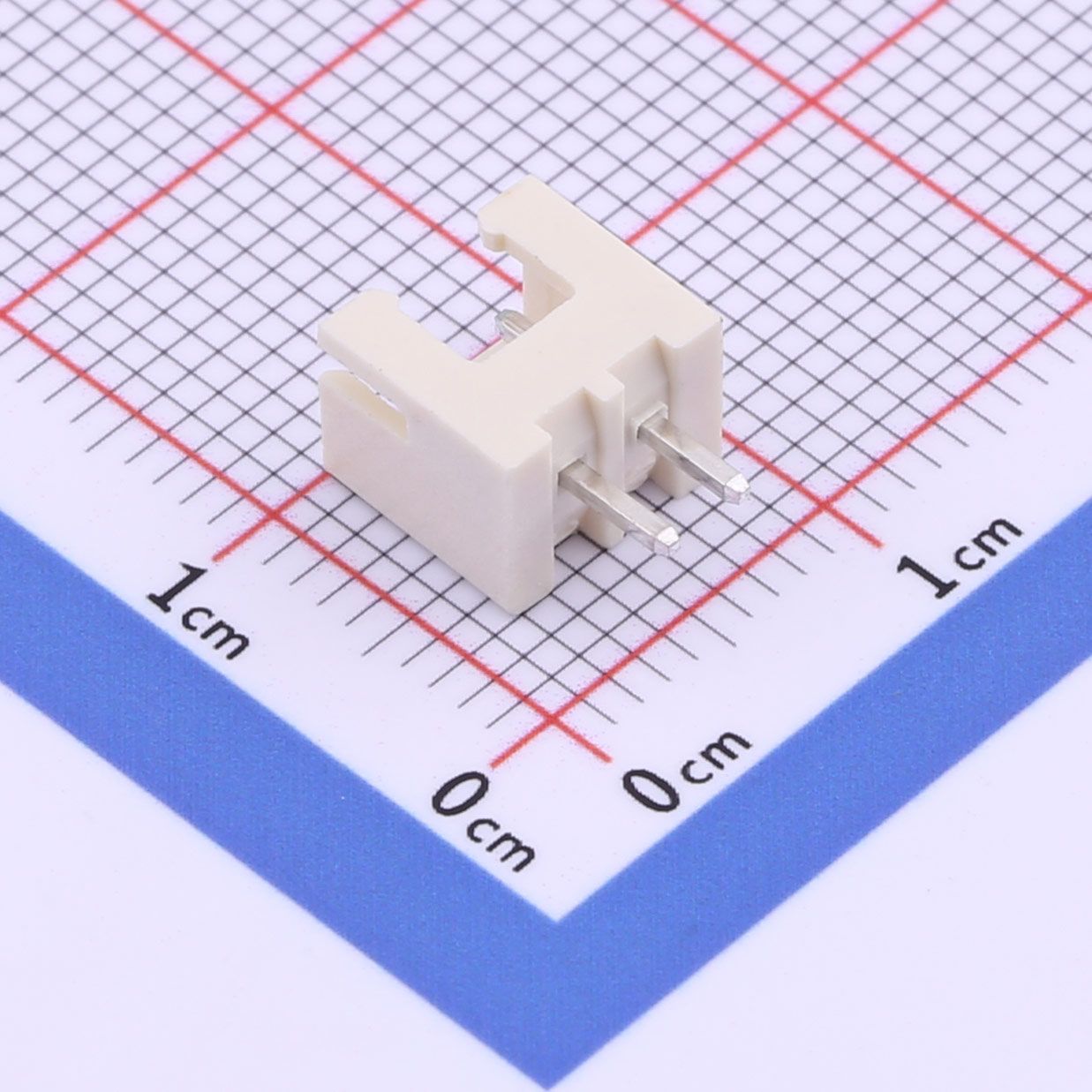

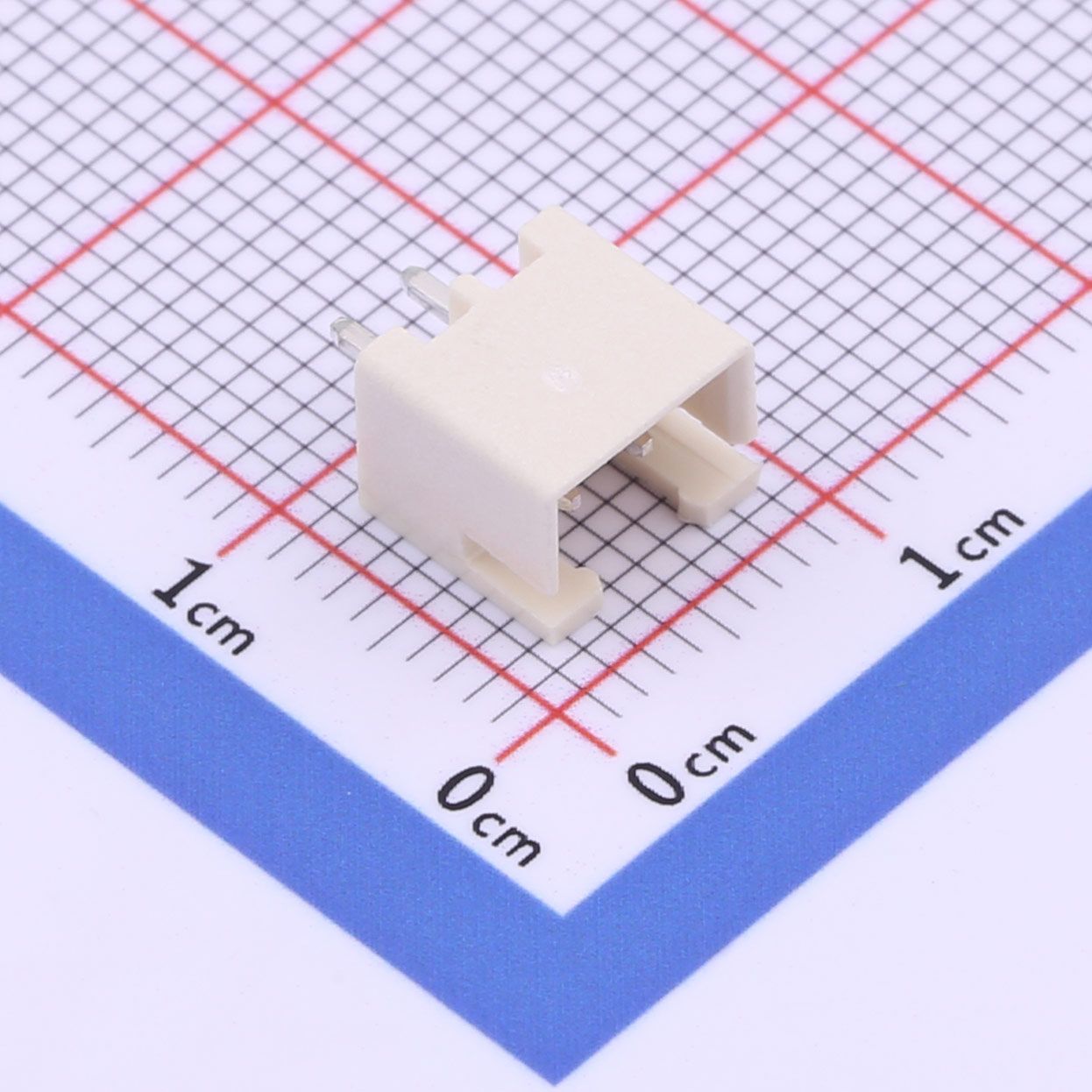

KH-2501GW-02A-Z
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch connector
● 2 positions single row
● Straight PCB mounting
● 3A 250V AC/DC supported
● Compatible with XH system
Product Benefits
● Ultra-compact design
● Excellent for small circuits
● Easy and secure mating
● Strong contact reliability
● Withstands heat and vibration
Product Applications
● Microcontroller boards
● LED indicators
● Small IoT devices
● Testing tools
● Compact electronic modules
